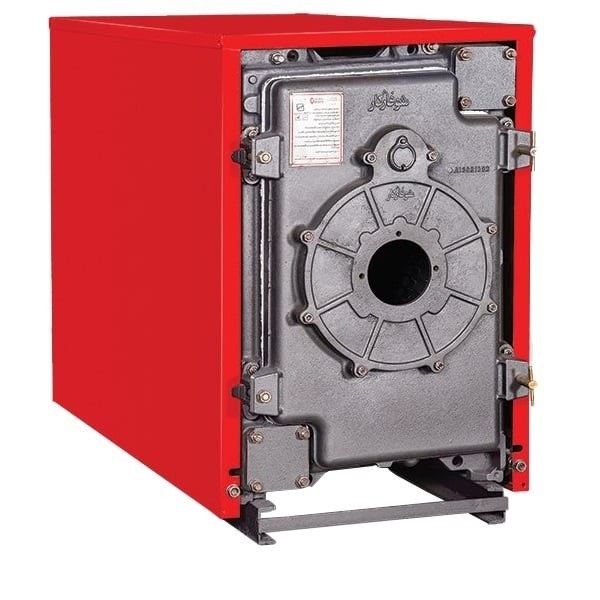

Chauffagekar Cast Iron Boiler

Chauffagekar company is one of the best and most well-known brands producing all kinds of cast iron boilers for a motor room. If you are checking and choosing a cast iron boiler for your project or building, stay with us as we introduce different types, models, capacities, how to choose, dimensions, working pressure, and the prices of Chauffagekar cast iron boilers.

Chauffagekar Cast Iron Boiler Experts' Buying Guide and Price List

Chauffagekar company started its activity in the field of production of facility equipment in Iran in the 1350s, and today it has been able to meet many needs of the Iranian market in the field of spa boilers and cast iron boilers.

Chauffagekar company has also produced heating packages, panel radiators, and cast iron fireplaces in recent years, but the main reputation of this company, which uses local experts and world-class knowledge, is due to the production of cast iron boilers.

Different Models and Capacities of Chauffagekar Cast Iron Boilers

Chauffagekar cast iron boilers, based on their capacity, are the first requirement of the central heating system of residential and office buildings, medical centers, etc., with different areas, to be installed in engine houses. These boilers are produced and supplied in Super 300, Super 400, Solar 300, Solar 400, Super Hit 300, 1300 Star, and Turbo models.

The Superior Quality of Chauffagekar Cast Iron Boilers

Chauffagekar, with more than 40 years of experience in the production of cast iron boilers, is not only known as the largest producer of this product in Iran but also exports its products to countries such as Spain, Greece, Romania, Turkey, Iraq, Lebanon, and Jordan. and Central Asian countries (the Caucasus region) have exported.

DamaTajhiz HVAC Co.; Engineering, Manufacturing, and Trading Company in the Middle East Since 2004
Review, Selection, and Pricing of HVAC Equipment

Chauffagekar Cast Iron Boiler

Chauffagekar Cast Iron Boiler Technical Specification Table and Price List

The table below provides technical information and the best prices for Solar, Super, Turbo, and Super-Heat cast iron boilers from Chauffagekar:

Model Capacity
(Kcal/hr)
Number of Fins Burner Mount Diameter
(mm)
Dimensions
(LxW×H)
(mm)
Price
(USD)
S200-4 33.500 4 110 840x510x640 Inquiry
S200-5 42.000 5 110 840x510x740 Inquiry
S200-6 50.500 6 110 840x510x840 Inquiry
S200-7 59.000 7 110 840x510x940 Inquiry
S200-8 67.500 8 110 840x510x1040 Inquiry

  • Super 300 Cast Iron Boiler by Shoufarshkar
Model Capacity
(Kcal/hr)
Number of Sections Burner Mounting Diameter
(mm)
Dimensions
(L×W×H)
(mm)
Price
(USD)
S300-5 43.700 5 110 758x443x682 282.891
S300-6 53.600 6 110 758x443x764 328.057
S300-7 63.400 7 110 758x443x846 376.0154
S300-8 73.300 8 110 758x443x928 424.102
S300-9 83.100 9 110 758x443x1010 470.110

  • Super 400 Cast Iron Boiler by Soufagehkar
Model Capacity
(Kcal/hr)
Number of Sections Burner Mounting Diameter
(mm)
Dimensions
(L×W×H)
(mm)
Price
(USD)
S400-5 118.700 5 127 774x630x918 668.863
S400-6 146.200 6 127 774x630x1035 789.668
S400-7 174.500 7 127 774x630x1152 913.267
S400-8 202.100 8 127 774x630x1269 1036.865
S400-9 229.600 9 127 774x630x1386 1157.671
S400-10 258.000 10 127 774x630x1503 1278.598
S400-11 285.500 11 127 774x630x1620 1402.075
S400-12 313.800 12 127 774x630x1737 1523.123

  • Super 500 Cast Iron Boiler - Soufagekar
Model Capacity
(Kcal/hr)
Number of Sections Burner Installation Diameter
(mm)
Dimensions
(L×W×H)
(mm)
Price
(USD)
F305 139.000 5 145 880x750x1043 Inquiry
F306 185.000 6 145 880x750x1173 Inquiry
F307 225.000 7 155 880x750x1303 Inquiry
F308 265.000 8 155 880x750x1433 Inquiry
F309 304.000 9 175 880x750x1563 Inquiry

  • Solar Cast Iron Boiler 300 Shofajkhar
Model Capacity
(Kcal/hr)
Number of Fins Burner Installation Diameter
(mm)
Dimensions
(Length x Width x Height)
(mm)
Price
(USD)
Solar
300-5
43.000 5 110 802x460x690 369.094
Solar
300-5
51.000 6 110 802x460x790 427.615
Solar
300-7
61.000 7 110 802x460x890 481.158
Solar
300-8
70.000 8 110 802x460x990 534.580
Solar
300-9
79.000 9 110 802x460x1090 590.551
Solar
300-10
89.000 10 110 802x460x1190 643.973

  • Solar Cast Iron Boiler 400 by Shofazhkar
Model Capacity
(Kcal/hr)
Number of Fins Burner Installation Hole Diameter
(mm)
Dimensions
(Length x Width x Height)
(mm)
Price
(USD)
Solar
400-7
91.000 7 140 1056x630x1015 708.443
Solar
400-7
113.000 8 140 1056x630x1135 783.719
Solar
400-9
134.000 9 140 1056x630x1255 863.366
Solar
400-10
156.000 10 140 1056x630x1375 938.703
Solar
400-11
177.000 11 140 1056x630x1495 1018.410
Solar
400-12
199.000 12 140 1056x630x1615 1102.549
Solar
400-13
221.000 13 140 1056x630x1735 1171.633

  • Cast Iron Turbo Boiler by Shoafajkar
Model Capacity
(Kcal/hr)
Number of Fins Burner Installation Diameter
(mm)
Dimensions
(Length x Width x Height)
(mm)
Price
(USD)
Turbo-8 243.000 8 155 1121x725x1561 1300.695
Turbo-9 289.000 9 155 1121x725x1714 1437.527
Turbo-10 334.000 10 155 1121x725x1867 1599.006
Turbo-11 379.000 11 155 1121x725x2020 1745.916
Turbo-12 426.000 12 155 1121x725x2173 1894.646
Turbo-13 461.000 13 185 1121x725x2326 2042.163
Turbo-14 515.000 14 185 1121x725x2479 2190.529
Turbo-15 560.000 15 185 1121x725x2632 2339.624
  • Super Heat 1300 Cast Iron Boiler by Shoafazhkar
Model Capacity
(Kcal/hr)
Number of Fins Diameter of Burner Installation Opening
(mm)
Dimensions
(Length x Width x Height)
(mm)
Price
(USD)
super 1300-7 494.000 7 180 1200x900x1630 1994.817
super 1300-8 556.000 8 180 1200x900x1790 2267.991
super 1300-9 617.000 9 180 1200x900x1950 2541.169
super 1300-10 679.000 10 180 1200x900x2110 2814.34
super 1300-11 741.000 11 180 1200x900x2260 3088.256
super 1300-12 803.000 12 245 1200x900x2420 3361.070
super 1300-13 865.000 13 245 1200x900x2580 3633.885
super 1300-14 928.000 14 245 1200x900x2730 3909.253
super 1300-15 990.000 15 245 1200x900x2890 4182.064
super 1300-16 1.052.000 16 245 1200x900x3050 4454.635
super 1300-17 1.113.000 17 245 1200x900x3200 4729.028
super 1300-18 1.174.000 18 245 1200x900x3360 5002.935
super 1300-19 1.237.000 19 245 1200x900x3520 5275.629
super 1300-20 1.300.000 20 245 1200x900x3680 5548.565

The Minimum Required Equipment for a Simple Engine Room

The minimum equipment needed for a simple engine room are as follows:

  1. The central heating boiler of the engine room (cast iron boiler or steel boiler?)
  2. Augustat immersed in the pot
  3. Manometer (installation on the pot)
  4. Burner (type of fuel?)
  5. Gas hose and filter with the correct size (or diesel nozzle and filter for a diesel burner)
  6. Hot water tank (coil or double wall?)
  7. Temperature and pressure assurance "1" (installation on the spa source)
  8. Linear circulator pump (usually 2 inches HV or 2 inches AA or 2 inches A6 or 2 inches A7 or ... based on the size of the infrastructure)
  9. Wall Augustat (function command to the circulator pump)
  10.  Return pump (usually linear pump "1)
  11. One-inch spa pump return flange
  12. Expansion tank  (galvanized or aluminum?)
  13. Expansion tank floater (with a metal or plastic ball?)
  14. Electrical panel of the engine house (at least 5 keys)

Buying Chauffagekar Cast Iron Boilers

The cast iron boiler was introduced as a cost-effective option decades ago for residential uses with small and medium areas to supply their hot water.

Before buying, you should keep in mind that the capacity of Chauffagekar cast iron boilers changes based on the number of blades in the middle, front blade, and back blade. To easily choose and buy a cast iron heating boiler, you must first determine the required capacity, dimensions, and working pressure.

To obtain this important information, you can refer to the site of the specialized collection of Damatajhiz or get advice from Damatajhiz consultants in a completely specialized way and experience the best purchase with ease of selection.

The Price of Chauffagekar Cast Iron Boilers

Since Chauffagekar manufactures and markets its cast iron boilers with a variety of models, capacities, working pressure, etc., you can refer to the DamaTajhiz HVAC store, all of which have up-to-date prices and discounts desired by consumers. These prices include: Experience the easiest purchase, so these prices also include the guarantee of the best price.
