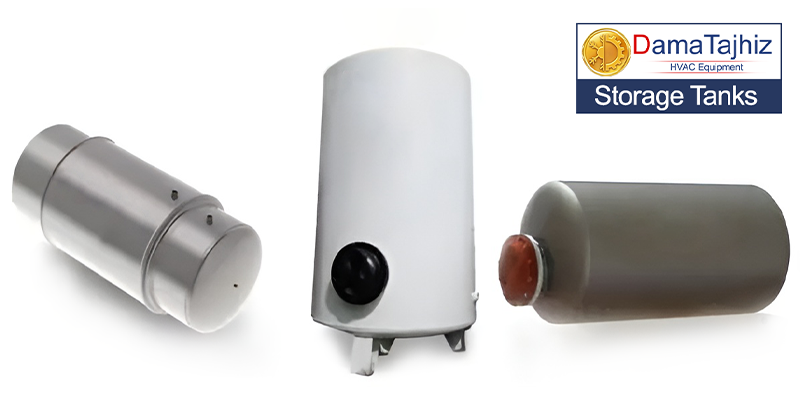

DamaTajhiz Storage Tank

DamaTajhiz storage tanks have been manufactured and supplied in different models such as coiled storage tanks, double-wall storage tanks, cold water storage tanks, etc, since 2004 in the Middle East and West Asia with fast delivery times to provide and store hot water for various applications.

In the following content technical specifications, capacity determination, dimensions, sale terms, buying guide, and best price of DamaTajhiz storage tanks have been provided, so keep on reading.

DamaTajhiz Storage Tank Experts' Buying Guide and Price List

One of the most popular and well-known products of DamaTajhiz HVAC Co. is the DamaTajhiz storage tank which has many varieties such as coiled storage tanks, double-wall storage tanks, expansion storage tanks, cold water storage tanks, etc.

DamaTajhiz HVAC store has provided the experience of a safe and smart purchase with fast delivery time, the possibility of browsing and comparing prices and technical specifications, along with accurate images, sale terms, and technical advice by the experts.

In addition to providing pre-purchase consulting services, DamaTajhiz HVAC has also provided the opportunity to visit the manufacturing process for customers in the Middle East and West Asia.

DamaTajhiz Coiled & Double-Wall Storage Tanks

DamaTajhiz coiled storage tanks are divided into two categories according to their placement: vertical and horizontal, which should be selected according to the available space in the engine room.

Keep in mind that in terms of efficiency and use, there is not much difference between horizontal and vertical coiled tanks, and vertical coiled tanks are more common due to their smaller space requirement.

The capacity of coiled storage tanks starts from 300 liters to larger capacities of 8,000 or even 10,000 liters, which should be calculated and selected based on your needs.

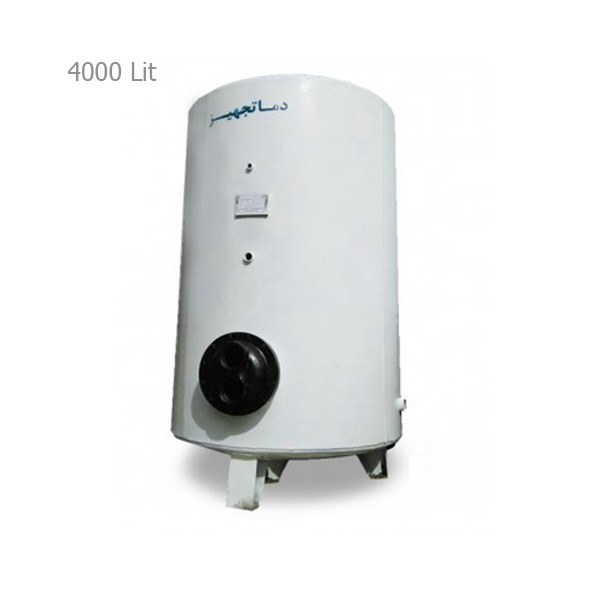

Vertical Coiled Storage Tank

Vertical coiled tanks are used to store and supply sanitary hot water in the engine rooms of residential, offices, hotels, hospitals, factories, etc. Their coils are usually installed horizontally at the bottom of the tank.

Horizontal coiled Storage Tanks

When installing a horizontal coiled tank, the appropriate base and holder are selected and implemented, so before buying one, the installation location must be accurately measured and calculated by an expert.

Note: All horizontal coiled tanks with a capacity of more than 1500 liters must have an entrance door for future repairs.

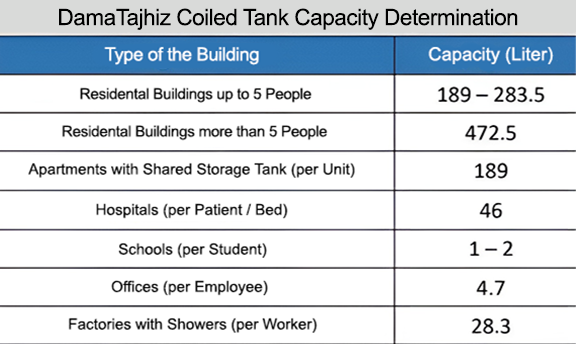

DamaTajhiz Coiled Tank Capacity Determination

To determine the capacity of a coiled or double-wall storage tank required for the building consider the number of units, building use, required water, concurrency coefficient, and consumption coefficient, approximately between 100 and 200 liters for each residential unit.

DamaTajhiz Coiled & Double-Wall Storage Tanks Technical Information & Specifications

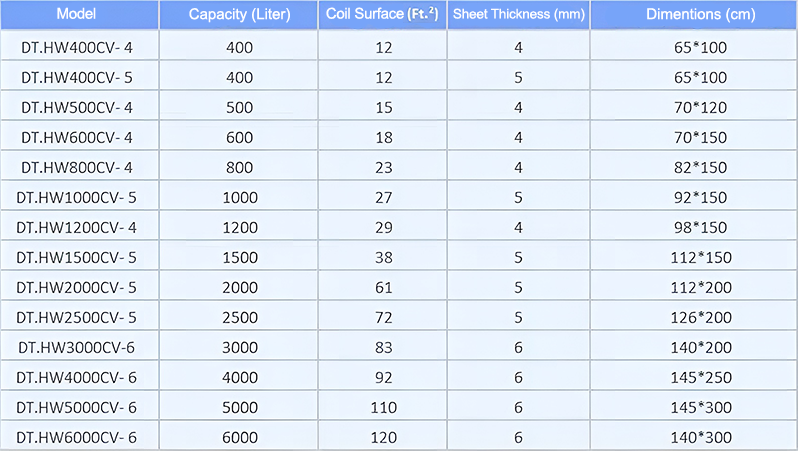

DamaTajhiz Vertical Coiled Tank with Galvanized Steel Sheet Technical Information and Specifications:

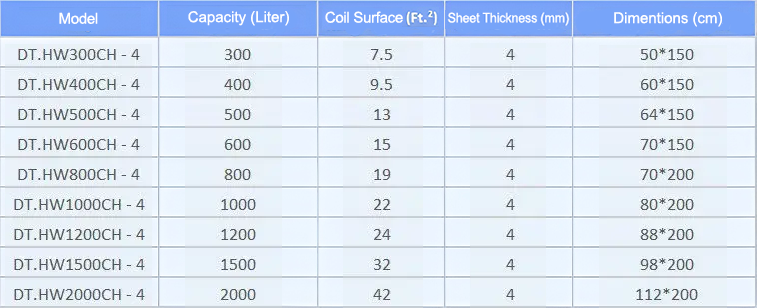

DamaTajhiz Horizontal Coiled Tank with Galvanized Steel Sheet Technical Information and Specifications:

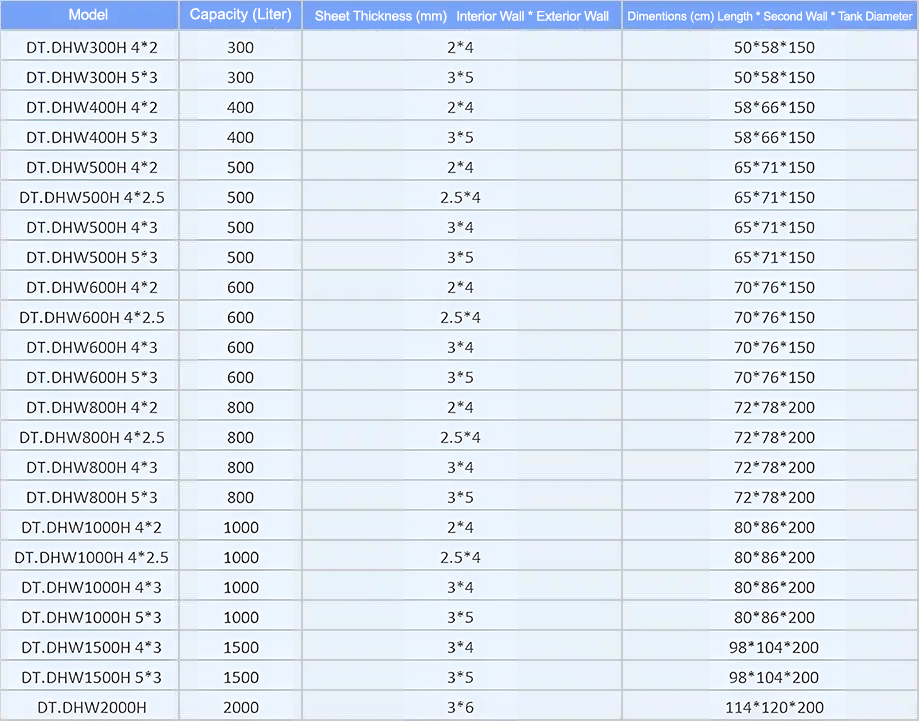

DamaTajhiz Double-Wall Coiled Tank with Galvanized Steel Sheet Technical Information and Specifications:

Factors to Consider When Buying a DamaTajhiz Coiled Storage Tank

There are 4 main factors to keep in mind when buying a DamaTajhiz storage tank:

1. The minimum height required between the top of the coiled tank and the engine room ceiling is 30 centimeters for piping operations and installing a safety valve.


2. When purchasing double-wall, coiled, fuel, water, and expansion tanks, in addition to the capacity, pay attention to the sheet material, final dimensions, sheet thickness, coil thermal surface, and warranty of the device.


3. Before buying a DamaTajhiz coiled tank, make sure that it can pass through the engine room door and has a suitable dimensional space for its installation and operation. If a storage tank with other dimensions is required, determine its dimensions before ordering.


4. When buying a vertical coiled tank, be sure to pay attention to the height of the base and the possibility of placing the tank (or the base).



Implementation Tip:

In projects where the engine room is located on the roof of the building, to prevent air from entering the hot water outlet in vertical coiled tanks, it is better to install the hot water outlet pipe bushing from the tank (instead of the upper lens) on the cylinder and slightly below the tank weld.

Also, take a branch from the upper bushing and install a diaphragm that is responsible for collecting excess air from the tank. Because safety valves get dirty after a while and won't be able to remove excess air properly.

DamaTajhiz Storage Tank Features & Specifications

DamaTajhiz storage tanks come with a variety of features and specifications such as:

• The body of all DamaTajhiz double-wall coiled tanks is edged and not round.


• The thickness of the hot water coils is usually 0.7 mm, and the thickness of the steam coils is usually 0.9 mm.


• Hot water or steam coils installed in DamaTajhiz coiled tanks are produced and supplied according to the standards with appropriate thicknesses.


• ST37 hot-dip galvanized steel sheets with sufficient thickness and proper galvanization with the best quality, especially for high-pressure tanks.


• It is possible to implement an entrance door for all DamaTajhiz vertical and horizontal coiled tanks for capacities of 1500 liters and higher if requested, which will be included in your invoice.


• After passing all the manufacturing steps, all the production resources of the equipment enter the QC stage, and then with the approval of the quality supervisor, the technical specifications plate is installed on the product, and it enters the loading and shipping stage.


• The thickness of the body sheet of DamaTajhiz storage tanks can be manufactured up to a thickness of 10 mm and up to 6 bar of working pressure. Obviously, in the manufacture and welding process of DamaTajhiz storage tanks with high body thickness, standard welding engineering methods are used.


• In high-capacity coiled tanks, the welding area is covered with a suitable layer of food-grade cold zinc or epoxy paint.



DamaTajhiz HVAC Distinctive Services

DamaTajhiz HVAC Co. has so many distinctive services such as:

• If the project requires an equipment installation team, DamaTajhiz has its installation team that will be dispatched to the project site if requested.



• Providing engineering consulting services to determine the required capacity for all DamaTajhiz storage tanks is possible and takes place soon after your request.



• DamaTajhiz storage tanks can be shipped globally, especially in Middle Eastern countries; therefore, after making a phone call, sending a request or registering your order through the website and coordinating with the DamaTajhiz sales team, you can receive your desired product on-site.



• The shipping cost of the goods is the responsibility of the esteemed buyer and is calculated and settled according to the freight tariff.



• DamaTajhiz HVAC can produce all your custom orders in compliance with all engineering principles and technical standards, and after construction, with the approval of the quality supervisor.



Buying DamaTajhiz Storage Tanks

To buy DamaTajhiz double-wall and coiled storage tanks in all models and capacities, you must first determine the desired capacity, dimensions, material, and working pressure of the tank.

Here at the DamaTajhiz HVAC store, technical information of dozens of models of DamaTajhiz storage tanks with original warranties has been presented for you to enjoy an optimal and smart shopping experience.

The Price of DamaTajhiz Storage Tanks

You can browse and compare all types of DamaTajhiz storage tanks to choose the right product that suits your needs the best.

The price of DamaTajhiz storage tanks varies according to the variety of models, types, and capacities; it should be noted that all DamaTajhiz branded storage tanks provided in this store have reasonable prices and desired discounts have already been included.

Factors to Keep in Mind After Buying a DamaTajhiz Storage Tank

There are several factors that we highly advise you to keep in mind after buying any of the DamaTajhiz storage tanks:

1. Installing a suitable vent pipe for all diesel storage tanks is necessary.


2. Extending the water head pipe from the open expansion storage on the roof to the engine room is strongly recommended.


3. Installation of a safety valve (temperature and pressure) is mandatory for all storage tanks that will be placed in the engine room.


4. Pay enough attention to the dimensions of the storage tank and the possibility of passing from the engine room door to the installation site.


5. Epoxy paint with a thickness of 140 microns or cold zinc (even if galvanized sheets) is mandatory after the welding stage for storage tanks with capacities of 1500 liters and higher.
