DamaTajhiz Fan Coil Unit

If you want to supply all types of ceiling shortcoming fan coil units, concealed fan coil units, ducted fan coil units, floor-mounted fan coil units and wall-mounted fan coil units with the best quality and balanced and affordable prices in the shortest possible time, you have come to the right place. Note that our sales experts in Damatajhiz Engineering HVAC group are always ready to answer your questions.
Please get a satisfactory shopping experience from this dynamic collection by reading the presented items, learning more about the technical specifications, capacities, and special prices of all types of Damatajhiz fan coils, and contacting the air conditioning sales experts in Damatajhiz Engineering HVAC group.

Damatajhiz HVAC INC is one of the most reliable and largest manufacturers of various air conditioning equipment with the best quality in Iran and the Middle East. Since 2004 has produced a variety of products such as ceiling fan coils, concealed ceiling fan coil units, ducted fan coil units, floor-mounted fan coil units, ducted split, cooling towers, mini chillers, water cooled chillers, air cooled chiller, air washers, water and air compression chillers and Zent, all kinds of industrial water coolers, etc. in various capacities, with a golden guarantee, reasonable price and relying on the knowledge and expertise of colleagues who They have completed all the training courses inside and outside the country. Visiting the factory and the production line of products, manufacture, and supply is possible.

A guide to choosing and buying the Damatajhiz fan coil units

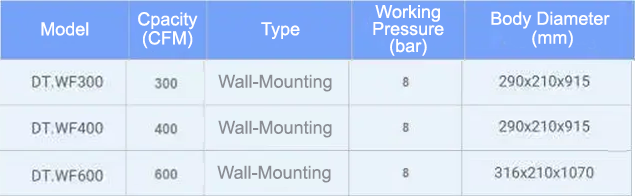

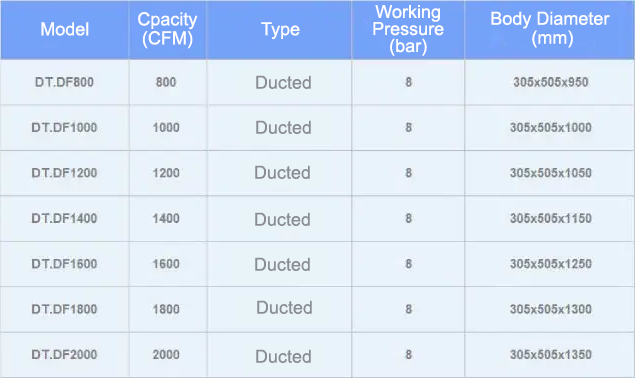

Damatajhiz fan coil units are produced and supplied in various types of ceiling shortcoming fan coil units, concealed fan coil units, ducted fan coil units, floor-mounted fan coil units and wall-mounted fan coil units in different capacities.
The ventilation fan of all the fan coil models of the temperature equipment (according to the order) is made of metal or polyamide with fibers, with a temperature resistance of up to 120 degrees Celsius.
One of the common features of both fan models used in heating fan coils is their high quality and very low sound production.

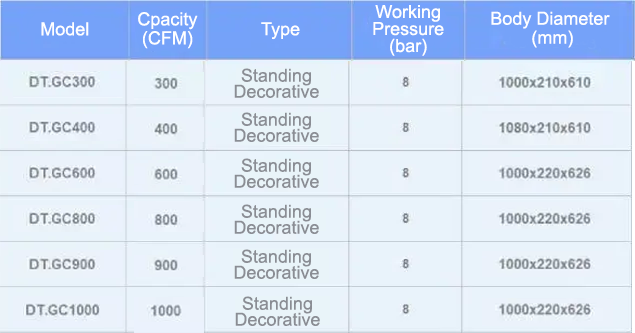

FLOOR MOUNTED FAN COIL UNIT

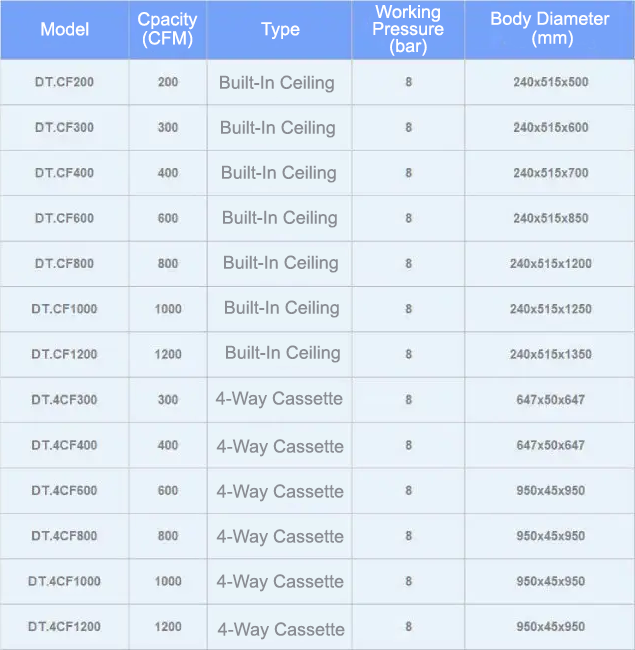

ceiling shortcoming fan coil units

Technical points of installation and implementation of the Damatajhiz fan coil units

  1. One of the important parameters and tips for having optimal cooling and heating in the fan coil is choosing the appropriate and correct size of the return and return pipes to the device, which should be chosen by consultants and engineers of building facilities and by performing engineering calculations.
  2. It is necessary to install a flow switch in the path of the evaporator child water towards the cold water coil of the air conditioning equipment (such as fan coils and air conditioners) to stop the chiller when the cooling circuit circulator pumps are turned off.
  3. Due to the greater heating ability of fan coils than radiators of the same size, in old buildings (if the building needs to be renovated and renovated), it is possible to install a fan coil instead of a radiator (only for heating) if the pipes have been removed from the floor of the unit.
  4. Due to the importance of ventilation fan balance in the performance of fan coil units and its direct relationship with the lifespan of motor bearings, as well as to maintain the dynamic balance of the ventilation fan, it is recommended to install all types of fan coils in a completely horizontal and aligned location.
  5. Considering the important issue of service and maintenance in air conditioning equipment, installing the shut-off valve for the inlet and outlet water flow from the fan coils along with the relevant tube nut (the same size as the diameter of the branch pipe) is necessary.
  6. In order to collect the water resulting from air moisture distillation on the coil of fan coils in the summer season, it is necessary to install a ½ inch drain pipe from the tray under the coil to the place of draining this water for each fan coil.

Important points when buying the Damatajhiz fan coil units

The working pressure of the temperature equipment's ceiling and ground fan coil units is based on the working pressure (8 bar/800 Kilopascal ) and is suitable for buildings up to 20 floors. (Note: For buildings with more than 20 floors, it is possible to make custom fan coil devices with higher working pressure.)
Before ordering different types of heating coil fans, determine whether the water inlet and outlet of the coil is left or right, the fan type, and the air return type as "suction from below" or "suction from the back" of the device.

Buying the Damatajhiz fan coil units

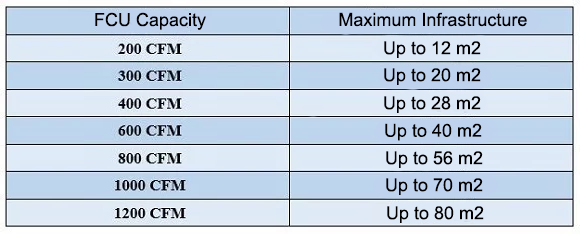

The first step to buying a Damatajhiz fan coil unit is to pay attention to the capacity, cooling, and thermal load of the desired room or space and then the device type and dimensions of the installation location. Because heating fan coils are produced and supplied in different types with different ventilation capacities, and before purchasing a heating fan coil, you should consider the size and use of your environment so that you can make the correct choice in the model and Have the ventilation capacity of the fan coil at a reasonable price. Then examine the ventilation fan, coil, fan coil working pressure, etc.

The price of the Damatajhiz fan coil units

The temperature fan coil price differs based on capacity and technical specifications. In order to easily choose and purchase the heating fan coil, you must first determine the required capacity.
On the site of the specialized collection of thermal equipment, technical information and guaranteed prices of all types of thermal equipment fan coils with original warranty have been provided so that you, dear ones, can enjoy the good feeling of an optimal and smart purchase.
It should be noted that all the fan coils presented on the site of the Damatajhiz specialized collection have a product ID and a suitable price, and the discounts desired by consumers have been included in these prices.

Purchase order and warranty of the fan coil of the heating equipment

In the reference and specialized collection of Damatajhiz, technical information and guaranteed prices for all types of Damatajhiz fan coils with a golden guarantee have been provided so that you, dear ones, can enjoy the good feeling of an optimal and smart purchase.
To view and learn about the prices, warranty, and technical specifications of the types of ground, ceiling, and channel fan coils of Damatajhiz, click on the "Technical Specifications" tab on the page of each of the following products.
All heat equipment fan coils have three-speed coils, an 18-month golden warranty, and a 20-year after-sales service.

The list of some customers and projects of different types of DamaTajhiz Fan Coil Units

  • Project of Mr. Ezzati Far: 1000cfm ducted fan coil unit
  • Mr. Yavari's project: 2 ducted fan coil units 2000cfmt
  • The project of Mr. Nazeri Moghadam: Ceiling fan coil unit 600cfm
  • Mr. Zamani's project: 2 decorative ground fan coils 600cfm, heating equipment
  • Mr. Javaheri's project: 2 decorative floor-mounted fan coil units 300cfm
  • Mr. Il Mohammadi's project: 2 decorative floor-mounted FCUs 800cfm
  • Mr. Tahbaz's project: 2 Ceiling fan coil units 400cfm and 800cfm
  • Mr. Rajabi's project: 1800cfm ducted FCU
  • Tabriz Petroleum Refining Company: 20 Ceiling fan coil units 300cfm, 400cfm and 600cfm
  • Sepand Project Binab Company: 3 ceiling fan coil units 400cfm and 3 floor-mounted fan coil
  • units 300cfm
  • Mr. Amani's project: 6 ducted fan coil units 800cfm
  • Mr. Ameri's project: 2000cfm ducted fan coil unit
  • Mr. Babaei's project: decorative floor-mounted fan coil unit 200cfm
  • Mr. Hedayatnejad's project: decorative floor-mounted fan coil 1000cfm
  • Mr. Torabi: 8 Ceiling fan coil units
  • Iran Partners Company: 16 floor-mounted fan coil units - Tehran
  • Tehran Bavar Company: Ducted fan coil units 1600 cfm, temperature equipment - Tehran
  • Aparan Chemical Company: Ducted fan coil units 2000 cfm - Tehran
  • Amol construction project: 150 Ceiling shortcomings fan coil units- Amol
  • Neko Rodhen clinic: 20 ceiling fan coils built-in Demathezis - Rodhen
  • EBP Company: 20 floor-mounted fan coil units-Tehran
  • Mr. Monfared : Ducted fan coil units 1800 cfm - Tehran
  • Mehestan complex, district 22: 26 Ceiling shortcomings fan coil units - Tehran
  • Mr. Mardani: 36 floor-mounted fan coil units,- Darya St, Tehran
  • Aria Yard Khorasan Company: 12 decorative ground fan coils 300 cfm, - North Khorasan

"Buy with peace of mind from DamaTajhiz."

بیلبورد دماتجهیز

کارت گارانتی طلایی دماتجهیز

Exhibition of facilities on DamaTajhiz Company
The presence of DamaTajhiz in international exhibitions of construction facilities and cooling and heating systems

Order from you, follow up from us

The specialized group of Damatheheez has an electronic trust symbol and started its activity in 2013 in the head office of Tehran.

1CFM = 28.32 L/min
1K Cal = 4 BTU

Active filters

DamaTajhiz Cabin-less Ceiling Fan Coil Unit DT.CFC300

DamaTajhiz Concealed Ceiling Fan Coil Unit DT.CFC200

  1. Small volume, light, and very quiet type
  2. Special design with small dimensions for optimal placement in the false ceiling (low height)
  3. 4-layer aluminum filter and anti-fungal with the ability to wash, install and replace easily
  4. Proper and integrated insulation (seamless) in order to significantly reduce noise and energy losses
Warranty :

18 months original warranty

Warranty terms :

18 months warranty since installation

after-sale Services :

20 years after-sale Services

Price $122
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC2000

DamaTajhiz Ducted Fan Coil Unit DT.DFC2000

  • 4-row coil with 3/8 inch copper pipes
  • Has three standard speeds with low volume
  • Has a galvanized distillation pan with a suitable slope
  • Has a durable washable filter with very easy installation and replacement
  • For a maximum area of 140 square meters (depending on conditions)
Price $399
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC1800

DamaTajhiz Ducted Fan Coil Unit DT.DFC1800

  1. 4-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Has a galvanized distillation pan with a suitable slope
  4. Has a durable washable filter with very easy installation and replacement
  5. For a maximum area of 120 square meters (depending on conditions)
Warranty :

18 months original warranty

Warranty terms :

18 months warranty since installation

after-sale Services :

20 years after-sale Services

Price $352
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC1600

DamaTajhiz Ducted Fan Coil Unit DT.DFC1600

  1. 4-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Has a galvanized distillation pan with a suitable slope
  4. Has a durable washable filter with very easy installation and replacement
  5. For a maximum area of 110 square meters (depending on conditions)

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $312
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC1400

DamaTajhiz Ducted Fan Coil Unit DT.DFC1400

  1. 3-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Has a galvanized distillation pan with a suitable slope
  4. Has a durable washable filter with very easy installation and replacement
  5. For a maximum area of 95 square meters (depending on conditions)

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $200
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC1200

DamaTajhiz Ducted Fan Coil Unit DT.DFC1200

  1. 3-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Has a galvanized distillation pan with a suitable slope
  4. Has a durable washable filter with very easy installation and replacement
  5. For a maximum area of 80 square meters (depending on conditions)

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $244
  • On sale!
DamaTajhiz DuctedFan Coil Unit DT.DFC1000

DamaTajhiz Ducted Fan Coil Unit DT.DFC1000

  1. 4-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Has a galvanized distillation pan with a suitable slope
  4. Has a durable washable filter with very easy installation and replacement
  5. For a maximum area of 70 square meters (depending on conditions)

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $234
  • On sale!
DamaTajhiz Ducted Fan Coil Unit DT.DFC800

DamaTajhiz Ducted Fan Coil Unit DT.DFC800

  1. Power consumption:220V single phase
  2. maximum used infrastructure: 56 m2 (depending on the conditions)
  3. Dimensions (H , W , L): 48.5*65*90 cm
  4. High heating capacity with four-row coil
  5. Three standard speeds with low noise
  6. Equipped with galvanized distillation pan
  7. Reliable work pressure: 8 bar
  8. Washable and high durable filter with easy installation and replacement

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $200
  • On sale!
DamaTajhiz Decorative Floor-mounted Fan Coil Unit DT.GFC1000

DamaTajhiz Floor-standing Fan Coil Unit DT.GFC1000

  1. Power consumption:220V single phase
  2. maximum used infrastructure: 70 square meters (depending on the conditions)
  3. Dimensions (H, W, L): 200*22*60 cm
  4. High heating capacity with three-row coil
  5. Three standard speeds with low noise
  6. Easily usable deaeration valve
  7. Equipped with galvanized distillation pan
  8. Reliable work pressure: 8 bar
  9. Washable and highly durable filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $280
  • On sale!
DamaTajhiz Decorative Floor-mounted Fan Coil Unit DT.GFC800

DamaTajhiz Floor-standing Fan Coil Unit DT.GFC800

  1. 3-row coil with 3/8 inch copper pipes
  2. Has three standard speeds with low volume
  3. Possibility to build in two modes: air return from below and air return from behind
  4. Has a washable filter with very easy installation and replacement + vent valve
  5. For a maximum area of 56 square meters (depending on conditions)

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $260
  • On sale!
DamaTajhiz Decorative Floor-mounted Fan Coil Unit DT.GFC600

DamaTajhiz Floor-standing Fan Coil Unit DT.GFC600

  1. Power consumption:220V single phase
  2. maximum used infrastructure: 40 square meters (depending on the conditions)
  3. Dimensions (H, W, L): 125*22*60 cm
  4. High heating capacity with three-row coil
  5. Three standard speeds with low noise
  6. Easily usable deaeration valve
  7. Equipped with galvanized distillation pan
  8. Reliable work pressure: 8 bar
  9. Washable and highly durable filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

18 months DamaTajhiz golden warranty + 20 years of technical support
Price $180
  • On sale!
DamaTajhiz Decorative Floor-mounted Fan Coil Unit DT.GFC400

DamaTajhiz Floor-standing Fan Coil Unit DT.GFC400

  1. Power consumption:220V single phase
  2. maximum used infrastructure: 28 square meters (depending on the conditions)
  3. Dimensions (H, W, L): 112*22*60 cm
  4. High heating capacity with three-row coil
  5. Three standard speeds with low noise
  6. Easily usable deaeration valve
  7. Equipped with galvanized distillation pan
  8. Reliable work pressure: 8 bar
  9. Washable and highly durable filter

Pre-sale service:
Engineering consulting + calculations and capacity determination

Price $213
  • On sale!

comments

(0 comment)

add comment

Shopping Cart

Cart is empty.



Account

Account

Menu
No account?
Create an Account
