DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800

Selection and Purchase Guide for DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800

DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800 is one of the latest models of DamaTajhiz ceiling fan coil units, which is used to provide cooling and heating for residential complexes, offices, commercial centers, etc.

In general, the slim models of Damatajhiz built-in ceiling fan coil units are produced in compliance with all technical principles and conventional standards by the Damatajhiz company, in the ventilation capacities between 200 and 1200 (CFM) according to modern technologies for use in construction projects. Also, slim built-in ceiling fan coil units have a low height, which is one of the advantages of these fan coil unit products.

If you would like to purchase and supply a variety of built-in ceiling fan coil units in different models, capacities, and dimensions with the desired quality (according to the size and type of use of your intended environment), please read the following items and contact the sales experts of the air conditioning equipment in the specialized collection of Damatajhiz to get a suitable and satisfactory shopping experience from this dynamic collection.

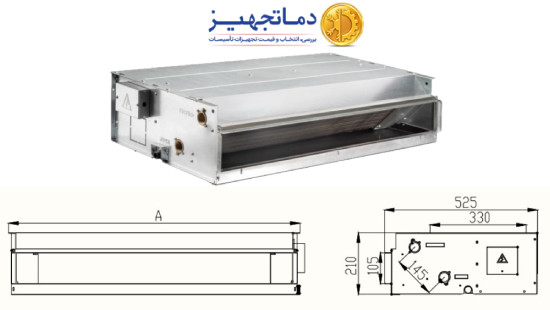

Slim Built-in Ceiling Fan Coil Unit DT.CF800 with very suitable dimensions and a height of 21 cm, can be easily installed in all kinds of false ceilings of buildings.

Features and benefits of DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800

The advantages and general features of the Damatajhiz Slim 800CFM built-in ceiling fan coil unit model DT.CF800 are as follows:

• Connection on both sides of the device
• Small volume, light, weight and very quiet
• The possibility of moving the filter from below to the back of the device
• Suitable for installation in the ceiling with low noise
• It can connect brass screws to the device
• The body is made of hard and strong galvanized sheet
• Equipped with a very easy-to-use air valve
• It has a fan made of metal (high-quality alloy)
• It has three standard speeds with a very low sound level
• It has an optional external tray that can be installed on the device
• It can add fresh air to the air intake plenum
• It is possible to remove the fan and motor for repairs after installation
• It has 5 mm anti-moisture insulation in the drain and 3 mm in the body
• Use of electric motors with reliable brands as standard or customized
• Using quality parts and manufacturing conditions according to the world's standards
• Special design with suitable dimensions for optimal placement in the false ceiling (with very low height)

Technical specifications of DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800

To get to know the technical specifications of the Damatajhiz slim 800CFM built-in ceiling fan coil unit of the DT.CF800 model, pay attention to the following:

• Coil:

• The Slim type built-in ceiling fan coil units have 3-row coils of copper pipes with a diameter of 3.8 inches with the lowest pressure drop and aluminum fins
• The coils manufactured by Damatajhiz company are made with the most advanced fully automatic machines and due to the use of advanced plate fin technology, they benefit from a high heat exchange level (standard cooling level) compared to similar types of coils
• All coils are fully tested with 250 PSI pressure after manufacturing

• Fan and electric motor:

of DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800 has a metal fan (very high-quality alloy) with a minimum sound decibel. Therefore, it is possible to install a ventilation fan made of ABS (compressed plastic) on a customized basis and according to the needs of respected buyers.

The electric motor of the slim models of Damatajhiz ceiling fan coil units is selected from the best available brands with long life and good quality.

•  Body:

This type of Damatajhiz fan coil unit has a strong and resistant body made of high-quality galvanized sheets. It is also possible to add fresh air to the plenum of the device and to move the return air from below to the back of the device.

• Insulation:

The slim model of Damatajhiz built-in ceiling fan coil unit 800CFM has a 5 mm drain tray and 3 mm insulation of the inner body, to prevent the waste of heat, and coldness and significantly reduce the sound of the device.

• Filter:

These fan coil units have a 2-layer aluminum filter with the ability to wash and replace easily, to remove dust and particles suspended in the air.

• Drain tray:

The drain tray in DamaTajhiz Slim Built-in Ceiling Fan Coil Units is equipped with 5 mm elastomeric insulation, a 1/2 inch outlet on both sides of the device (for complete drainage of water) and proper tilting (for easier drainage), to collect and direct distilled water. It is used on the surface of the coil and directs them to the drain pipe.

Determining the capacity of the Slim built-in ceiling fan coil unit of Damatajhiz

One of the most important points in choosing and buying a fan coil unit is to determine its capacity (according to the size of the intended environment).

- For this purpose, you can refer to the following approximate capacity determination table:

Purchase order and warranty of DamaTajhiz Slim Built-in Ceiling Fan Coil Unit DT.CF800

In the reference and specialized website of Damatajhiz, technical information and guaranteed prices are provided for buying Damatajhiz fan coil units in various types of built-in ceiling (standard, slim, etc.) with a golden guarantee, so that you, dear ones, can enjoy the good feeling of an optimal and smart purchase.

Slim built-in ceiling fan coil unit 800CFM Damatajhiz model DT.CF800 has a 15-month golden warranty and 10 years of after-sales service by Damatajhiz company.
