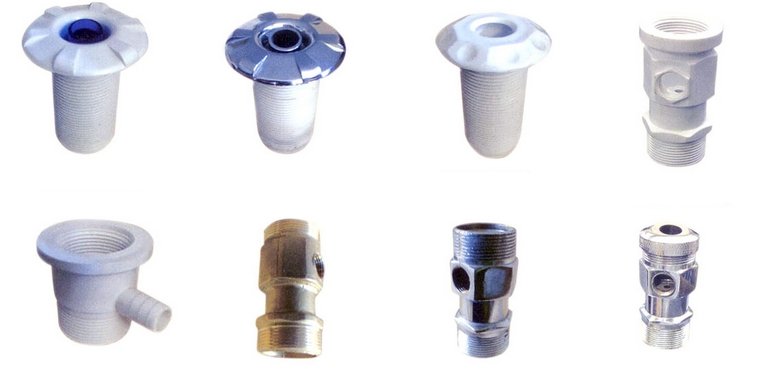

Jet Nozzle

Pool jet nozzles are used to evenly distribute treated water within the pool basin and direct it toward the main drains. Below, you will become familiar with different types of pool nozzles, their technical specifications, and a guide to selecting and purchasing pool water nozzles.

Professional Guide to Selecting and Pricing Pool Jet Nozzles

Proper selection and installation of pool water nozzles are among the most critical steps in pool design and operation. As a key component of pool equipment, these nozzles play a vital role in water circulation, contaminant removal, and overall water filtration quality, and they can significantly impact water clarity and hygiene.

Pool nozzles are typically installed in the shallow area of the pool, where due to higher swimmer activity and increased surface movement, the level of contamination and suspended particles is greater than in other areas. Therefore, installation in these zones must be carried out carefully to ensure uniform water distribution and prevent stagnation, as areas not covered by incoming water flow will remain stagnant.

Generally, the recommended spacing for jet nozzle installation in the shallow area and near the water surface is between 1.5 to 3 meters, allowing surface and bottom water to be uniformly directed toward the deeper sections of the pool where skimmers and main drains connected to the filtration return system are located.

This design ensures that water fully passes through the suction drains of the filtration system, maximizing circulation and filtration efficiency.

Additionally, selecting the type of pool nozzle, the water discharge angle, and installation height can influence throw power, surface coverage, and visual effects. Properly functioning pool nozzles provide a balance of aesthetics, performance, and safety, ultimately delivering a better swimming experience for users.

Closed Circuit Pool Water Circulation Path

This method is considered one of the most common ways of changing and cleaning the pool water, in which the water is continuously transferred from the surface and bottom of the pool water to the filtration system via a circulator pump and a piping route. After disinfection by chlorine, UV, or ozone generator is returned to the pool.

The path of water flow inside the pools starts from the jet nozzles and ends at the outlet channels that exist on the surface and bottom of the pool bowl (Approximately 40% of pool water pollution settles on the bottom of the pool bowl, which must be collected by the pool cleaners).

In this method, it is necessary to have the inlet (water inlet nozzle) and outlet (pool skimmer and small heads) installed in the required number and in the right place from the pool bowl.

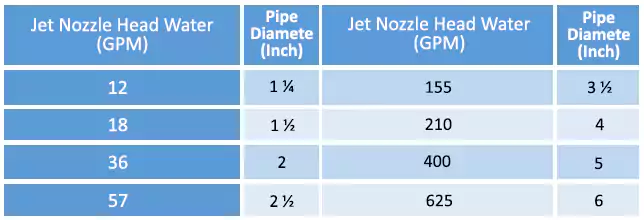

Jet Nozzle Size Calculation

The following table will help you calculate the right jet nozzle based on the headwater of the system:

Pool and Spa Jet Nozzle Installation Tips

The important point in installing the jet nozzle for the pool or spa is that the nozzle should not be used on the edge of the pool ladder where excessive turbulence of the water is a problem. Generally, the inlet flow of each jet nozzle is considered to be between 15 and 20 gallons per minute to create a minimum pressure drop along the way.

According to the information available in some sources, in pools with a width of more than 18 meters, it is necessary to use water jet nozzles on the bottom of the pool bowl (fountain mode) in addition to the water jet nozzles installed on the transverse wall, in this case, All floor jet nozzles must be leveled with the surface of the pool floor.

Buying Pool and Spa Jet Nozzles

When buying pool and spa jet nozzles, you should pay attention to the number of nozzles (not so many that they can no longer push the water forward due to the low pressure, and not so few that overload the pump). The water flow at a shallow depth should be at most 1.5 m/h.

The jet nozzle is one of the essential equipment for the pool, which you can consider from brands that provide pool and spa jet nozzles, such as Aquamarine, Emaux, and IML.

In order to easily choose and buy a pool and spa jet nozzle, you must first determine the brand and model you need. On this website, technical information of dozens of models of pool and spa jet nozzles, from popular brands with original warranties, has been presented for you to enjoy a good and optimal shopping experience.

The Price of Pool and Spa Jet Nozzles

The price of swimming pool and spa jet nozzles is different based on the dimensions, material, durability, and strength of the product and based on the precise and calculated production techniques so that you can choose the best among hundreds of models according to your needs and budget.

It should be noted that the prices of all pool and spa jet nozzles presented on DamaTajhiz HVAC Co. are all up-to-date and the discounts desired by consumers have already been included.

Dear Users:

While thanking you for your trust in DamaTajhiz HVAC Inc., it should be noted that the buyer ultimately determines and selects the desired product brand based on history, brand strength, service, and product price.

But in the field of pool and spa jet nozzles, most buyers choose the best-selling brands such as DamaTajhiz HVAC corporation and Aquamarine according to their quality, price, and after-sales service.

If you have more questions about pool and spa jet nozzles, you can get advice from the sales experts of the swimming pool, sauna, and jacuzzi via the following extension numbers 103-105-106.
