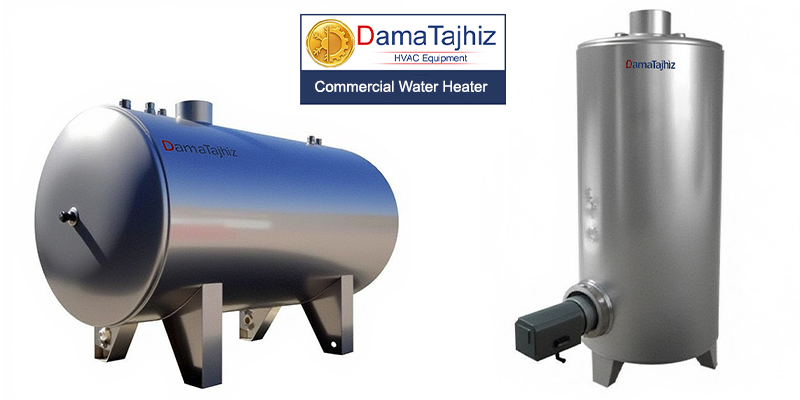

DamaTajhiz Commercial Water Heater

DamaTajhiz industrial/commercial water heaters are the best economical option for supplying hot water to high-use places such as public bathrooms, car washes, construction and manufacturing workshops, etc. As they are made with galvanized sheets with appropriate thickness and quality.

The following content provides the technical specifications, sales terms, capacity determination, and the price of all models of DamaTajhiz commercial water heaters.

DamaTajhiz Commercial Water Heater Experts' Buying Guide and Price List

Industrial water heaters are heat transfer equipment and instant hot water supply for consumption, and in terms of heat transfer, they have a simple structure similar to a hot water boiler or other heat transfer equipment and heat exchangers.

DamaTajhiz HVAC has been manufacturing and supplying all types of commercial water heaters with the best quality and appropriate or fast delivery time since 2004 in the Middle East and West Asia.

DamaTajhiz Commercial Water Heater Components

DamaTajhiz commercial water heaters consist of 4 main components:

1. Body

The body of the DamaTajhiz commercial water heater is made of a hot galvanized steel sheet with a thickness corresponding to their capacity, from 4 to 8 mm. The welded areas are covered with sanitary and safe epoxy paint on both sides; The color is usually white or blue but custom colors are also available.

The thickness of the sheet DamaTajhiz horizontal commercial water heaters is equal in all areas. However, in vertical models, the thickness of the dishes is considered greater than the body, due to the pressure applied to the upper and lower dishes of the tank, especially the lower dish,

Dematheiz industrial water heaters have handholes in smaller capacities and manholes in high capacities for inspection and possible repairs.

Body Connections

There are 8 plumbing connections installed to the body of the industrial water heaters:

1. Cold water inlet bushing
2. Hot water outlet
3. Hot water return
4. Drain valve bushing
5. Safety valve bushing
6. Thermostat mounting bushing
7. Limit thermostat
8. Temperature gauge bushing



Notes:

• All types of commercial water heaters that have a direct heating system, such as a burner or even an electric element are hot water boilers, and all technical and engineering precautions such as the installation of a reliable and standard safety valve must be considered.


• High-quality and healthy thermostats, limit thermostats, and pressure relief valves should be installed and checked periodically by the project's technical staff to ensure the correctness of their operation.


• The top and bottom dishes of all models of DamaTajhiz commercial water heaters are made of the edged type so that the pressure on the edges doesn't apply to welding areas.



2. Burner

DamaTajhiz commercial water heaters have the ability to install a fanned burner or an electric heating element which are of gas or diesel, dual-fuel, diesel or electric types with appropriate capacity and in different models, and you can order water heaters with or without a burner according to your need.

DamaTajhiz water heaters are usually equipped with Iran-Radiator and Garm-Iran burner types, which can be changed according to the customers' orders.

Note: Burner installation equipment and accessories, such as hoses, gas filters, diesel nozzles, diesel filters, etc. must be purchased separately.

3. Furnace

DamaTajhiz commercial water heater furnaces are designed, manufactured, and supplied from 4, 6, and 8-inch firetubes based on their capacity (two-pass in horizontal models and one-pass in vertical models).

4. Control Equipment

To control the temperature of the outlet water of the DamaTajhiz commercial water heaters it is necessary to use two submerged thermostats that are installed in series in the circuit.

The first thermostat performs the role of initial disconnection and connection, and the second thermostat is at a temperature of 10 degrees higher. It is set as a limit thermostat that will operate and turn off the burner if the first thermostat does not work.

To display the temperature inside the outlet water source in the highest part of the water heater, use a temperature gauge that is sheathed from 0 to 120 degrees Celsius.

Also, to prevent possible pressure increases inside the tank, it is necessary to use a standard and efficient temperature and pressure safety valve according to the regulations and technical instructions.

Note: Regarding the installation of burners, it is strongly recommended to use a pressure-relief valve instead of a safety valve, so if for any reason, the temperature and finally the pressure inside the source exceeds the permissible limits, the pressure-relief valve (which is more functional than regular safety valves) can discharge excess pressure and prevent any accidents.

Extra: The order for the preparation and installation of the pressure relief valve can be done at the request and expense of the respected buyer.

The Role of Return Valves in Commercial Water Heaters

If the distance between the consumer and the industrial water heater is large is necessary to implement the return water pipe during plumbing so that the consumer doesn't have to wait for the hot water and to reduce the waste of water.

Returning water to the water heater is usually done by a small 1-inch linear pump, which is calculated according to the length of the route, the number of consumers, and the system's capacity.

DamaTajhiz Commercial Water Heater Information Table

The following tables provide technical information of different models of DamaTajhiz commercial water heaters:

DamaTajhiz Horizontal Commercial Water Heater

DamaTajhiz Horizontal Commercial Water Heater

Buying DamaTajhiz Commercial Water Heaters

When buying DamaTajhiz commercial water heaters pay attention to the capacity and size of the industrial water heater, the amount of energy consumption, the quality and durability of the water heater, the brand and the country of the manufacturer of the peripheral equipment, safety, warranty, and guarantee of the goods, etc.

Here at the DamaTajhiz HVAC store, technical information on dozens of models of DamaTajhiz commercial water heaters with original warranties has been provided for you to enjoy an optimal and smart shopping experience.

The Price of DamaTajhiz Commercial Water Heaters

Like other products, industrial water heaters have different types and features, capacities, applications, quality, etc., that influence the price of the device.

All DamaTajhiz branded commercial water heaters offered at the DamaTajhiz HVAC store have reasonable prices and the discounts desired by consumers have already been included in these prices for everyone to enjoy.

DamaTajhiz Commercial Water Heater Top Buyers

While thanking all our dear customers, here's the list of the top 36 buyers of the DamaTajhiz Commercial Water Heaters:

1. Pars Road Development Company: 1 DamaTajhiz 1,000-liter Horizontal Commercial Water Heater(s).
2. Mr. Hosseini - Saghez: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
3. Parsaban Company - Tehran: 1 DamaTajhiz 25,000-liter Electric Commercial Water Heater(s).
4. Tat Tarh Iranian Engineers: 1 DamaTajhiz 6000-liter Vertical Commercial Water Heater(s).
5. Trans-post Pars Company - Zanjan: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
6. Mr. Javan: 1 DamaTajhiz 1,000-liter Horizontal Commercial Water Heater(s).
7. Khatam Al-Anbiya Construction Headquarters - Tehran: 1 DamaTajhiz 1,000-liter Horizontal Commercial Water Heater(s).
8. Mr. Margob: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
9. Lent Parsian Pishro Company: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
10. Army Navy Company: 1 DamaTajhiz 500-liter Electric Commercial Water Heater(s).
11. Mr. Haleb Chi: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
12. Hossein Zadeh Store - Ardabil: 1 DamaTajhiz 1,500-liter Vertical Commercial Water Heater(s).
13. Saman Industrial Group: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
14. Mr. Hosseini - Amol: 1 DamaTajhiz 1,200-liter Vertical Commercial Water Heater(s).
15. Mr. Hoshmand - Tehran: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
16. Iran Newspaper Company - Tehran: 1 DamaTajhiz 300-liter Vertical Commercial Water Heater(s).
17. Abar Benay Sangsar Company - Semnan: 1 DamaTajhiz 1,500-liter Vertical Commercial Water Heater(s).
18. Hadi Store - Bojnord: 2 DamaTajhiz 2,000-liter Horizontal Commercial Water Heater(s).
19. Pooya Palad Company - Isfahan: 1 DamaTajhiz 1,200-liter Vertical Commercial Water Heater(s).
20. Avay Jahanbin Parsian Company - Khuzestan: 2 DamaTajhiz 2,500-liter Vertical Commercial Water Heater(s).
21. Navid Gostaran Omran Bana Company - Kermanshah: 1 DamaTajhiz 1,000-liter Vertical Commercial Water Heater(s).
22. Tareh Tajiz and Qadrkar Company - Tehran: 1 DamaTajhiz 400-liter Vertical Commercial Water Heater(s).
23. Mr. Fallahi: 1 DamaTajhiz 1,000-liter Vertical Commercial Water Heater(s).
24. Mr. Moradi: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
25. Ghaem Shahr: 1 DamaTajhiz 1,000-liter Vertical Commercial Water Heater(s).
26. Mohammadieh - Qazvin: 1 DamaTajhiz 800-liter Vertical Commercial Water Heater(s).
27. Tehranpars Car Wash: 1 DamaTajhiz 500-liter Horizontal Commercial Water Heater(s).
28. Gopeleh Company: 1 DamaTajhiz 3,000-liter Double-Pass Horizontal Commercial Water Heater(s).
29. Mr. Bamdad - Gilan: 1 DamaTajhiz 500-liter Vertical Commercial Water Heater(s).
30. Luxury Restaurant - Urumiah: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
31. Poulad Sanat Bonab Company: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
32. Fars Sheid Company Project - Shiraz: 1 DamaTajhiz 200-liter Vertical Commercial Water Heater(s).
33. Mr. Rezaei - Karaj, Gohardasht: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
34. Mr. Tofigh Doost - Mahabad: 1 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
35. Mr. Esmaeil Shah Hosseini - Garmsar: 1 DamaTajhiz 1,000-liter Vertical Commercial Water Heater(s).
36. Mr. Soltani - Tehran: 2 DamaTajhiz 600-liter Vertical Commercial Water Heater(s).
