DamaTajhiz Ducted Split

If you want to buy a ducted split or an inverter for the air conditioning system of your apartment and workplace, with the most appropriate price and technical specifications, fast delivery, you have come to the right place.
Please, by reading the presented items and getting to know more about the technical specifications, capacities, and suitable prices of different types of DamaTajhiz ducted splits and contacting the experts of the air conditioning equipment department in the specialized DamaTajhiz collection, get a suitable and satisfactory shopping experience from this dynamic collection.

Damatajhiz Ducted Split at a glance

Damatajhiz Ducted Split is one of the main products in the specialized Damatajhiz collection, which is produced and supplied in different types and capacities.

  • DamaTajhiz Engineering Company is one of the most reliable manufacturers of quality central and independent air conditioning and heating devices in the Middle East, with a variety of products such as Ducted Splits, fan coils, cooling towers, air conditioners, air washers, fans, and ventilators, mini chillers, water compression chillers It has been supplying air conditioners, unit heaters, etc. since 2004 in the world markets.

DamaTajhiz ducted splits consist of 2 parts: an internal unit (air conditioner) and an external unit (condenser). 2 copper pipes connect these 2 parts and provide cool air in summer and warm air in winter for all spaces in one. The apartment unit and the transfer of cold or hot air through the channels inside the false ceiling make the desired ambient temperature comfortable and desirable conditions (adjusted by the thermostat).

Ducted split of DamaTajhiz co.

Variety of models and capacity of the Damatajhiz Ducted Split

DamaTajhiz Ducted Splits are available in different types in terms of capacity and model to meet the different needs of residential and commercial construction projects.
These products include 3 series of built-in ceiling ducted splits equipped with inverters, suitable for hot and dry areas and suitable for very hot and humid areas, which are produced in capacities of 18,000 to 60,000.
DamaTajhiz ducted splits work with single-phase power in capacities of 18,000, 24,000, 30,000, and 36,000 and in capacities of 48,000 and 60,000 with three-phase power. Before buying a Ducted Split, special attention should be paid to whether the power required by the product is single-phase or three-phase.
All Ducted Split models of DamaTajhiz have cooling and heating functions and can be connected to hot water coils in order to provide warm air in the cold season. Providing heating with the use of hot water coils, in addition to providing optimal heating, significantly saves electricity and costs.

Features of the Damatajhiz Ducted Split

  • It is possible to ventilate several spaces with one device.
  • Fan operation in three speeds: high, medium, and low
  • The use of resistant polymer fans (of the ultra-low noise type)
  • Use of heat and sound insulation in the inner body of the device
  • Equipped with protective control devices for pressure, flow, and phase control
  • It can supply fresh air through the fresh air channel.
  • Equipped with a rotary compressor (main brand) with very low power consumption
  • It has small dimensions and lightweight (minimum space needed to install the indoor unit)
  • The low sound level of the device is due to the use of propellers with special designs and angles.
  • Using inner-grooved copper pipes to increase the efficiency of the device
  • Complete test of cooling and heating coil with 300 psi pressure for leak test and pressure test
  • Suitable for use in very hot and tropical areas up to 52 degrees Celsius
  • It has a smart touchscreen digital thermostat (automatic cooling and heating control)
  • Equipped with an anti-fungal and washable filter with synthetic fibers for absorbing very fine particles with easy replacement
  • DamaTajhiz Ducted Splits are designed and produced to avoid electricity consumption costs with energy categories A and B.
  • The refrigerant gas used in most of the ceiling Ducted Splits of DamaTajhiz is of the R410a refrigerant type, which is environmentally friendly.
  • Among the other unique features of DamaTajhiz channel splits are the ability to change the air suction valve, a very suitable height for installation, a filter to increase air quality, and the ability to install a return air channel and fresh air.
  • Inverter Ducted Splits and moderate and tropical DamaTajhiz is equipped with a hot water coil inside the air conditioning unit. In the winter season, instead of using a heat pump, the device can use the hot water produced in the home packages or the main engine house upon the order and request of the respected buyer. Installed into the hot water coil and passing the air over it, it is used for heating in the winter season, eliminating radiators or fan coils in the building.

Determining the capacity and installation of DamaTajhiz ducted splits

  • To determine the capacity and number of Ducted Splits of DamaTajhiz required for the project, first, send the latest architectural plan of the units and floors of your building to our experts via fax or email.
  • Usually, during the initial estimation of the Ducted Split cooling capacity required for each apartment in climatic conditions like Tehran and in the middle floors of the building (which are not exposed to sunlight on the roof in summer and the coldness of the roof surface in winter), for every 30 or 40 A square meter of the total and gross area of the apartment is considered to be about one ton of refrigeration (each ton of refrigeration is equivalent to 12,000 BTUs per hour).
  • In addition, if the area of your apartment units is more than 120 square meters, it is better to use two ducted split devices for each unit.
  • One of the points of interest in choosing and buying Ducted Splits is considering their aeration volume, usually equal to 400 CFM for each ton of Ducted Split capacity. If the volume of aeration is less, the sound of the Ducted Split fan will be lower, and if the aeration is more, the sound of the Ducted Split fan will be higher.
  • You can also refer to the following table for more ease of calculation to determine the approximate capacity of the required Ducted Split according to the conditions and bases of calculations mentioned for weather conditions such as Tehran:
Ducted split capacity for middle and ground floor units (m2) for units under the roof (m2)
18000 to 45 to 35
24000 to 60 to 45
30000 to 80 to 60
36000 to 100 to 80
48000 to 130 to 100
60000 to 150 to 130
  • After determining the capacity and number of required ceiling Ducted Splits, their location is based on various parameters such as the presence of a false ceiling, the possibility of ducting, how to run the pipes of the device to the outer panel, how to run the hot water piping to the heating coil, the most suitable installation position in terms of The amount of sound is determined.
  • The ducting map from the ceiling Ducted Split to each space (hall or rooms) is prepared and sent based on the most suitable dimensions and passing over the false ceiling.
  • According to the frequent questions of the builders of residential units regarding the cost of implementing air distribution and return channels inside the units and the implementation of copper pipes between the inner duct and the outer panel, as a general estimate, the cost of their implementation can be about 20 to 30% of the initial purchase price of the duct. Considered splits. (Of course, this estimate is approximate and depends on various factors such as the length of the route and the distance between the two internal and external panels and other factors)
  • Before choosing and ordering the purchase of any of the ceiling mentioned above Ducted Splits, pay attention to whether the electricity required is single-phase or three-phase (Ø) and also the amperage (A) of the electricity consumed according to the power and specifications of your unit's electricity meter.

Buying DamaTajhiz Ducted Split

Buying a ducted split is one of the choices for the building's air conditioning system. Various factors such as weather, environment usage, architectural conditions under the building, etc. are important when buying ducted split and you should pay attention to them.
In the first step, to choose and buy the Ducted Split of DamaTajhiz, you must determine the appropriate capacity of the device and things like that. Because, DamaTajhiz Ducted Splits are produced and supplied in different types with different cooling, heating, and ventilation capacities, and before purchasing a Ducted Split, you should consider the size and use of your environment, so that you can make the correct choice. Have a Ducted Split in the model and ventilation capacity of the device.

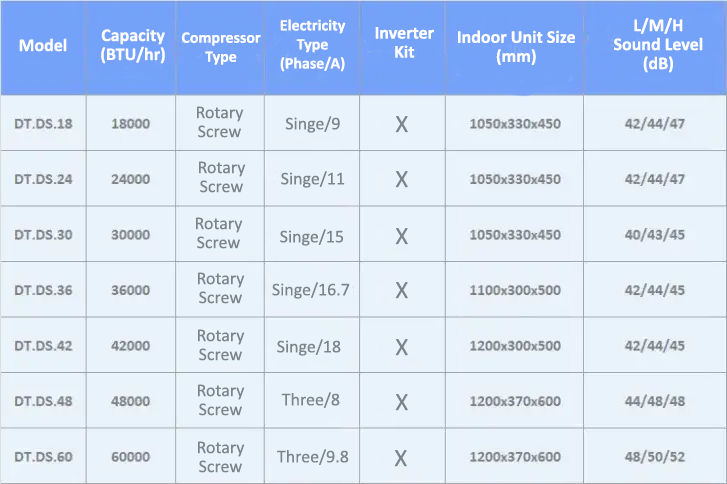

On the site of DamaTajhiz's specialized collection, technical information of DamaTajhiz Ducted Split types with an original warranty is presented, so that you, dear ones, can enjoy the good feeling of optimal and smart shopping.

DamaTajhiz Ducted split price

Ducted splits are generally produced in two types with an inverter and without an inverter, which has a higher price but saves electricity. Device type, device capacity, required amperage, sound level, location, efficiency factor, refrigerant type, etc. are all effective in determining the price of a ducted split. Therefore, the price of DamaTajhiz Ducted Split is also different based on the devices' type, capacity, and technical specifications.
It should be noted that all the Ducted Splits presented on the website of DamaTajhiz specialized collection have product IDs and appropriate prices and the discounts desired by the consumers have been included in these prices.

Purchase order and warranty of Ducted Split of DamaTajhiz

  • Ducted splits of DamaTajhiz have a 2-year golden warranty with the possibility of replacing the compressor and 10 years of after-sales service.
  • To view and learn about the warranty and technical specifications of all types of DamaTajhiz Ducted Splits, click on the "Technical Specifications" tab on the page of each of the following products.

List of some clients and projects of different types of DamaTajhiz Ducted Splits

  • Mr. Mirozmani's project: 2 ceiling Ducted Split DamaTajhiz, capacity 48000 btu/hr - Tehran
  • Mr. Engineer Aliabadi's project: 3 ceiling Ducted Split DamaTajhiz with a capacity of 48000 btu/hr - Isfahan
  • The project of Mr. Engineer Sadeghzadeh: 11 ceiling Ducted Split DamaTajhiz with a capacity of 36000 btu/hr - Tehran
  • The project of Mr. Enghes Monfared: 2 ceiling Ducted Splits with a capacity of 24000 btu/hr and 3 Ducted Splits with a capacity of 36000 btu/hr - Tehran
  • The project of Mr. Engineer Izadpanah: 4 ceiling Ducted Splits with a capacity of 36000 btu/hr and 3 Ducted Splits with a capacity of 42000 btu/hr - Tehran
  • ...
Golden warranty card of DamaTajhiz Factory of DamaTajhiz

Exhibition of facilities
The presence of DamaTajhiz in international exhibitions of construction facilities and cooling and heating systems

Order from you, follow up from us

The specialized group of DamaTajhiz has an official trust symbol and started its activity in 2013 in the head office of Tehran.

DamaTajhiz

"We are waiting for your call and look forward to meeting you in the specialized DamaTajhiz collection"


1K Cal = 4 BTU

Active filters

DamaTajhiz Ceiling Ducted Split DT.DS.18

DamaTajhiz Ceiling Ducted Split 18000 Model DT.DS.18

  1. Function: Heating and Cooling
  2. For the area of 25 to 40 m2 (according to the conditions)
  3. The ability to connect to the hot-water coil for providing heating
  4. Dimensions of internal unit(D, H, W): 750*295*1145mm
  5. Power consumption: Single phase
  6. Energy label: A
  7. External static pressure: 1.5/4.2 MPa
  8. Fan performance at medium, low, and high speed
  9. Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $660
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.24

DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

  • Function: Heating and Cooling
  • For the area of 30 to 50 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 750*295*1195mm
  • Power consumption: Single phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,260
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.30

DamaTajhiz Ceiling Ducted Split 3000 Model DT.DS.30

  • Function: Heating and Cooling
  • For the area of 40 to 60 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 750*330*1195mm
  • Power consumption: Single phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,000
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.36

DamaTajhiz Ceiling Ducted Split 36000 Model DT.DS.36

  • Function: Heating and Cooling
  • For the area of 60 to 85 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 825*355*1195mm
  • Power consumption: Single phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,180
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.42

DamaTajhiz Ceiling Ducted Split 42000 Model DT.DS.42

  • Function: Heating and Cooling
  • For the area of 70 to 90 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 825*355*1195mm
  • Power consumption: Single phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,250
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.48

DamaTajhiz Ceiling Ducted Split 48000 Model DT.DS.48

  • Function: Heating and Cooling
  • For the area of 75 to 110 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 825*355*1245mm
  • Power consumption: Three-phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,500
  • On sale!
DamaTajhiz Ceiling Ducted Split DT.DS.60

DamaTajhiz Ceiling Ducted Split 60000 Model DT.DS.60

  • Function: Heating and Cooling
  • For the area of 100 to 150 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 825*355*1295mm
  • Power consumption: Three-phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
Price $1,700
  • On sale!
