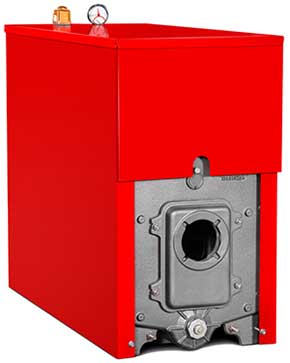

Chauffagekar Solar 400-10 Cast-Iron Boiler

Purchase Guide for Chauffagekar Solar 400-10 Cast-Iron Boiler

Chauffagekar solar 400-10 cast iron boiler is one of the most popular products of Chauffagekar Company and has been widely used since the 1980s as a proper choice for central heating systems of small and medium-sized buildings.

The Chauffagekar Solar 400-10 is made of flame retardant cast-iron alloy and produced as separate blades. It is resistant to oxidization, chemical agents effective against surfaces, and environmental agents like humidity and combustion condensates.

Technical information and guaranteed prices of cast iron boilers for a variety of Chauffagekar Solar cast-iron boilers, including the original warranty, are provided to our dear customers on the main DamaTajhiz website and store for a smart and efficient purchasing experience. Dimensions and prices presented above for the Chauffagekar hot water cast-iron boilers include the cover.

Characteristics of Chauffagekar Solar 400-10 Cast Iron Boiler

• Its cast-iron frame is covered by 6 mm thick gibbous fins, which increases mechanical resistance as well as heating the surface on the boiler combustion side.
• Its running pressure and demolition pressures are 4 bar and 30 bar, respectively. In addition, its running temperature can reach up to 105 °C using closed expansion tanks.
• It is designed in such a way that it has the highest heating surface for heat transfer. As a result, the highest possible heating capacity will be achieved.
• It is of a horizontal type with 3 actual flame passes and smoke. Its back blade is of WETBACK type.

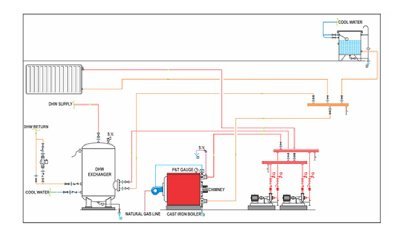

• It is suitable for medium-sized buildings. In addition to supplying heating warm water and healthy warm water, it can also be used in central furnace rooms to feed the generator of the single effect absorption chiller. Also, several solar 400-10 boilers can be used in parallel in the furnace room to supply warm water in large spaces.
• If the number of apartments is more than 6, two parallel central heating boilers that each have 70 percent of the required heating capacity will ensure a stable heating and hot water supply for consumption in the building.
• Mandatory standard of 4472 and 4473, CE European standard certificate, SGS ISO 9001:2008 quality management certificate.

To calculate the required capacity of the hot water cast-iron boiler according to the number of residential units, area, building use class, the existence or absence of warm water pools, etc. you can consult with the DamaTajhiz company experts.

Advantages of Bladed Warm Water Boiler over Integrated Steel Boilers

• Its smaller size and easy relocation due to the possibility of separating the blades
• Possibility of replacing damaged blades and easy repair compared to integrated steel boilers
• More reasonable price and proper warranty compared to standard steel boilers
• While using a cast-iron boiler, it is important to limit workload and to perform socket break-ins between boiler blades after installation.
• If the number of apartments is more than 6, two parallel central heating boilers that each have 70 percent of the required heating capacity will ensure a stable heating and hot water supply for consumption in the building.
• For prices and more information to purchase Chauffagekar solar 400-10 cast iron boiler, click on the price and technical characteristics on this page.

The Chauffagekar solar 400-10 Cast-Iron Boiler Warranty

In addition to a 10-years warranty, the Chauffagekar Solar 400-10 cast iron boiler, like other Chauffagekar products, has widely available technical support and after-sale services
