Midea Ducted Split

If you are interested in reviewing and selecting a Midea ducted split among various ducted split brands, stay with us in this article. We will first provide a brief introduction to the Midea brand and then introduce you to different Midea ducted splits in terms of capacity, technical specifications, warranty, reasonable pricing, and more.

DamaTajhiz HVAC Co.; Engineering, Manufacturing, and Trading Company in the Middle East Since 2004
Review, Selection, and Pricing of HVAC Equipment

Review and Selection of Midea Ducted Split

Midea was founded in China in 1968 and is now one of the top 5 global brands in manufacturing household appliances, electronics, and various air conditioning equipment. Since 1985, Midea has been producing HVAC equipment, including air conditioners, ducted splits, chillers, air purifiers, and more. By clicking on the link below, you can learn more about the differences and performance of various air conditioning systems, such as the difference between a chiller and a ducted split.

Midea Ducted Split is one of the core products of Midea, available in different types and capacities. Midea ducted splits operate on single-phase electricity for capacities of 24,000, 30,000, and 36,000 BTU, while capacities of 48,000 and 60,000 BTU require three-phase electricity.

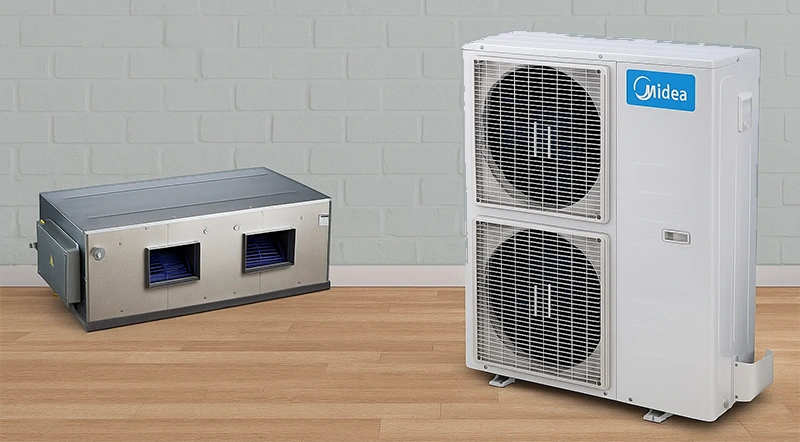

Midea Ducted Split

General Features of Midea Ducted Split (Midea)

The general features of Midea ducted split systems include: (For more details on the technical specifications of Midea ducted splits, please click on the catalog link for these products!)

Available in a wide variety
Equipped with multi-layer filtration
Features an energy-efficient inverter compressor
Can be connected to a hot water coil for heating
Equipped with corrosion-resistant golden fins in the outdoor unit
Includes a drain pump for condensate water transfer up to 75 cm
Supports high-level piping between indoor and outdoor units (30 meters in height and a total of 50 meters)
Optimized outdoor unit fan design to reduce noise levels and increase airflow volume
Equipped with golden fins made of aluminum tubes and copper mesh fins to protect the outdoor unit from corrosion, extend the unit’s lifespan, and enhance the condenser’s heat exchange efficiency

Table for Reviewing and Comparing Technical Specifications and Prices of Midea Ducted Split Systems

The table below provides technical information and the best purchase prices for various Midea ducted split models.

Note: The electrical current listed in the table represents the maximum power consumption of the unit in either cooling or heating mode.

Midea Ducted Split Series IDR3

Model	Capacity (BTU/hr)	Compressor Type	Power Consumption (فاز/ A)	Inverter Kit	Indoor Unit Dimensions (mm) Length x Width x Height	Noise level - H/M/L (dB)	السعر (تومان)
IDR-X71MGR3	24000	Rotary	Single phase/ 11	Available	1140x210x450	39/37/29	72,160,000
IDR-X90MGR3	30000	Rotary	Single phase/ 12	Available	1140x270x710	43/39/36	86,240,000
IDR-X105MGR3	36000	Rotary	Single phase/ 13	Available	1140x270x710	43/39/33	98,560,000
IDR-X140MGR3	48000	Rotary	Single phase/ 14	Available	1370x420x691	49/46/45	142,560,000
IDR-X160MGR3	54000	Scroll	Single phase/ 15	Available	1200x300x800	43/39/36	Inquiry-based

Midea Ducted Split Series X

Model	Capacity (BTU/hr)	Compressor Type	Power Consumption (فاز/ A)	Inverter Kit	Indoor Unit Dimensions (mm) Length x Width x Height	Noise level - H/M/L (dB)	Price (Toman)
X71M	24000	Rotary	Single phase/ -	Available	1140x210x450	39/37/29	58,588,000
X90M	30000	Rotary	Single phase/ -	Available	1140x270x710	43/39/36	75,914,000
X105M	36000	Rotary	Single phase/ -	Available	1140x270x710	43/39/33	84,969,000
X140M	48000	Rotary	Single phase/ -	Available	1200x300x800	43/39/36	118,442,000
X160M	54000	Rotary	Single phase/ -	Available	1200x300x800	43/39/36	Inquiry-based

Midea Ducted Split Series M

Model	Capacity (BTU/hr)	Compressor Type	Power Consumption (فاز/ A)	Inverter Kit	Indoor Unit Dimensions(mm) Length x Width x Height	Noise level - H/M/L (dB)	price (Toman)
MTIT-X24MGR3	24000	Rotary	Single phase/ 9.67	Available	1100x249x774	43/41/37	59,950,000
MTIT-X36MGR3	36000	Rotary	Single phase/ 12.1	Available	1100x249x874	50/48/43	88,876,000
MHGT-48WFN1	48000	Rotary	Three-phase/ 6.5	Available	1200x380x625	49/47/45	Inquiry-based
MHGT-55WFN1	55000	Rotary	Three-phase/ 7.5	Available	1200x440x858	51/48/45	Inquiry-based

Buying a Midea Ducted Split System

There are several key factors to consider when selecting and purchasing a ducted split system. The first step in choosing the right unit is to accurately determine its type, capacity, and brand. It is important to note that calculating the required capacity should be done by a specialist or expert. Additionally, when purchasing a ducted split system, attention should be paid to its power consumption and amperage.

On the DamaTajhiz specialized website, you can find technical details on dozens of ducted split models from reputable brands with original warranties, ensuring a smart and optimized shopping experience.

Midea Ducted Split Price

Ducted split systems are generally available in two types in the market: inverter and non-inverter models. The inverter type has a higher price compared to the regular model, but its ability to reduce electricity consumption costs over the years can compensate for the higher price. The unit’s capacity and brand are also two crucial factors in determining the price of a ducted split system.

It is worth mentioning that all ducted split units offered on the DamaTajhiz specialized website come with a product identification code and are available at competitive prices, with consumer discounts already applied.

Thousands of Products for Thousands of Projects (Since 2004)

Capacity Determination and Installation of Midea Ducted Split

The important points in determining the capacity and installation of different types of Midea ducted split systems are as follows:

To determine the capacity and number of Midea ducted splits needed for the project, please first send the latest architectural floor plan of your building units and floors via fax or email to our experts.
Typically, when estimating the initial cooling capacity required for each apartment in climate conditions like Tehran, and on middle floors (which are not exposed to direct sunlight on the ceiling in summer or the cold of the roof in winter), approximately one ton of cooling (one ton of cooling is equivalent to 12,000 BTUs per hour) is considered for every 30 or 40 square meters of total and gross apartment area. Therefore, if the area of any of your apartment units exceeds 120 square meters, it is recommended to use two ducted split units for each apartment.
Even if the size of your apartment units is up to 200 square meters, you can use single-phase ducted splits with 50 amps.
One important consideration when choosing and purchasing ducted splits is their airflow capacity, which is usually 400 CFM per ton of ducted split capacity. It is clear that if the airflow is lower, the sound level of the ducted split will be lower, and if the airflow is higher, the sound level will be higher.
You can also refer to the approximate calculation table below to determine the required ducted split capacity, based on the mentioned conditions and calculation principles.

Ducted Split Capacity (BTU)	For middle and ground floor units (m2)	For units under the attic(m2)
18000	up 45	up 35
24000	up 60	up 45
30000	up 80	up 60
36000	up 100	up 80
48000	up 130	up 100
60000	up 150	up 130

-Note: This calculation is approximate and is solely intended for residential apartments with climate conditions similar to Tehran, with a ceiling-to-floor distance of 2.8 meters, without the gathering of people and increased latent heat, without the use of high-energy-consuming electrical equipment, and also without glass facades or glass walls, especially on the west side of the space or building in question.

After determining the required capacity and number of ceiling ducted splits, the installation location is determined based on various parameters such as the presence of a false ceiling, the possibility of ducting, the method of routing pipes from the unit to the outdoor panel, the way the hot water pipes are routed to the heating coil, the optimal installation position in terms of noise level, and so on.
The duct layout from the ceiling ducted split to each of the spaces (hall or rooms) is prepared and sent based on the most suitable dimensions and routing above the false ceiling.
Due to frequent questions from residential unit builders about the cost of implementing air distribution and return ducts inside the units and the installation of copper pipes between the internal duct and the outdoor panel, the cost can be roughly estimated at about 20 to 30% of the initial purchase price of the ducted splits. (Of course, this is an approximate estimate and depends on various factors such as the length of the route and the distance between the internal and external panels, along with other factors.)
Before selecting and ordering any of the above ceiling ducted splits, make sure to pay attention to the type of electricity required (single-phase or three-phase Ø) and the amperage (A) of the power consumption, based on the capacity and specifications of your unit's electricity meter.

Warranty and After-Sales Service for Midea Ducted Split Midea

ducted splits, in all capacities, come with a 5-year compressor replacement warranty, an 18-month warranty on technical parts, and 10 years of after-sales service.

Considering that purchasing from specialized and reliable HVAC equipment sites and collections is beneficial both technically and in terms of selection and cost, the Damatajiz specialized website offers technical information and guaranteed prices for various Midea ducted splits with original warranties, ensuring you have a smart and optimal purchasing experience.
