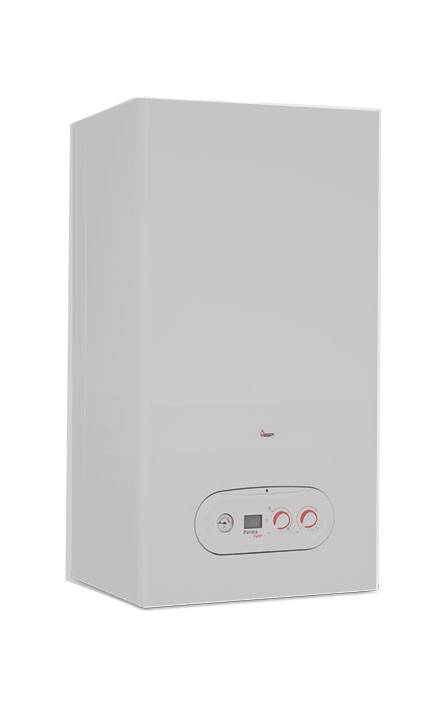

Butane Combi Boiler

Butane Industrial Group, as one of the first manufacturers of various combi boilers in Iran, is a strong competitor in the combi boiler market.

In the following, while introducing the Butane Company, we will discuss different types of Butane combi boilers, their features, models, technical specifications, how to calculate the capacity, and the price.

Butane Combi Boiler Experts' Buying Guide and Price List

The Butane Company was established in 1953 to contribute to the welfare and comfort of families. Initially, the company focused on producing gas cylinders, gas stoves, and gas heaters, but today, Butane is one of the most important manufacturers of various household appliances and heating equipment in Iran.

The Butane combi boiler (wall-mounted) was added to the production line of this company's factories in 1993 and soon became a favorite product among Iranian families for providing home heating and hot water.

To calculate the required capacity of the combi boiler, we multiply the area of the residential unit by 150 (kcal) and the area of the office units by 100 (kcal).

Butane Combi Boiler User Guide

When using a Butane combi boiler, keep the following points in mind:

• The use and installation of the H cap at the chimney outlet are mandatory when using the Butane combi boiler.
• It is also necessary to ensure that the chimney ducts and the cap are open.
• There must be a complete and correct connection between the cap and the chimney of the combi boiler.
• To prevent pipe freezing, the inlet and outlet water pipes should be insulated.
• Use a stainless steel gas hose during the installation of the combi boiler.
• Never install the combi boiler in a bathroom or spaces without ventilation.



Butane Combi Boiler Applications

The Butane gas wall-mounted combi boiler, as one of the heating equipment, not only plays an important role in heating the space of homes and office and commercial buildings but also in providing hot water for consumption.

The Butane gas wall-mounted combi boiler helps in creating balanced and warm air in the home and workplace with its ability to regulate the temperature.

Butane Combi Boiler Features

Butane combi boilers come with many features, including:

• Optimal gas consumption
• High thermal efficiency and performance
• Capability to connect to a room thermostat
• Provides hot water for consumption in the shortest time
• Equipped with a digital display to show the device's status



Different Types of Butane Combi Boilers

Butane combi boilers are produced in dual heat exchanger and single heat exchanger types, with and without fans, and are offered in the models "Bita," "Parma," and "Perla Pro."

• Butane wall-mounted combi boiler series Bita: Butane combi boilers from the Bita series are known as the economical models of the brand and are produced in an analog form.


• Butane wall-mounted combi boiler series Parma: Butane combi boilers from the Parma series are digital and fan-equipped.


• Butane wall-mounted combi boiler series Perla Pro: Butane combi boilers from the Perla Pro series have more features and capabilities compared to other types of Butane combi boilers.



Butane Combi Boiler Latest Model

The top models and the latest Butane combi boilers, which are assembled by Butane under the high-quality license of the Italian brand "Riello," are capable of meeting the needs of individuals for heating and providing hot water for domestic use.

Featuring an electronic fault diagnostic system, dual heat exchangers, flue fan, and offering services such as free installation, after-sales service, warranty, and fast delivery through DamaTajhiz HVAC store, the latest Butane combi boilers distinguish themselves from other models.

The latest Butane combi boilers are introduced under the "perla pro" series, which are produced and offered in both fanless (i) and fan-equipped (Rsi) models with capacities of 24000, 28000, and 32000 kcal/hr.

Important features of the fan-equipped Butane combi boilers from the "perla pro" series include the safety system for discharging combustion gases, automatic air venting, electronic fault diagnosis, anti-freezing system for the pump and three-way valve, and more.

Butane Combi Boiler Technical Specification Table and Price List

The table below provides technical information and the best purchase prices for various Butane wall-mounted combi boilers.

• Butane Combi Boilers Series Bita:

• Butane Combi Boilers Series Parma:

Model	Capacity (K.cal/hr)	Fuel Type	Installation Position	Chimney Fan	Chimney Diameter (Cm)	Dimensions (cm) Width*Depth*Height	Price (Toman)
Parma 22i	22000	Natural Gas	Wall-Mounted	No	10	40*33.2*74	Inquiry
Parma 24RSi	24000	Natural Gas	Wall-Mounted	Yes	10	40*33.2*74	Inquiry
Parma  22RSi	22000	Natural Gas	Wall-Mounted	Yes	10	40*33.2*74	Inquiry

• Butane Combi Boilers Series Perla:

Model	Capacity (K.cal/hr)	Fuel Type	Installation Position	Chimney Fan	Chimney Diameter (Cm)	Dimensions (cm) Width*Depth*Height	Price (Toman)
Perla 24RSi	24000	Natural Gas	Wall-mounted	Yes	10	40*34.5*74	Inquiry
Perla 28i	28000	Natural Gas	Wall-mounted	No	10	45*34.5*74	Inquiry

• Butane Combi Boilers Series Perla Pro:

Model	Capacity (K.cal/hr)	Fuel Type	Installation Location	Flue Fan	Flue Diameter (Cm)	Dimensions (cm) Width*Depth*Height	Price (Toman)
Perla Pro 24RSi	24000	Natural Gas	Wall-mounted	Yes	10	40*34.5*74	On request
Perla Pro 28RSi	28000	Natural Gas	Wall-mounted	Yes	10	40*34.5*74	On request
Perla Pro 32RSi	32000	Natural Gas	Wall-mounted	Yes	10	45*34.5*74	On request

Butane Combi Boiler Installation Points

Important Butane combi boiler installation points to pay attention to:

• If part of the flue path of the wall-mounted combi-boiler is horizontal (more than 30 centimeters), the use of a fan-assisted combi-boiler is mandatory.


• Two-exchanger combi boilers are used when either the incoming water has high hardness (salts) or the area of the apartment is more than 120 square meters.


• If the installation location of the package is on a balcony or in an outdoor space, the use of a fan-assisted combi boiler with an anti-freezing system is mandatory.


• The city water pressure at the installation site of various combi boilers must be at least 0.5 and at most 3.5 atmospheres.

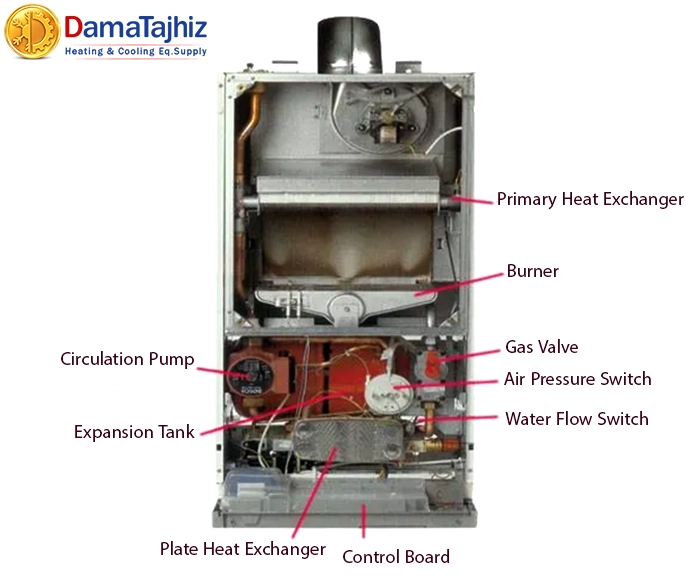

Butane Combi Boiler Components and Parts

In general, the components of the Butane package are divided into two categories: mechanical parts and electronic parts.

Butane Combi Boiler Mechanical Parts

The mechanical parts of Butane combi boilers are designed to perform specific functions and do not require commands from the electronic board. These include:

• Body
• Heat exchanger
• Expansion tank
• Burner
• Combustion chamber
• Three-way valve



Butane Combi Boiler Electronic Parts

The mechanical parts of Butane combi boilers include:

• The electronic board is the component responsible for controlling the operation and reporting technical faults of the package.
• Components that are controlled by the electronic board and execute commands.
• Components inform the control board of any changes, and the electronic board sends necessary commands based on these changes.



Buying Butane Combi Boilers

In order to avoid mistakes when buying a Butane combi boiler and not encounter problems later, you need to pay attention to some important points first.

Of course, if you are not able to buy a suitable combi boiler for your home or any space where you intend to use this device, you will not get the proper performance from the wall-mounted combi boiler you need.

The area of the space, the type of chimney, the type of heat exchanger of the device, the amount of hot water consumed by the building, the amount of heat capacity required, etc. are some of the points that must be considered when buying a Butane wall-mounted combi boiler.

Here at the DamaTajhiz HVAC store, technical information on dozens of models of various Butane wall-mounted combi boilers, with original warranty, is provided for you to enjoy an optimal and smart shopping experience.

The Price of Butane Combi Boilers

The price of a Butane wall-mounted combi boiler varies based on different factors. Prominent brands such as the Butane have designed and manufactured various models of wall-mounted and standing combi boilers, each of which has different capacities and various features.

Many people are confused when buying a combi boiler and do not know which model and price is effective for them.

Because they do not have enough information in this field, in addition to technical information, you can also see the price of various combi boilers in the DamaTajhiz HVAC store.

All Butane combi boilers offered in the DamaTajhiz HVAC store have reasonable prices, and the discounts desired by consumers are included in these prices.
