G-Plus Ducted AC

If you are interested in selecting a G-Plus ducted system among various brands, stay with us and learn more about different G-Plus ducted air conditioner models in terms of capacity, technical specifications, warranty, pricing, etc.

G-Plus Ducted System Experts' Buying Guide and Price List

G-Plus ducted air conditioners are among the newest Iranian brands, introduced by the well-known Goldiran company. Goldiran, recognized for its association with LG products from South Korea, has recently started producing various electrical appliances, including air conditioning systems, under the G-Plus brand.

In 2018, after years of being an LG representative in Iran, Goldiran successfully launched its exclusive G-Plus brand in Iranian and Middle Eastern markets by utilizing skilled local experts and high-quality standard components.

G-Plus products from Goldiran include various air conditioning systems such as air conditioners, fan coils, ducted systems, air purifiers, and more.

In buildings where each unit has an independent HVAC system, the best method for air conditioning—if a suitable false ceiling is available—is using ducted systems. These units not only provide cooling and heating through a DX coil but also ensure a fresh air supply. Additionally, to reduce energy costs in winter, a hot water coil can be used.

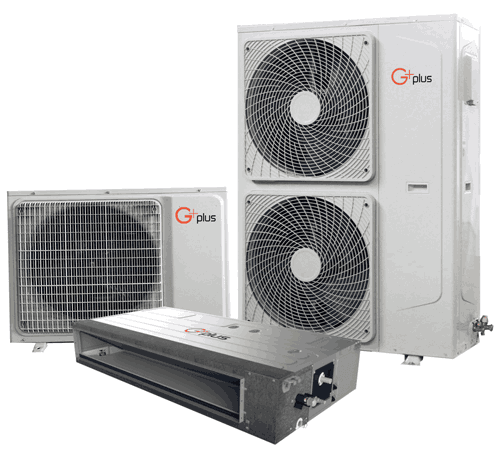

Types of G-Plus Duct Split

DamaTajhiz HVAC Co.; Engineering, Manufacturing, and Trading Company in the Middle East Since 2004
Review, Selection, and Pricing of HVAC Equipment

G-Plus Ducted Systems Technical Specification Table and Price List

The table below provides technical details and the best purchase prices for various G-Plus ducted systems.

Note: The power consumption (ampere) listed in the table represents the maximum electrical current usage of the unit in either cooling or heating mode.

  • Gplus Ducted AC Series K
Model capacity
(BTU/hr)
Compressor Type Power Consumption
(phase/ A)
Inverter Kit Indoor Unit Dimensions (mm)
Length x Width x Height
ٔNoise level - H/M/L
(dB)
Price
(Toman)

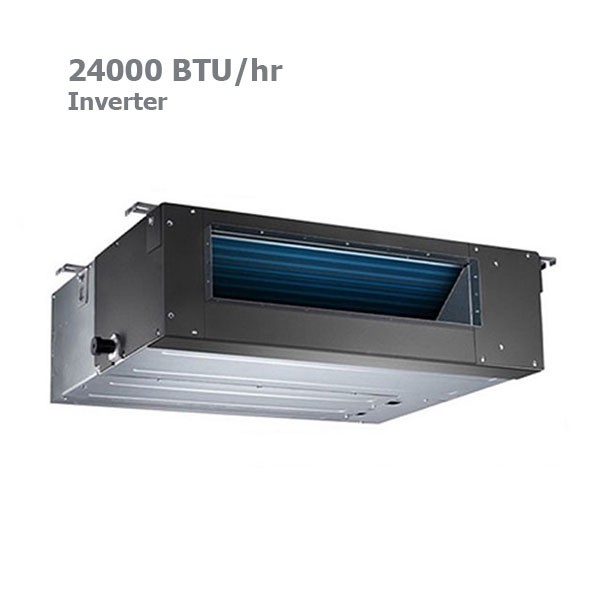

GCD-24K6HR3 24000 Rotary Single phase/ - Available 1140x210x450 39/37/29 Inquiry-based
GCD-30K6HR3 30000 Rotary Single phase/ - Available 1140x270x775 43/39/36 Inquiry-based
GCD-36K6HR3 36000 Rotary Single-phase/ - Available 1200x300x865 43/39/36 Inquiry-based
GCD-48K6HR3 48000 Rotary Single-phase/ - Available 1370x420x691 49/46/45 Inquiry-based
GCD-60K6HR3 60000 Rotary Single-phase/ - Available 1370x420x691 52/49/47 Inquiry-based
  • Gplus Ducted AC Series L
Model Capacity
(BTU/hr)
Compressor Type Power Consumption
(فاز/ A)
Inverter Kit Indoor Unit Dimensions (mm)
Length x Width x Height
Noise level - H/M/L
(dB)
Price
(Toman)
GCD-24L6HR1/I 24000 Rotary Single-phase/ - Available 1140x210x450 39/37/29 52,661,000
GCD-30L6HR1/I 30000 Rotary Single phase/ - Available 1140x210x450 39/37/29 62,828,000

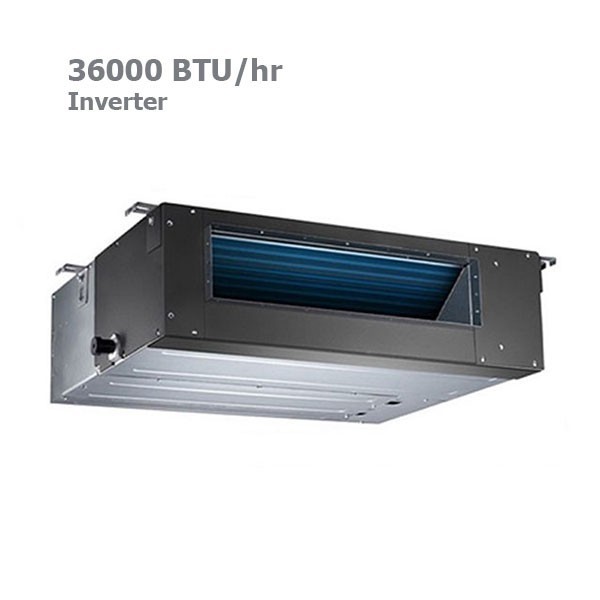

GCD-36L6HR1/I 36000 Rotary Single phase/ - Available 1140x210x450 39/37/29 68,679,000
GCD-48L8HR1/I 48000 Rotary Three-phase/ 5.8 Available 1370x270x700 49/46/45 94,772,000
GCD-60L8HR1/I 60000 Rotary Three-phase/ - Available 1370x420x691 52/49/47 109,445,000
  • Gplus Ducted AC Series P
Model Capacity
(BTU/hr)
Compressor Type Power Consumption
(
Phase/ A)
Inverter Kit Indoor Unit Dimensions (mm)
Length x Width x Height
Noise level - H/M/L
(dB)
Price
(Toman)
GCD-24PN6FHR1 24000 Rotary Single-phase/ - None 1140x210x450 39/37/29 39,355,000
GCD-30PN6FHR1 30000 Rotary Single-phase/ - None 1140x210x450 41/39/31 45,148,000
GCD-36PN6FHR1 36000 Rotary Single-phase/ - None 1200x300x865 43/39/36 52,925,000
GCD-48PN8FHR1 48000 Rotary Three-phase/ 5.8 None 1200x300x865 43/39/36 71,654,000
GCD-60PN8FHR1 60000 Rotary Three-phase/ - None 1200x300x865 47/45/43 81,062,000
  • Gplus Ducted AC Series M
Model Capacity
(BTU/hr)
Compressor Type Power Consumption
(Phase/ A)
Inverter Kit Inverter Kit (mm)
Length x Width x Height
Noise level - H/M/L
(dB)
Price
(Toman)
GCD-24MN6FHR3 24000 Rotary Single-phase/ - None 1140x210x450 39/37/29 Inquiry-based
GCD-30MN6FHR3 30000 Rotary Single-phase/ - None 1140x270x775 41/39/31 Inquiry-based
GCD-36MN6FHR3 36000 Rotary Single-phase/ - None 1200x300x865 43/39/36 Inquiry-based
GCD-60MN6FHR3 60000 Rotary Single-phase/ - None 1250x320x735 50/47/46 Inquiry-based
  • Gplus Ducted AC Series J
Model Capacity
(BTU/hr)
Compressor Type Power Consumption
(
Phase/ A)
Inverter Kit Indoor Unit Dimensions (mm)
Length x Width x Height
Noise level - H/M/L
(dB)
Price
(Toman)
GCD-48JN8HR1 48000 Rotary Three-phase/ 5.2 Available 1400x245x700 49/46/45 Inquiry-based
GCD-60JN8HR3 60000 Rotary Three-phase/ 6.3 Available 1370x420x691 52/49/47 Inquiry-based

G-Plus Ducted System Features

The specifications and features of various G-Plus ducted AC systems include the following:

  • Ability to connect to a hot water coil
  • Achieving the lowest noise level
  • Capacity ranges from 2 to 5 tons of refrigeration
  • Use of environmentally friendly R410A refrigerant
  • Equipped with two sensors for pressure and temperature control in the outdoor unit
  • Wide operating temperature range: -15 to 55°C
  • Energy rating A+ due to inverter compressor technology
  • Adjustable external static pressure via remote control
  • High piping flexibility between indoor and outdoor units (30 meters in height and a total of 50 meters)

Thousands of Products for Thousands of Projects (Since 2004)

G-Plus Ducted System Capacity Determination and Installation Guide

When determining the capacity and installing various G Plus ducted AC systems, consider the following points:

  • To determine the required capacity and number of G Plus ducted split AC systems for your project, please send the latest architectural floor plans of the units and floors of your building via fax or email to our experts.

  • Generally, when estimating the cooling capacity of the required ducted split system for each apartment in climates similar to Tehran, and on the middle floors of the building (which are not exposed to direct sunlight on the ceiling in summer or the cold of the roof in winter), approximately 1 ton of refrigeration (each ton of cooling equals 12,000 BTU per hour) is considered for every 30 to 40 square meters of the apartment's total and gross area.

  • Even if your apartment units are up to 200 square meters, you can still use single-phase ducted splits with a 50-amp power supply.

  • One important consideration when selecting and purchasing a ducted split is to consider their airflow volume. Typically, for every ton of ducted split AC capacity, a suitable airflow volume is 400 CFM. Naturally, if the airflow volume is lower, the ducted split AC will produce less noise, and if the airflow is higher, the noise level will be greater.

  • For further convenience, you can refer to the approximate calculation table below to determine the required ducted system capacity based on the stated conditions and calculation principles.

Ducted AC Capacity (BTU) For Middle and Ground Floor Units (m²) For Middle and Ground Floor Units (m²))
18000 up 45 up35
24000 up 60  up45
30000 up 80 up60
36000 up100 up80
48000 up130 up100
60000 up150 up130

Note: This calculation is approximate and only applies to residential apartments in climates similar to Tehran, with a ceiling-to-floor height of 2.8 meters, without considering the accumulation of people and latent heat increase, and without the use of high-energy-consuming electrical equipment It has also been provided without a glass facade or glass side, especially on the west side of the space or building in question.

  • After determining the capacity and number of ceiling-mounted ducted ACs required, their placement is determined based on various parameters such as the presence of a false ceiling, the possibility of ductwork, the method of piping the device to the outdoor panel, the way hot water pipes are installed to the heating coil, and the most suitable installation location regarding noise levels, etc.

  • The ductwork plan from the ceiling-mounted ducted ACs to each of the spaces (halls or rooms) is prepared and sent based on the most appropriate dimensions, passing above the false ceiling.

  • Considering frequent questions from residential unit developers regarding the cost of implementing distribution and return air ducts inside the units and copper piping between the internal ductwork and the outdoor panel, as a general estimate, the cost of execution can be considered approximately 20-30% of the initial purchase price of the ducted air conditioners (This is an approximate estimate and depends on various factors such as the length of the path, the distance between the internal and external panels, and other factors).

  • Before selecting and ordering any of the ceiling-mounted ducted ACs, please pay attention to whether the required power is single-phase or three-phase (Ø) and also the current (A) according to the power and specifications of the electricity meter of your unit.

Buying a G-Plus Ducted Split System

There are several important factors to consider when selecting and purchasing a ducted split system.

The first step in choosing the right ducted split AC unit is determining its type, capacity, and brand. It is important to note that calculating the required capacity should be done by a specialist or expert. Additionally, when purchasing a ducted split AC system, attention should be given to its power consumption and amperage.

Here at the DamaTajhiz HVAC store, you can find technical information on dozens of ducted split air conditioner models from reputable brands with official warranties. A price list is also available to help you make an optimal and smart purchase.

G-Plus Ducted Split System Price

Ducted split AC systems are generally available in two types: inverter and non-inverter. The inverter type is more expensive than the standard version, but its energy-saving feature can compensate for the higher initial cost over time. The capacity and brand of the ducted system are also key factors in determining its price.

It is worth mentioning that all ducted systems listed on the DamaTajhiz specialized website come with product identification codes and competitive pricing, with consumer discounts already applied.
