GarmIran Burner
Garm Iran burner is one of the well-known burner brands in Iran and the Middle East. Below, the types, selection method, technical specifications, models, and the price list of Garm Iran burners are presented.
Expert Guide to Selecting and Purchasing Garm Iran Burners
Today, the Garm Iran burner is widely used as one of the most common heating equipment in residential, industrial, and administrative spaces. Garm Iran burners are manufactured in various models and with different fuel types, including gas-fired, diesel-fired, dual-fuel, and mazut-fired.
The Garm Iran Manufacturing and Industrial Group began its activity in 1361 by designing and producing two types of residential gas-fired and diesel-fired burners. Currently, Garm Iran is active in the design and production of heating systems, wall-mounted and floor-standing packages, as well as more than 100 burner models operating on gas, diesel, mazut, dual-fuel, and multi-fuel systems, with capacities ranging from 40,000 to 10,000,000 kcal/h.
Garm Iran Company, as one of the first burner manufacturers in Iran, established its production plant in an area of 3,000 square meters, consisting of two production halls, in Khorasan Province.
Review, Selection, and Pricing of HVAC Equipment
Garm Iran Burners Based on Fuel Type
Garm Iran offers its burners in various models, with the main differences being fuel type and heating capacity. Below, all gas-fired, diesel-fired, and dual-fuel burner models produced by Garm Iran are introduced.
Garm Iran Modular Gas Burner Series
This type of Garm Iran gas burner features numerous characteristics, including very high efficiency and certification in accordance with EN676 and other reputable European standards. The modular gas burner is designed and manufactured using high-quality materials to ensure reliable performance and long-term operation with complete peace of mind.
The modular gas burner series is used in steam boilers, hot oil boilers, and industrial hot water boilers. Garm Iran burners provide a high level of combustion safety and are equipped with advanced two-stage technology utilizing a microprocessor, with optional modular operation capability.
Each Garm Iran burner undergoes a complete combustion test before leaving the factory. Other features of the Garm Iran modular gas burner include very low noise levels, remote control connectivity, and minimal weight and dimensions.
Garm Iran RS Series Gas Burner
Applications of the Garm Iran RS series gas burners include hot air furnaces, greenhouses, poultry farms, hot water boilers, paint lines, and more. One of the most notable features of the RS gas burner series is its very high efficiency, in addition to compliance with EN676 and other recognized European standards.
One of the unique advantages of the RS gas burner is flame adjustment via the CAM system, which regulates the gas and air ratio. The key distinguishing feature of this burner is its exceptionally high combustion safety, achieved through the use of premium materials and components in its design and manufacturing, ensuring long-term reliable operation.
Another reason for the safety and quality of Garm Iran gas burners is that a complete combustion test is performed prior to factory dispatch. General features applied to the RS series include compact dimensions, low weight, extremely low noise, and the ability to connect to remote control systems.
Garm Iran Dual-Fuel Burners – RLS and RLS/M MZ Series
The RLS series dual-fuel burner from Garm Iran is certified according to EN676, EN267, and other recognized European standards. As the name suggests, this burner operates on dual fuel and is suitable for furnaces, steam boilers, hot oil boilers, hot water boilers, and similar applications.
The Garm Iran RLS dual-fuel burner is manufactured using high-quality components, with strong emphasis on design and build quality, resulting in very high efficiency. Several features distinguish this burner from similar products, including ease of installation and commissioning, reduced noise levels through special design, and minimal weight and dimensions.
This burner is equipped with advanced two-stage microprocessor-based technology and offers a high safety level ensured by an advanced control system. A complete combustion test is conducted before factory delivery, allowing users to purchase and operate this product with full confidence and long-term reliability.
In addition to gas burners, Garm Iran also produces mazut-fired, diesel-fired, and multi-fuel burners, all of which offer the same high quality and efficiency characteristics.
Technical Specification Tables and Price List of Garm Iran Burners
The following tables present the technical specifications and price list of Garm Iran burners.
Garm Iran Gas Burner Table
The table below provides the technical specifications of various Garm Iran gas burner models along with their prices.
| Model | Maximum Heating Capacity Kcal/hr | Operation Type | Air Damper | Motor Electrical Specs | Relay Type | Minimum Gas Pressure m.Bar | Gas Line Diameter in | Device Dimensions cm (Total Burner Length, Flame Tube Length, Total Burner Width, Flame Tube Diameter) | Price (USD) |

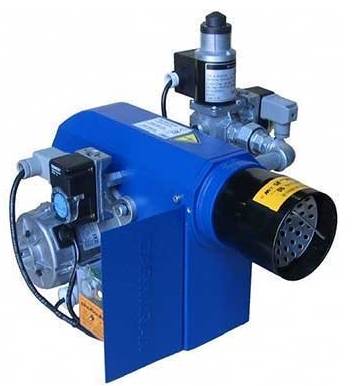

| GNG-50 | 53,000 | Single Phase | Manual | 1Ф ~ 100 W | Iranian | 20 | "½ | 41*11*27*8 | 155 |
| GNG-90A | 155,000 | Single Phase | Manual | 175 W | - | - | 3.4 | 51*17.5*38*11.5 | 232 |
| GNG-90/1 | 165,000 | Single Phase | Manual | 1Ф ~ 175 W | Iranian | 20 | "¾ | 57*14.5*39*11.4 | 237 |
| GNG-90/2 | 240,000 | Single Phase | Manual | 1Ф ~ 240 W | Iranian | 20 | "1 | 57*14.5*39*11.4 | 246 |
| GNG-90 | 110,000 | Single Phase | Manual | 1Ф ~ 125 W | Iranian | 20 | ½ | 42*9.5*34*9.2 | 185 |
| GNG-90/3 | 340,000 | Single Phase | Manual | 1Ф ~ 370 W | Iranian | 20 | "1 | 58*15.5*43.5*14.5 | 390 |
| GNG-90/4 | 400,000 | Single Phase | Manual | 1Ф ~ 450 W | Iranian | 20 | "½ 1 | 58*15.5*45*14.5 | 364 |
| GNG-90/4CS | 450,000 | Two Stage | Automatic | 1Ф ~ 450 W | G790 | 20 | 1/2 1 | 58*15.5*45*14.5 | Inquiry |
| GNG-90/4S | 450,000 | Two Stage | Automatic | 3Ф ~ 450 W | G790 | 20 | 1/2-1 | 58*15.5*45*14.5 | 455 |
| 5/GNG-90 | 500,000 | Single Phase | Manual | 1Ф ~ 750 W | Iranian | 20 | "½ 1 | 85*24*49*16 | 515 |
| GNG-90/5CS | 550,000 | Two Stage | Automatic | 1Ф ~ 750 W | Iranian | 20 | "½ 1 | 85*24*49*16 | Inquiry |
| GNG-90/5S | 550,000 | Two Stage | Automatic | 3Ф ~ 750 W | Iranian | 20 | "½ 1 | 85*24*49*16 | 765 |
| GNG-90/6S | 700,000 | Two Stage | Automatic | 3Ф ~ 1100 W | European | 20 | "½ 1 | 107*22*54*17.6 | 900 |
| GNG-90/6CS | 700,000 | Two Stage | Automatic | 3Ф ~ 1100 W | European | 20 | - | 107*22*54*17.6 | Inquiry |
| GNG-90/8S | 830,000 | Two Stage | Automatic | 3Ф ~ 1500 W | European | 20 | "½ 1 | 107*22*54*17.6 | 1056 |
| 10/GNG-90 | 1,000,000 | Two Stage | Automatic | 2,200 W | European | 20 | "½ 1 | 115*25*63*22 | 1330 |
| 10/GNG-90 | 1,200,000 | Two Stage | Automatic | 2,200 W | European | 20 | "2 | 115*25*63*22 | 1510 |
| 12/GNG-90 | 1,500,000 | Two Stage | Automatic | 3,000 W | LMG | 20 | "½ 1 | 115*25*63*22 | 1770 |
| 15/GNG-90 | 1,700,000 | Two Stage | Automatic | 3Ф ~ 4,000 W | LMG | "½ 1 | 115*25*63*22 | 1850 | |
| GNG-90/20-1950 | 1,950,000 | Two Stage | Automatic | 3Ф ~ 5,500 W | TMG-LFL-RMG | 30 | "2 | 143*25*65*25.5 | 2280 |
| GNG-90/20-2200 | 2,200,000 | Two Stage | Automatic | 3Ф ~ 5,500 W | TMG-LFL-RMG | 30 | "2 | 143*25*65*25.5 | 2380 |
| GNG-90/20-2450 | 2,450,000 | Two Stage | Automatic | 3Ф ~ 7,500 W | TMG-LFL-RMG | 30 | "2 | 143*25*65*25.5 | 2480 |

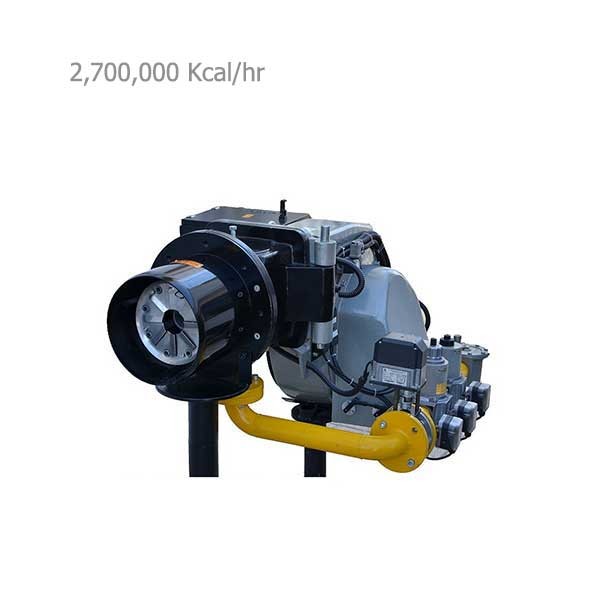

| 25/GNG-90 | 2,700,000 | Two Stage | Automatic | 3Ф ~ 7,500 W | European | 30 | "2 | 152.5*25*65*25.5 | 2590 |
| GNG-90/30-3000 | 3,000,000 | Two Stage | Automatic | 3Ф ~ 7,500 W | European | 30 | 1/2 2 | 152.5*25*65*25.5 | 2850 |
| GNG-90/30M | 3,300,000 | Modulating | Automatic | 7,500 W | - | - | 152.5*25*65*25.5 | Inquiry |
Warm Iran Diesel Burners Table
The table below provides the technical specifications of various Warm Iran diesel burners along with their prices.
| Model | Maximum Heating Capacity Kcal/hr | Power Supply V–Ф– | Combustion Type | Air Damper | Fan Motor | Relay Type | Price (USD) |
| GNO 50 | 55,000 | 220-1 | Single Stage | Manual | 90 | Iranian | 155 |
| GNO-90 | 120,000 | 220-1 | Single Stage | Manual | 125 | Iranian | 169 |
| GNO-90A | 155,000 | 220-1 | Single Stage | - | 175 | Iranian | 178 |
| GNO-90/1 | 165,000 | 220-1 | Single Stage | Manual | 175 | Iranian | 191 |
| GNO-90/2 | 240,000 | 220-1 | Single Stage | Manual | 240 | Iranian | 195 |
| GNO-90/20 | 2,200,000 | 380-3 | Two Stage | Automatic | 5,500 | Swiss | 1950 |
| GNO-90/25 | 2,700,000 | 380-3 | Two Stage | Automatic | 7,500 | Swiss | 2250 |
| GNO-90/30 | 3,300,000 | 380-3 | Two Stage | Automatic | 7,500 | Swiss | 2680 |
| GNO-90/40 | 4,400,000 | 380-3 | Three Stage - Multi Stage | Automatic | 11,000 | LFL-TMO | 3340 |
| GNO-90/50 | 5,300,000 | 380-3 | Three Stage - Multi Stage | Automatic | 15,000 | Swiss | 4210 |
| GNO-90/8 | 6,200,000 | 380-3 | Three Stage - Multi Stage | Automatic | 18,500 | LFL-TMO | Inquire |
Dual-Fuel Burners of Garm Iran
The table below presents the technical specifications of various dual-fuel burners of Garm Iran along with their prices.
| Model | Maximum Heating Capacity Kcal/hr | Operation Type | Air Damper | Electrical Specifications of Motor | Relay Type | Gas Line Diameter in | Price (USD) |
| GND-303 | 340,000 | Single Stage | - | 1Ф ~ 370 W | - | 1 | 575 |
| GND-s304 | 450,000 | Two Stage | - | 1Ф ~ 450 W | - | 1/2 1 | 919 |
| GND-s305 | 550,000 | Two Stage | - | 1Ф ~ 750 W | - | 1/2 1 | 1227 |
| GND-306 | 700,000 | Two Stage | Automatic | 1Ф ~ 1,100 W | - | 1/2 1 | 1350 |
| GND-308 | 830,000 | Two Stage | Automatic | 3Ф ~ 1,500 W | - | 1/2 1 | 1523 |
| 1000-GND310 | 1,000,000 | Two Stage | Automatic | 3Ф ~ 2,200 W | LMG | 1/2 1 | 1820 |
| GND320-1950 | 1,950,000 | Two Stage | Automatic | 3Ф ~ 5,500 W | - | 2 | 2950 |
| 1200-GND310 | 1,200,000 | Two Stage | Automatic | 3Ф ~ 2,200 W | LMG | 1/2 1 | 1980 |
| GND-312 | 1,500,000 | Two Stage | Automatic | 3Ф ~ 3,000 W | LMG | 1/2 1 | 2160 |
| GND-315 | 1,700,000 | Two Stage | Automatic | 3Ф ~ 4,000 W | LMG | 1/2 1 | 2310 |
| GND-325 | 2,700,000 | Two Stage | Automatic | 3Ф ~ 7,500 W | LFL-TMG | 2 | 3650 |
Damatajhiz; Thousands of Products for Thousands of Projects (Since 2004)
Features of Garm Iran Burners
The most important and essential features of Garm Iran burners include:
- Equipped with an advanced control system
- Equipped with mechanical fuel and air adjustment system
- Environmentally friendly
- Good thermal efficiency
- Low noise and quiet operation
- High-quality components
- Easy installation and maintenance
- Ability to connect to BMS system (in fully automatic models and high-capacity burners)
- Burners with capacity over 800,000 Kcal/hr require a separate electrical panel
- During installation, use a heat-resistant gasket to prevent heat transfer from the combustion chamber to the burner body
- Match the burner flange with the boiler door flange and install it using bolts and nuts
- Pay attention to the flame tube diameter to ensure proper installation on the boiler
- To prevent damage to the gas solenoid valve diaphragm in gas burners, a gas filter must be installed after the manual valve to prevent impurities from entering
- Gas piping must comply with standards; hose length should not exceed 1.5 m nor be too short to allow maintenance
- Since combustion efficiency is not fully complete, consider 20% higher burner capacity than the boiler capacity
- In general, after determining fuel type and proper capacity, ensure the flame tube diameter allows installation on the boiler
Choosing and Buying Garm Iran Burners
When selecting a Garm Iran burner, consider the fuel type and burner capacity. Before purchasing a burner, follow the mentioned guidelines; selecting without calculating capacity may cause problems.
Refer to the technical specifications table for heating capacity and details provided by Damatajhiz, and compare before purchasing.
Price of Garm Iran Burners
Damatajhiz provides technical information of dozens of diesel, gas, and dual-fuel burners from reputable brands with official warranty to ensure an optimal and smart purchase.
The price of Garm Iran burners varies depending on fuel type, burner capacity, and other factors; calculate required heating capacity, fuel type, technical specs, burner diameter, and heat output.
Prices in Damatajhiz are usually up-to-date and may include special discounts for consumers.
All Garm Iran burners come with 2 years parts warranty and 10 years after-sales service.
1Kw = 860 Kcal Kcal = 4 B.T.U
Kcal/1000 x 1.163 = Kw M³ x 35.3 = Ft³
