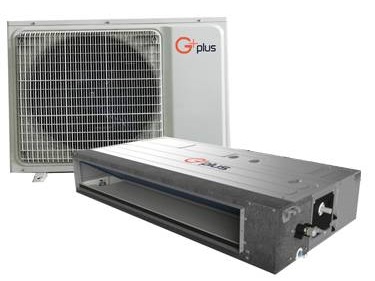

Gplus Inverter Ducted Split 36000 BTU GCD-36KN6HR3

Inverter Ducted Split GCD-36KN6HR3 Selection and Purchase Guide

Inverter Ducted Split Gplus GCD-36KN6HR3 is one of the newest models of Ducted Split Inverter in the air conditioning market, which is produced by a company named Goldiran under the Gplus brand and offered to domestic markets and Middle Eastern countries.
Goldiran Company produces Ducted Split G-Plus products based on modern world standards and using advanced machines and quality primary parts in capacities of 2 to 5 tons of refrigeration. G-Plus built-in roof ducted split with compact design can be installed in low height false ceilings.


Inverter Ducted Split G Plus GCD-36KN6HR3 is one of the models of Ducted Split G Plus that with a capacity of 3 tons of refrigeration is suitable for units up to 85 square meters.

In the reference and shopping website, Damatajhiz, the technical specifications and guaranteed prices of all types of G-Plus built-in ceiling ducted splits, with the main guarantee, have been provided for dear customers to create a good feeling of optimal and smart purchase.

Features of G-Plus GCD-36KN6HR3 Inverter Ducted Split

• G-Plus built-in ceiling ducted splits have the ability to control external static pressure. This feature easily adjusts the air volume via the remote control. The BLDC motor can control fan speed and air volume regardless of external static pressure. This way, no additional equipment is needed to control the airflow.
• Ducted Split G Plus has an inverter compressor that maximizes energy savings by adjusting power consumption according to the device's needs. This product has an A + grade energy category.
• Utilization of environmentally friendly R410a refrigerant gas
• The outdoor unit of Duct Split Inverter G Plus is equipped with 2 pressure and temperature control sensors.
• These devices use a corrosion-resistant heat exchanger of the Blue Fin type. The bluefins are made of aluminum and are equipped with a blue coating, which makes the aluminum coil metal resistant to corrosion. This feature makes GPlus duct splits suitable for areas with acidic and alkaline air.
  Possibility of long piping between indoor and outdoor units of Ducted Split 3 tons GPlus refrigeration (20 meters in height and a total of 30 meters)
• Inverter ducted split Gplus GCD-36KN6HR3 has the ability to connect to a hot water coil to supply hot air in the cold season.
• Has a wide operating temperature range from -15 to +24 degrees Celsius in heating mode and 10 to 55 degrees Celsius in cooling mode
• Equipped with digital remote control

Determining the capacity and installing the GPlus duct split

• In order to determine the capacity and number of GPlus ducts required by the project, first, send the latest architectural plan of your building units and floors to our experts via fax or email.
• Usually when initially estimating the cooling capacity of ducted split required for each apartment in climatic conditions such as Tehran and in the middle floors of the building (which are not exposed to sunlight on the roof in summer and the cold of the roof in winter), for every 30 or 40 The total gross area of the apartment is considered to be about one ton of refrigeration (duct split capacity) (per square meter of usable space is about 400 BTU / hr). Therefore, if the area of each unit of your apartment is more than 120 square meters, it is better to use two duct split units for each unit. Also, keep in mind that each 12000 BTU is equivalent to one ton of refrigeration.
• For apartments up to 150 square meters, single-phase ducted splits can be used, but with 32 amp power (some brands), and there is no need to request three-phase electricity (from the electricity company).
• If your apartment units are even up to 200 square meters, you can use single-phase ducted splits using single-phase but 50 amp power.
• According to our experts, builders for units above 200 square meters are required to obtain three-phase electricity according to the directive of Tavanir Company.
• One of the important points in choosing duct split is to consider their aeration volume, which is usually suitable for each ton of duct split capacity equal to CFM 400 aeration volume. Obviously, if the volume of aeration is less, the volume of duct split will be less and if there is more aeration, the volume of the ducted split will be more.
• For more convenience, you can also refer to the following approximate calculation table to determine the required duct split capacity, according to the conditions and basics of the above calculations:
