KROHNE Rotametry Flowmeter H250-M9

Guide to choosing and buying Krone Rotametry Flowmeter H250-M9

KroHne H250 variable cross-section flowmeter for measuring the volume or mass flow rate of liquids, gases, and steam is an all-metal flowmeter that works based on the principle of buoyancy measurement. The vertical position depending on the current of the float in the measuring tube is communicated to the display screen by a magnetic coupling system in the scale. The flowmeter is installed in a vertical pipe with flow from bottom to top. Due to its rugged and rugged design, this product's variable cross-sectional area flowmeter is especially suitable for applications and harsh environmental conditions. On the M9 display, the vertical position of the float is transmitted to the hand/magnetic system and the current value is displayed directly on the scale.

Features of MADECO Glass flowmeter or rotameter MDRT10

• Can be used in all environments with corrosive gases or liquids
• Can be used for all conducting and non-conducting gases or liquids
• Suitable for use in applications where the possibility of disconnection and connection of electrical energy is very high
• Suitable for use in the food and pharmaceutical industries
• H250 M9 series variable cross-sectional area flowmeter is capable of withstanding pressure and high temperatures and other adverse environmental conditions due to the use of a strong and solid body design.
• Also, due to the use of a structure with a versatile design, it can be used for all conductive or non-conductive liquids or gases. H250-M9 variable cross-sectional area flowmeter has the ability to measure volume flow in emergency situations due to the use of a magnetic analog display that does not require electricity.
• A simple and inexpensive display without the need for electricity, with large and suitable dimensions that gives the user a good view.
• Available as an option in three output models:
• with switch relays
• with analog or network output (Hart or Profibus PA)
• 6-digit flow counter with the output signal
• Has an international certificate for use in hazardous and harmful environments (ATEX, FM, CSA, NEPSI) and nuclear environments (N/NPT stamp)
• Can be ordered in stainless steel for use in corrosive environments
• Ability to work for long periods of time with high precision
• The ability to connect to all types of connections, including EN (DN15-DN100), ASME, and JIS, and screw and clamp connections
• Rotametry technology
• Measurement range for liquid fluid 120000 to 10 liters per hour (l/h) (water at 20 degrees Celsius)
• Measuring range for gas fluid 28000 to 0.7 cubic meters per hour (m3/h) (air 20 degrees Celsius, 1.013 bar)
• Measurement accuracy ± 1.6%
• Working temperature (+400)-(-200) degrees Celsius
• Suitable for liquid and gas working fluid
• Not resistant to corrosion
• Made in Germany

The originality of MADECO Glass flowmeter or rotameter MDRT10

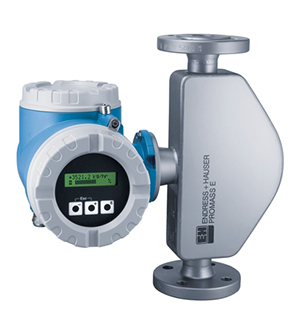

Damatajhiz confirms the originality and physical health of the ENDRESS HAUSER mass flowmeter model PROMASS 80E.
On the reference website and store of Damatajhiz, the possibility of buying all kinds of flowmeters is provided for you, dear customers, in order to create a good feeling of optimal and smart shopping of flowmeters.
