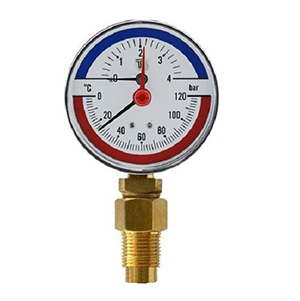

Thermometer Manometer TG Plate 8 CM Vertically
- Dry analog (connection from below)
- Temperature measurement range (Celsius): 0~120+
- Pressure measurement range (bar): 0~4 / 0~6 / 10~0 / 16~0
- Type of temperature sensor: Bi-metal Coil
- Suitable for measuring the temperature and pressure of hot water boilers
Purchasing Guide for Thermometer Manometer TG Plate 8 CM Vertically
Thermometer Manometer TG Plate 8 CM Vertically is a vertical 8cm TG manometer thermometer model, which is designed and produced to measure the temperature and pressure of hot water boilers.
In general, thermometers and manometers are a type of combined gauges (Combined Gauges) for simultaneous measurement of temperature and pressure in various industries and central heating systems and engine rooms, which have two different ratings, one for measuring temperature and the other for measuring pressure. TG manometer thermometer TG 8 cm vertical plate has a bar rating for pressure measurement and a Celsius rating for system temperature measurement.
Features of Thermometer Manometer TG Plate 8 CM Vertically
- Type: dry vertical analog has a plate with a diameter of 8 cm
- Type of connection: from the bottom
- Connection size: 1/2 inch
- Connection material: brass
- Temperature measurement range in Celsius: 0~120+
- Pressure measurement range according to load: 0~4 / 0~6 / 10~0 / 16~0
- Tail length: 6 cm
- Body material: steel
- Type of temperature sensor: Bi-Metal Coil

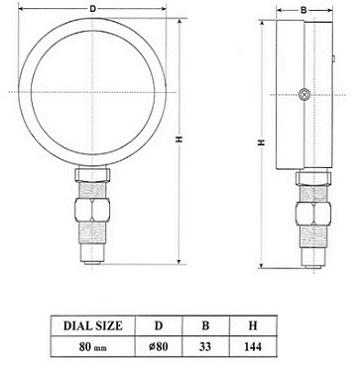

Dimensions of Thermometer Manometer TG Plate 8 CM Vertically
Warranty of Thermometer Manometer TG Plate 8 CM Vertically
The company confirms the authenticity and physical health of the Thermometer Manometer TG Plate 8 CM Vertically.
In the reference site and store of DamaTajhiz, all kinds of Manometers, with guaranteed prices, are provided for your dear ones, in order to create a good feeling of optimal and intelligent purchase of the Thermometer.
