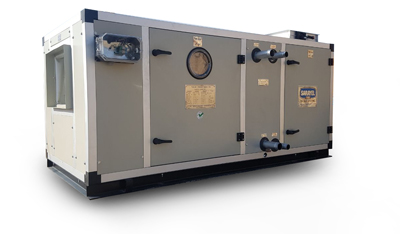

Sarayel Air Handling Unit with Heating and Cooling Coils

Contact information of Sarayel Nasim Company:

Head office address: No.14, Danesh mall, Taleghani St., Tehran, Iran
Contact number: +982156457145
Direct contact with the CEO: +989357260100

Email: [email protected]
Website: www.sarayel.com

Guide to choosing and buying a Sarayel air handling unit with heating and cooling coils

• Chilled water: EWT = 45 ̊F, LWT = 55 ̊F - 4Row Fin / inch = 8 FPI
• Hot water: EWT = 180 ̊F, LWT = 160 ̊F - 2Row Fin / inch = 8 FPI
• Sarayel air handling unit systems are designed and manufactured as conventional air conditioners and hygienic air conditioners (antibacterial) with vertical, horizontal, and L-shaped structures with cooling and heating coils with the ability to install all kinds of filters and UVC lamps.
• Sarayel designs and manufactures its devices from model 250 to 2200 as a whole and from model 2500 to 4000 in two pieces.
• The body of the device is made of a hot-dip galvanized sheet (HOT DIP) with a double-walled structure in the form of screws and nuts (with the ability to disassemble and re-assemble).
• The fans of the devices are of static and dynamic balance centrifuge type, at least decibels of sound and made of hot-dip galvanized sheet and equipped with anti-vibration.
• Electric motors of 55 IP protection class and F-class thermal insulation are selected in three-phase or single-phase according to the needs of reputable Iranian and European brands according to the customer's request.
• Power transmission system including FAST MONTAGE pulleys and LOCK TAPER BUSH technique with the possibility of easy disassembly and without the need for pulleys with American WOODS technique.
• Air mixer box with washable aluminum filter and fresh and reversible air damper with aluminum vanes.
• Possibility of access to the device, fan room, and filter room with hinged inspection door and polypropylene handle (with very convenient ventilation and very easy access).
