Iran Radiator Central Heating Boiler

If you're looking for the ideal option for heating and domestic hot water supply, using Iran Radiator Package could be the best choice. Below, you can read about the various types of Iran Radiator Packages, models, technical specifications, selection guide, and their suitable prices.

Specialized Guide on How to Choose and the Purchase Price of Iran Radiator

The production and supply of various Iran Radiator wall and floor-mounted packages began in Iran in 2004. Iran Radiator's gas-powered, wall-mounted and floor-mounted packages, including gas, diesel, and even dual-fuel models, have gained a significant share of the heating package market in Iran and even in the West Asia region. This success is attributed to the brand's strength, competitive prices, and excellent after-sales service.

Important Tips for Buying Iran Radiator Heating Package

• If the installation location of the package is on a balcony or in an open space, it is essential to use a fan-equipped package with an anti-freeze system.
• The city water pressure at the installation location of the gas package should be at least 0.5 and at most 3 atmospheres.
• If part of the flue pipe of the wall-mounted package is horizontal (more than 30 cm), it is necessary to use a fan-equipped package.
• Double-exchanger packages are used when the incoming water has high hardness (minerals) or when the apartment area exceeds 120 square meters.

Types of Iran Radiator Packages

In general, Iran Radiator packages are divided into two categories: analog and digital. They are produced and offered in the M, L, K, and ECO series with different heating capacities. The variety in models and capacities of Iran Radiator packages has made this equipment suitable not only for residential homes but also for many office and commercial environments. Customers can choose a heating package with an appropriate capacity for their space based on the unit’s area and the unique features of each type of Iran Radiator package.

It is worth mentioning that analog packages are labeled with the English letter (M), while Iran Radiator digital packages are labeled with the letter (L). In the following, we will introduce the series of Iran Radiator packages.

Note: Fan-equipped Iran Radiator packages are identified by the letters FF at the end of their names.

For example, L36FF means this package has a capacity of 36,000 and includes a fan.

Iran Radiator Package - M Series

This series of Iran Radiator packages does not include a display screen for showing information such as temperature, water pressure, etc. Instead, the device’s operation is adjusted and controlled manually. The M24FF and M24CF models belong to the M series of Iran Radiator packages.

Iran Radiator Package - K Series

The K series of Iran Radiator packages features two heat exchangers—one for supplying domestic hot water and the other for providing hot water for the heating system. An example of this series is the K24FF model.

Iran Radiator Package - L Series

The L series models of Iran Radiator packages include a digital display, allowing users to view information such as water temperature, internal pressure, and error codes.

Iran Radiator Package - ECO Series

The ECO series of Iran Radiator packages is equipped with advanced safety and electronic systems. The control panel allows users to adjust both the domestic hot water temperature and the heating circuit temperature. With high thermal efficiency, Iran Radiator's ECO series is suitable for units up to 140 square meters. These packages also include a fan and two heat exchangers.

Iran Radiator Dual-Heat Exchanger or Monothermic Package (Monothermic)

In general, Iran Radiator dual-heat exchanger packages are designed for locations where only space heating is required and do not provide domestic hot water. These packages use two types of heat exchangers:

1. Primary or main heat exchanger
2. Secondary heat exchanger

The main heat exchanger in the Iran Radiator wall-mounted package is responsible for heating the radiators. The heating system water is heated through this exchanger and then transferred to the radiators. However, to provide domestic hot water, the heating system water passes through the main heat exchanger via pumps and, instead of flowing to the radiators, it passes through a plate heat exchanger. Simultaneously, cold incoming water also passes through the plate heat exchanger. As these two water flows pass through the exchanger, heat is transferred from the hot water (heating circuit) to the cold incoming water, producing domestic hot water.

Since the domestic hot water in these packages does not come into direct contact with the burner flame, limescale formation on the inner surface of the plate heat exchanger occurs much later compared to single-heat-exchanger packages.

Note: In all the above models, the maximum heating water temperature is 85°C, the maximum heating circuit pressure is 3 bar, the heating circuit pipe diameter is ¾ inch, and the gas inlet pipe diameter is ¾ inch.

Bithermic Iran Radiator Package

In this type of package, a special heat exchanger called a double gas-water heat exchanger (Double Gas Water Heat Exchanger) is used. The structure of this exchanger allows both domestic hot water and the heating system water to pass through it and, after being heated, to be delivered to the radiators.

To supply domestic hot water, when the water tap is opened, the device's pump, which circulates the heating system water, stops, and only the incoming cold water enters the heat exchanger. It is then heated by the burner flame of the package and finally delivered for use, functioning exactly like an instant wall-mounted water heater.

In this system, controlling the temperature of domestic hot water is more challenging due to direct contact with the burner flame, causing slight fluctuations in water temperature during use.

Another limiting factor of this system is the early formation of limescale due to the direct exposure of the heat exchanger to the burner flame.

Types of Iran Radiator Packages Based on Installation Location

Iran Radiator heating packages are generally divided into two main categories based on their installation location: wall-mounted packages and floor-standing packages. Each of these types of packages has its own specific features and advantages.

Wall-Mounted Iran Radiator Packages:

Easy Installation: These packages are easier to install compared to floor-standing packages due to their smaller size and lighter weight.

Space-Saving: Due to their small size, these packages fit into limited spaces and are suitable for small locations and homes with limited space.

High Efficiency: These packages are primarily suited for small to medium-sized heating systems with lower power requirements.

Floor-Standing Iran Radiator Packages:

Higher Power: These packages typically have higher power and are more suitable for heating large spaces and complex heating systems.

Suitable for Larger Locations: Due to their larger size and heavier weight, these packages are mainly installed in larger spaces.

Suitable for Central Systems: These packages are generally used in central heating systems and can serve multiple points with different temperatures simultaneously.

In addition, each of these categories includes different models and types of Iran Radiator packages with varying features and capacities. The choice of package depends on the heating needs of the installation location, the size of the area, and the desired heating system. Additionally, it is important to refer to the manufacturer's instructions and technical specifications for the installation of each package.

ٰTable for Reviewing and Comparing Technical Specifications and Purchase Prices of Iran Radiator Packages

The table below provides the technical information and the best purchase prices for Iran Radiator wall-mounted and floor-standing packages.

• جدول مشخصات فنی و قیمت پکیج های دیواری ایران رادیاتور سری L

• جدول مشخصات فنی و قیمت پکیج های دیواری  ایران رادیاتور سری M

• جدول مشخصات فنی و قیمت پکیج های زمینی ایران رادیاتور سری E و K

• جدول مشخصات فنی و قیمت پکیج های ایران رادیاتور سری G ،Z و D

Advantages of Iran Radiator Package

The Iran Radiator package is undoubtedly one of the best Iranian packages that can be used in various locations. The advantages of the Iran Radiator package include the following:

• A good package is the best replacement for boiler rooms for providing hot water.
• It is even suitable for small homes and spaces.
• The Iran Radiator package can operate efficiently in terms of energy consumption.
• Installation of the package is free of charge through Iran Radiator's after-sales services nationwide.
• This package can instantly provide the required hot water at the proper pressure.
• Additionally, the Iran Radiator package has extensive and responsive after-sales services across the country.

Heating Capacity and Coverage Area of Iran Radiator Package

To approximately calculate the heating capacity of various wall-mounted and floor-standing packages required, we multiply the area of residential units by the number 150 (kilocalories), the area of office units by the number 100 (kilocalories), and the area of villas (due to open surroundings and roofs exposed to cold in winter) by the number 200 (kilocalories).

Example (Area * Kilocalorie number = Approximate required capacity):

For a villa with an area of 200 square meters: 40,000 kilocalories = 200 * 200

For an office unit with an area of 150 square meters: 15,000 kilocalories = 100 * 150

For a residential apartment with an area of 120 square meters: 18,000 kilocalories = 150 * 120

Buying Iran Radiator Boiler Package

The Iran Radiator boiler package is produced in various types and applications, including wall-mounted and floor-standing models, with fan or without fan, single heat exchanger, double heat exchanger, triple heat exchanger, analog and digital, in capacities ranging from 21,000 to 36,000.

Additionally, the Iran Radiator wall-mounted heating boiler is available in single heat exchanger and double heat exchanger types. Each type has various models based on capacity, type, fuel efficiency, required water pressure, and other factors.

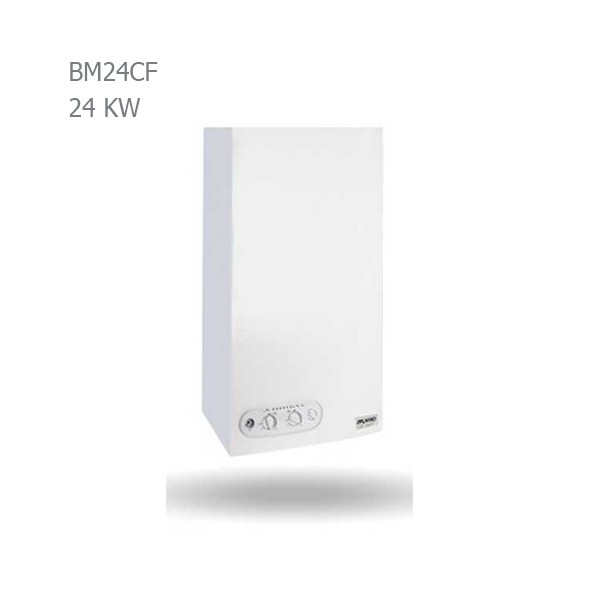

This classification aims to simplify the selection process for the right package for each consumer. ECO, K, M, and L models are double heat exchanger types, while BM series models are considered single heat exchanger models from Iran Radiator. It is also worth mentioning that each of these two models has FF series with fans and CF series without fans.

Best price for purchasing Iran Radiator wall-mounted and floor-standing packages, along with technical information and free installation + gift.

Price of Iran Radiator Boiler Package

The price of Iran Radiator wall-mounted and floor-standing boilers varies based on thermal capacity, coverage area, electricity consumption, and the number of heat exchangers used. You can make the best choice from among dozens of Iran Radiator models, both wall-mounted and floor-standing, based on your needs and budget, at the specialized DamaTajhiz store.

It is important to note that the prices of all Iran Radiator wall-mounted and floor-standing boilers offered at DamaTajhiz are up-to-date, and the desired discounts for consumers are included in these prices. This price list for Iran Radiator boilers also includes the section ensuring the best price at DamaTajhiz.

Important Considerations for Free Installation and Setup of Iran Radiator Boilers

The installation and setup of wall-mounted and floor-standing boilers must be performed by the authorized after-sales service of the manufacturer.

1. Carefully read the heating boiler catalog of Iran Radiator (included in the product box).
2. Examine and determine the installation location of the Iran Radiator boiler.
3. Use a double-walled flue (for fan-assisted boilers) during installation and execution.

Warranty of Iran Radiator Wall-Mounted and Floor-Standing Boilers

All Iran Radiator products come with a 24-month warranty and free installation (under approved conditions).

In the specialized and reference collection of DamaTajhiz, guaranteed technical information and prices of various wall-mounted and floor-standing Iran Radiator boilers with the original warranty are provided, offering you the opportunity for an optimal and smart purchase experienc

‌
