Damper motor

As you know, the main prerequisite for doing anything is to have proper information about that subject. In order to select, review the prices, buy, and learn more about damper motors, the following information is included so that you, dear visitors of the specialized website of DamaTajhiz, can use these tips to get enough information to choose and buy any burner damper motors from Honeywell, Conctron, Siemens, Belimo, etc brands in bulk.

Damper motor user manual

In general, the damper motor is a type of airflow blocker responsible for opening and closing or adjusting and controlling the amount of airflow passing through any path, such as the air max housing of the burner or even inside the duct and chimney, etc. For example, dampers are used to cut off the incoming airflow to a room or to adjust the amount of airflow in the ventilation channels to adjust the room temperature. It is used as one of the control tools in air conditioning. For example, when starting any blower heating device, it is necessary to make sure that the air damper is open because closing it is dangerous and can cause gas or fire. Or in the motor of smoke-sensitive dampers, there is a sensor that is sensitive to smoke and fire and, at a temperature above 70 degrees Celsius, issues the order to close the flow path.
Note that in single-stage domestic gas or diesel burners (with a gas fuel solenoid valve or a diesel fuel solenoid valve), the air intake to the combustion part of the burner (which is essential) is regulated only by the air damper. It is done manually in the air inlet of the burner, and there is no need for a motor damper or a servo motor. Join us in introducing and checking the performance of burner damper motors in the rest of this article (for wholesale purchase).

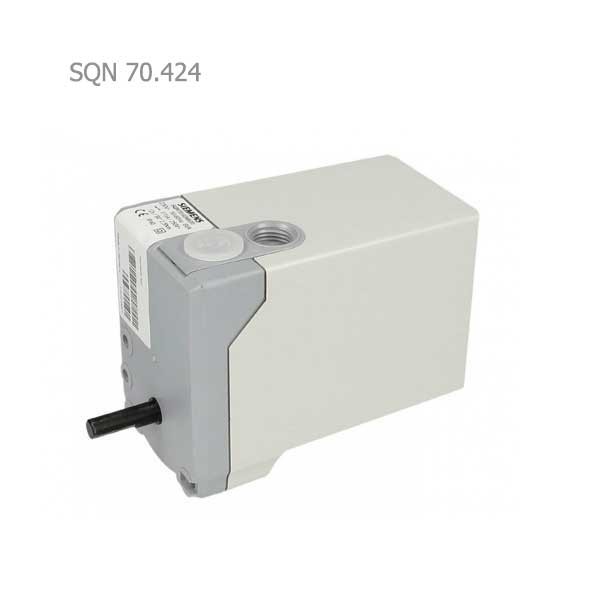

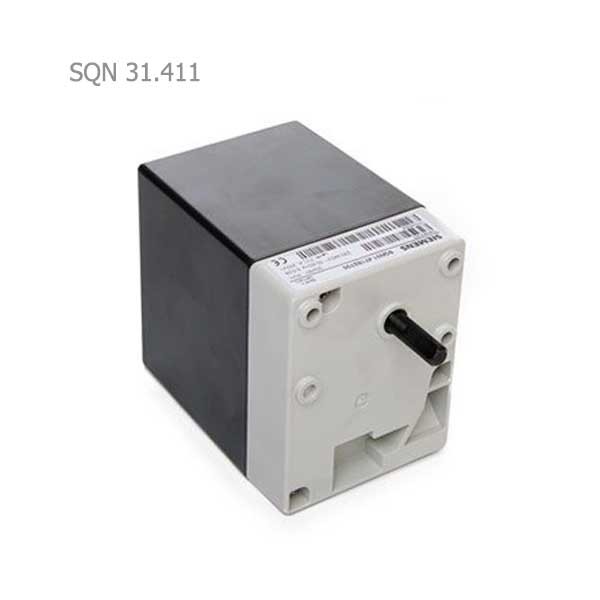

Burner damper motor

Types of damper motor (servo motor)

The types of damper motors are as follows:

Two-position damper motor with return spring

In this type of motor damper, in addition to the duty of opening and closing the damper, the motor also has another function; with this function, in emergencies such as a power cut, the spring in the motor causes the damper to be completely closed.

Three-position motor dampers

These engines have two positions, left-hand and right-hand, which are turned in the opposite direction in emergencies, and the damper is closed.

Progressive damper motor

The temperature and humidity control system is connected to these motor dampers in these motor dampers. It can gradually open and close the damper according to the issued electric command, which is handy in intelligent control systems.
Therefore, the dampers operate in two ways, manual and automatic (servo motor), in which manual dampers are controlled by the hand and external lever. In automatic dampers, the servo motor is used to control the damper.
Another type of damper is called a zone damper or seasonal damper, or volume control damper, which is used to control the cooling and heating system, and its function is electric. In this type of damper, the motor and the damper are connected by a mechanical coupling.

What is a damper motor?

The damper motor is a motor placed on the intake air damper. It performs the same function as the damper, with the difference that it operates automatically and can adjust the air damper to a pre-set amount.
The damper motor has two models: a return spring and a non-return spring, and both models operate continuously and continuously and control fluid flow. Each damper motor has a unique torque that is proportional to the type and strength of its damper. Return spring damper motors are primarily used in ductless dampers, air inlet and return dampers, disconnection and connection, and control of water and other fluids in various water and sewage industries and food industries.
One of the critical uses of smoke and fire dampers is to prevent the transmission of fire inside the ducting system and other areas. These motor dampers are equipped with smoke and fire-sensitive sensors that issue an order to close the airflow path when the temperature is above 70 degrees Celsius.

Manual damper and its function

Sometimes the dampers operate in a semi-open and closed form, such as the damper of the combustion air intake of the burners in domestic capacities or the manual damper in the fireplace, which is adjusted manually by a controllable lever.

In the motor damper group of the reference site and store of Damatajhiz, you can view the information and prices of all types of damper motors of the reliable brand Honeywell for review and selection.

In addition to a valid business license from the heating and air-conditioning trade union, Damatajhiz has an electronic trust symbol. It started operating its store site in 2013 in Tehran's head office.
