Havasaz air washer and air handling unit with special design

  1. Use of standardized modular parts
  2. Arrange the main components according to customer needs to reduce delivery time and cost
  3. Possibility to order a double-walled body with the injection of thermal and acoustic polyurethane insulation (1 to 2 inches)
  4. Has FORWARD or BACKWARD fans with static and dynamic balance
$0
Tax excluded
Quantity

0
New
View all products of همیار تهویه

Guide to buying the air handling unit and air washer of Havasaz company

The air handling unit and air washer of Havasaz company (Havasaz) can be ordered by using quality primary parts in aeration capacities of 1500 to 68000 cubic feet per minute (CFM) through the Damatajhiz website.
In general, an air handling unit is used as the main air conditioning equipment in residential, commercial, and hospital buildings, whose task is to provide air conditioning and healthy air with the possibility of controlling temperature and humidity in hot and cold seasons.
Air handling units usually consist of components such as structure, body, fan, electric motor, air filters, cooling and heating coils, dehumidifiers, inlet, and outlet air dampers, and return air and control equipment. If the cooling coil in the air handling unit is replaced with an air washer system including a water pan, submersible pump, and nozzles, this system becomes an air washer air handler.
The air handling unit of Havasaz company is able to meet the needs of integrated air conditioning systems in large construction projects by using standardized parts in the form of modular and arrangement of main components according to customer needs in order to reduce device delivery time and cost.

To view the technical specifications and more details for choosing any of the air conditioner models of Havasaz company, refer to the "Specification table" on this page.

Features of air washer and air handling unit of Havasaz company

  • By reducing engineering costs and manufacturing devices, Havasaz Company has provided the possibility of competing with similar foreign and domestic products.
  • The air handling unit and air washer of Havasaz company uses smooth and high-quality interior surfaces for easy cleaning and improving the quality of the exhaust air.
  • It is possible for the body and frame of screws and nuts to be made of galvanized, stainless steel, allogenic, or aluminum according to the customer's request.
  • It is also possible to order a double-walled body with an injection of thermal insulation and polyurethane acoustics (1 to 2 inches) with advanced injection machines and a fully automatic press.
  • Types of FIN & Tube coils (custom) with 3/8 inch, 1/2 inch, or 5.8-inch copper pipe with aluminum, copper, or aluminum coated fin and the possibility of ordering anti-corrosion coating, HERE SITE, BLY GOLD, GOLD FIN for all coils
  • FORWARD or BACKWARD fans with static and dynamic balance; the Possibility to order anti-spark fans and explosion-proof motors with ATEX certification from reputable Iranian and European brands
  • Airwashers can be ordered in classes 4, 6, or 8 with PVC or stainless steel drops.
  • It is possible to order Plate Heat Exchanger and Heat Wheel to recycle up to 90% of energy from exhaust air and transfer it to fresh air for environments with harmful chemical pollutants, dust, and unpleasant odors.
  • Possibility to order a wide range of special parts and components, including electric heaters equipped with thyristors, soundproof cabinets, all types of Hepa-Ulp activated carbon plate/bag filters, etc., Opposed Blade or Parallel Blade dampers with double-walled or single-walled blade made of Galvanized / stainless steel sheet with airtight rubber, dampers with extruded aluminum airfoil profile with gear mechanism (upon customer's request), Sand Trap (sand valve), water or steam humidifiers, PLC or DDC controllers

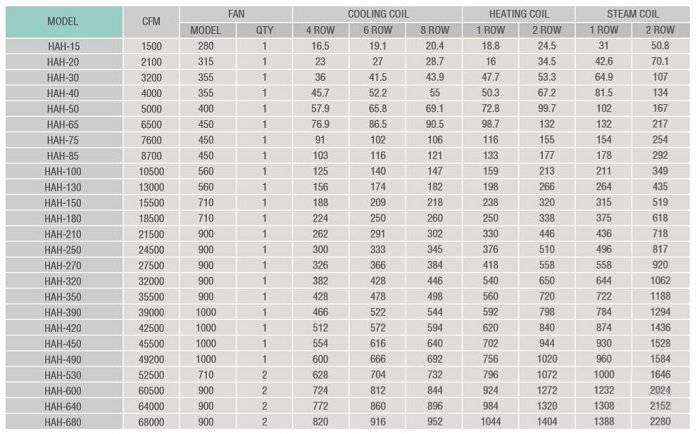

Table of capacity and models of air conditioner and air washer of Havasaz company

Havasaz air handling units' table of models and capacities

Warranty and after-sales service of Havasaz and Airwasher of Havasaz Company

The air handling unit and air washer of Havasaz have a 1-year warranty and 10 years of after-sales service.
