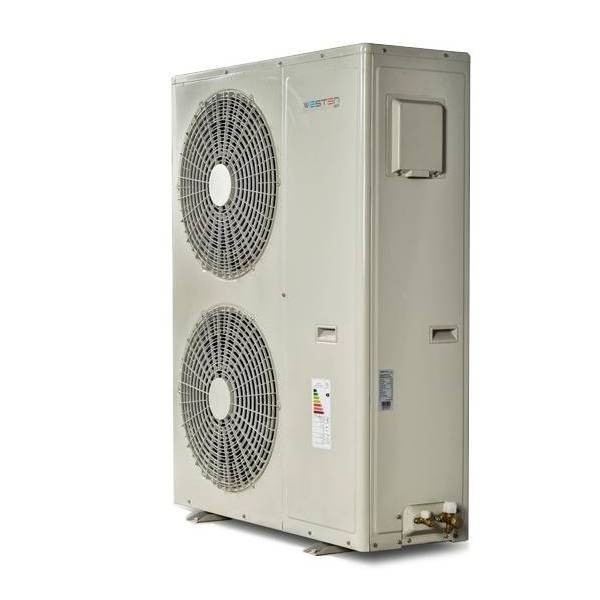

Westen Air Mini Multi Split 10 hp WVRF10P3T3/M

  • Capacity: 10 hp
  • Refrigerant gas: R410a
  • Fast cooling/heating, DC inverter system
  • Possibility of powering up to 12 indoor units
  • Operation in temperature range -15 to 52 ° C
  • Energy class: B
  • Power consumption: 3-phase 380v
Quantity

New
View all products of وستن ایر (westen air)

Guide for purchasing WVRF10P3T3/M mini multi-split Westen Air

The 10-horsepower WVRF10P3T3/M multi-split Westen Air is one of the Westen Air Mini-VRF models used to cool and heat buildings that require a central air conditioning system. In other words, for the installation and operation of VRF/VRV systems which is also included in this list of Westen Air mini-split, this type of central air conditioning system must be included in the building plan, and for this purpose, building engineers must have the latest architectural plan of units and floors. To determine the capacity and number of devices required to provide ventilation to the experts of Orien Tahvieh Company.

Westen Air Smart Multi Split 5 hp WVRF05P1T3

In general, the Westen Air Mini Multi-Split, which is produced in capacities of 5, 6, 8, and 10 hp, is considered as an outdoor unit of the central air conditioning system of the building, in accordance with its capacity, indoor units are selected to Complement this type of modern and advanced central ventilation system. It should be noted that the condensing capacity of the outdoor unit is equal to or less than the total capacity of the indoor units, which requires engineering calculations.

What is a multi-split system or VRF?

In general, the central split system, known in the world as VRF, consists of an external condenser that is usually installed on the roof of the building and a number of internal panels that are designed and produced in different types of built-in ceilings, walls, and shortcomings. This system, which is usually installed in large buildings and commercial centers, allows you to adjust the desired temperature in any of the building spaces.

The VRF/VRV systems, which are derived from the term Variable Refrigerant Flow and means "controlling changes in the volume of refrigerant", are advanced and engineered devices that are designed and implemented as the central air conditioning system of buildings.

As it is known from the name of VRF "Control of changes in the volume of refrigerant", the amount of refrigerant varies intelligently and separately according to the cooling and heating needs of the spaces and allows controlling the evaporation of refrigerant separately in different spaces of construction projects. To be. It is also possible to provide cooling and heating in construction projects through VRF multiplex systems by placing an external unit with the required capacity and feeding a number of indoor units of the same capacity.

In the VRF system, the amount of refrigerant temperature difference between indoor and outdoor units is minimized and the COP performance coefficient of the system reaches its highest value.

Mini Multi-Split Westen Air "Mini WVRF"

The Westen Air Mini Multi-Split or Mini-WRF Westen Air itself is a type of mini multi-split that is designed and manufactured in lower capacities and smaller dimensions than other VRFs. In this type of central mini-VRF system, an intelligent control system is also used; Therefore, the efficiency of the device is at its highest. In this way, according to the load required for each ventilated part, the steering control system adjusts the amount of refrigerant entering the indoor unit and the speed of the external compressor, and as a result, the amount of energy consumption in the system is minimized.

In this system, according to each part, information is sent to the central control board of the device through the thermostat, which is the first stage of control, and the central part of the steering control system calculates the compressor speed adjustment.

It should be noted that in mini-VRF systems, cooling and heating functions can be used simultaneously. Condensing unit or the external unit of the device uses one or more compressors (depending on its capacity) that all compressors can be variable speed or some of them are constant speed and the rest are variable speed; Obviously, in devices where all the compressors are variable speed, even at lower loads, high system efficiency can be used.

Features and Benefits of WVRF10P3T3/M Westen Air Mini Multi-Split

  • High COP performance coefficient and EER energy efficiency ratio
  • The all-DC inverter system of the device provides high capacity and efficiency and a wide range of operations by using inverter compressors with DC generators. The DC inverter compressor also uses a 180-degree sine wave digital technique to allow the motor to run smoothly and increase system efficiency compared to traditional control systems.
  • Has a high-efficiency heat exchanger
  • Utilization of four technologies to reduce energy consumption, which includes the ability to be modular to control energy consumption, compressor technology with the ability to adjust energy consumption, refrigerant technology with the ability to adjust energy consumption, and external unit technology with energy reduction technology.
  • Variety in the composition of outdoor units
  • The extensive operation of Westen Air mini-VRF systems in the temperature range of -15 to +52 degrees Celsius, makes it possible to use this system throughout the year and in different climatic regions.
  • Variable static pressure up to 110 Pascals, which is due to the optimized fan of the device, allows it to be installed in closed spaces.
  • Silent operation using fans equipped with CFD technology
  • Rapid cooling and heating with precise temperature control using two expansion valves
  • easy usage
  • It has an auto-start feature that allows the device to memorize the performance settings in the event of a sudden power outage and reset the system to the previous settings after the power is reconnected.
  • Economic performance that by activating this mode, the device maintains the lowest cooling temperature at +26 degrees Celsius and the highest heating temperature at +20 degrees Celsius.
  • Save installation space
  • Lack of oil balance pipe between outdoor units
  • It has an automatic start-up capability that when starting the device, the main board of the external unit can check the operation mode of the device and display the relevant error code. Finding an error during startup increases system reliability.
  • It is possible to automatically discharge and charge the refrigerant in this device so that when repairing indoor or outdoor units, the refrigerant can be emptied automatically and the outdoor unit can adjust the amount of refrigerant gas according to functional parameters such as temperature and pressure and adjust the technician. Inform the sufficient amount of charge.
  • One-button test that with a gentle push of the main board button, the external unit is able to check the overall performance of the device in cooling and heating mode, and there is no need to test the indoor units individually.
  • 360-degree pipe connection to facilitate installation operations
  • Black box function that allows memorizing performance parameters before an error and quickly and accurately finding error information; This feature makes the device accurate and easy to repair.
  • Rotating electrical control box that makes the device easier to maintain without having to open it.

To see other models and buy VRF/VRV systems click on the underlined words.

Warranty and after-sales service Westen Air Mini Multi-Split WVRF10P3T3/M

All West Air VRF systems have a 24-month internal parts warranty and a 5-year compressor warranty from the date of installation, along with a 15-year after-sales service.

In the reference site and DamaTajhiz store, the technical specifications and guaranteed prices of all types of Westen Air Mini VRF, with the main guarantee, have been provided for you to create a good feeling of optimal and mini purchase.
