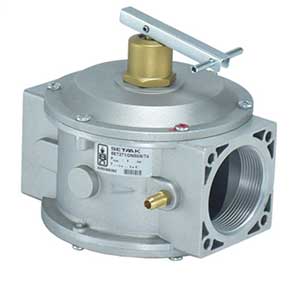

SETAAK Gas gear lever manual valve "2 Model SET271

Guidance for buying SETAAK Gas gear lever manual valve "2 -SET271

Stock Company is an Iranian company and knowledge-based company and one of the successful manufacturers of safety control equipment, including the SETAAK Gas gear lever control valve "2 Model SET271, which relies on up-to-date technical knowledge, and experienced specialists, as well as advanced machinery and equipment. Produces quality products in line with the highest global quality assurance standards.SETAAK Gas gear lever manual valve "2 Model SET271 allows the flow of fluid inside the pipe to be connected and connected manually. According to the mechanism used in this valve, the ratio Spherical ball valves do this faster and easier.
If the valve outlet has not yet been blocked by other gas line controls or has been dismantled due to maintenance, the internal structure of the valve is such that it is proportional to the inlet pressure to resist opening, which can be considered a safety feature. named.

Features of SETAAK Gas gear lever manual valve "2 Model SET271

• Weight: 2000 g
• Dimensions: 160 × 140 × 220 mm
• Device Model: SET271
• Connection size: according to customer's choice ("DN40" (Rp 1,1 / 2 or "DN50 (Rp 2)
• Connection type: thread (with request with separate flange)
• Type of gas: natural gas, liquefied gas, city gas, naphtha
• Working pressure - bar 6
• Temperature range: -15 to 60 degrees Celsius
• Standards: In accordance with the national standard of Iran INSO 22107
• Gasification classification: Group B, in accordance with paragraphs 3-8 of the national standard ISIRI 6800
• Pressure measuring point: Yes

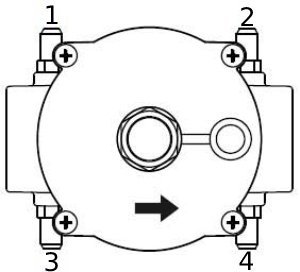

Schematic view (from above) of SETAAK Gas gear lever manual valve "2 Model SET271

As you can see in the figure below, the VMV series of Danfoss motor valves will have a diuretic or separator function if installed in the return path and a mixer or mixer function if installed in the return path.

Warranty and authenticity of SETAAK Gas gear lever manual valve "2 Model SET271

The company approves the originality and physical health of the SETAAK Gas gear lever manual valve "2 Model SET271.
