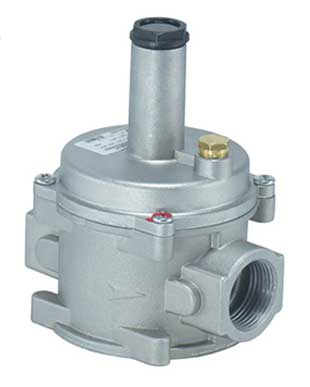

Setaak Gas safety valve gear 1" model SET150

Guidance for buying Setaak Gas safety valve gear 1" -SET150

(Stock) Iranian company and knowledge-based company and one of the successful manufacturers of safety control equipment, including gas safety valve (stock) gear "1 model SET150, which relies on up-to-date technical knowledge, experienced specialists, as well as advanced machinery and equipment products, Produces with quality and in line with the highest global quality assurance standards.
The SET150 low-pressure relief valve opens automatically when the pressure increases and relieves the pressure by draining the gas out of the gas line. Due to the spring, this control closes as soon as the pressure returns to less than the set limit. The use of a safety valve is definitely recommended when the gas speed in the gas line exceeds 30m / s. SET150 can be used for maximum input pressure up to 500 mbar.

Features of Setaak Gas safety valve gear 1" model SET150

• General requirements in accordance with the national standard of Iran INSO 22107
• In accordance with internal instructions WI-016
• In accordance with Section 17-11-2-6, Seventeenth Section of the National Building Regulations
• Temperature range - 10 to 60 degrees Celsius
• Type of gas: natural gas, liquefied gas, city gas, air
• Connection thread: DN25 (1 - Compliant with 10226 EN and 1-7 ISO
• Adjustable pressure range: 450 ~ 50 mbar
• Inlet pressure range: up to 500 bar

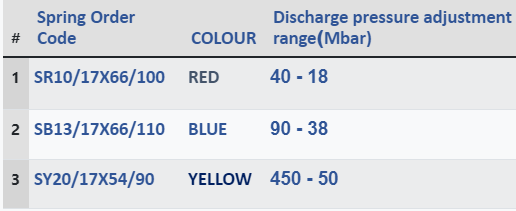

Spring selection table and pressure range of PSET adjustment

As you can see in the figure below, the VMV series of Danfoss motor valves will have a diuretic or separator function if installed in the return path and a mixer or mixer function if installed in the return path.

Warranty and authenticity of Setaak Gas safety valve gear 1" model SET150

The company approves the originality and physical health of the Setaak Gas safety valve gear 1" model SET150.
In the reference site and DamaTajhiz store, various types of motorized valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
