Shokouh Large Relay Base

  • Install direction: optional
  • Operating voltage: Maximum 400 volts
  • The maximum current in each terminal: 10 amps
  • Recommended ambient temperature: -20 to +60 degrees Celsius
  • Heat-resistant base body
$26
Tax excluded
Quantity

The minimum purchase order quantity for the product is 3.

0
New
View all products of شکوه

Guide to choosing and buying the Shokouh Large Relay Base

Shokouh Electronic Company is one of the successful manufacturers of monitoring and automation control equipment, including relay base, which produces quality products in line with the highest quality assurance standards, relying on modern European technical knowledge, experienced specialists, as well as advanced machinery and equipment.

Each burner relay or controller needs a base to be installed to connect to the burner assembly. The relay base is made of high-quality heat-resistant materials, which increases the life of the relay base. A large burner relay base is used for 20 burner base relays.

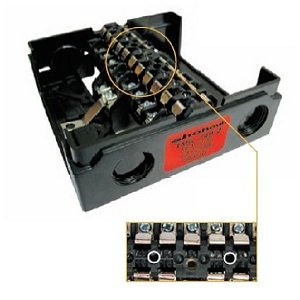

large Shokouh relay base

Basic features of large Shokouh relay base

  • In two models TMG and TMO for the corresponding controllers
  • It has 20 terminals
  • Non-flammable body
  • 3 ground terminals
  • 3 null terminals with an internal fixed connection
  • It has cable connection plates

Technical specifications of the glory relay base

  • Recommended ambient temperature: -20 to +60 degrees Celsius
  • Operating voltage: Maximum 400 volts
  • Install direction: optional
  • The maximum current in each terminal: 10 amps
  • Weight: 160 grams
  • Installation or replacement of the relay base should be done by experts and you should not bridge the base to each other

The originality of the base of the great glory relay

Damatajhiz company confirms the authenticity and physical health of the small relay base of Shokouh.

In the reference site and Damatajhiz store, all the prices of the burner relay have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
