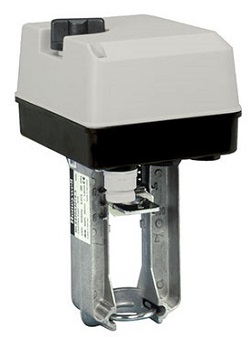

Honeywell electrical actuator gradual ML7420A6009

Guide for choosing and buying a Honeywell electrical actuator gradual ML7420A6009

Honeywell ML7420A6009 gradual electric actuator with the gradual operation and direct coupling is suitable for installation and operation of Honeywell two-way solenoid valves such as V5011S series and Honeywell three-way solenoid valves such as V5013R series.
Gradual Honeywell electric actuators with solenoid valves are among the most important control devices in air conditioning systems. The ML7420A6009 gradual Honeywell electric actuator has a direct input signal of 2 to 10 volts with a temperature operating range of -10 to +50 degrees Celsius. The maximum motion of the Honeywell ML7420A6009 electric actuator is 20 mm and its torque (or closing force) is 600 Nm. The power supply of this model is 24-volt AC Honeywell with 60-50 Hz and 5 V amps.

Characteristics of Honeywell electrical actuator gradual ML7420A6009

• Performance status: gradual
• Torque (or closing force): 600 Nm
• Maximum movement course: 20 mm
• Setup time: 60 seconds
• Input signal: (10-2) direct volts
• Power supply: 24V AC, 5VA
• Frequency: (60-50) Hz
• Temperature performance range: -10 to +50 degrees Celsius
• Moisture performance range: 5 to 95%
• Valve sizing range for installation: 1/2 to 3 inches
• Approximate weight: 1.3 kg
• Security standard: IP54
• Can be installed on Honeywell three-way and two-way valve
• Country of manufacture: Hungary
