DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

برق مصرفی تکفاز + رده انرژی A قابلیت اتصال به کویل آبگرم جهت تامین گرمایش گاز مبرد R410a و کمپرسور روتاری و فن سه سرعته (از نوع فوق کم صدا) دارای ابعاد کوچک و وزن کم (کمترین فضای موردنیاز برای نصب یونیت داخلی)
  • Function: Heating and Cooling
  • For the area of 30 to 50 m2 (according to the conditions)
  • The ability to connect to the hot-water coil for providing heating
  • Dimensions of internal unit(D, H, W): 750*295*1195mm
  • Power consumption: Single phase
  • Energy label: A
  • External static pressure: 1.5/4.2 MPa
  • Fan performance at medium, low, and high speed
  • Washable air filter

Pre-sale Services :

Engineering consulting
Calculating and Determining the capacity

Warranty and after-sale Services :

24 months DamaTajhiz golden warranty + 20 years technical support
$1,260
Tax excluded
Quantity

پرداخت اقساطی پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
New
View all products of دماتجهیز

Guide to Choose and Buy DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

If you want to buy and buy a normal split duct (split channel) or an inverter, without paying heavy costs, long delivery time, space price and lack of proper response of most traditional and old brands of the facility market, you have come to the right place and we sincerely thank you. Congratulations on this!
We hope that by reading the items presented below and contacting the experts of the air conditioning equipment department in the Demataghiz collection, you will get a suitable and satisfactory experience of buying from this dynamic collection.
24000 ceiling split duct, temperature equipment model DT.DS.24 with cooling capacity (btu/hr) 24000 is equipped with a fabric heating coil and a wall thermostat that works with single phase electricity and for use in spaces with 45 to 60 square meters square meter is suitable.
Split ceiling duct 24000 temperature equipment model DT.DS.24 using refrigerant gas R410a and rotary compressor, in addition to creating cold air, to provide heating in the cold season, it uses a hot water coil.
It should be noted that the 24000 Model ceiling split duct is designed and manufactured with energy class A (to prevent the increase in electricity consumption cost).
Dematahheiz ceiling split ducts are produced in compliance with all principles and technical standards in ventilation capacities (CFM) 1700-400 for construction projects, residential and large and public buildings.
One of the important points in choosing duct splits is to consider their aeration volume, which is usually equal to 400 cfm of suitable aeration volume per ton of refrigeration.
Due to the type of compressor with low consumption and low ampere, the ceiling split ducts for heating equipment for apartments up to 130 square meters, single phase split ducts can be used with 32-ampere single phase electricity meters and there is no need for three-phase electricity demand.

DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

Features of DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

It is possible to ventilate several spaces with one device
Fan operation in three speeds: high, medium, and low
The use of resistant polymer fans (of the ultra-low noise type)
Equipped with fabric spa coil to provide ambient heating
Use of heat and sound insulation in the inner body of the device
Equipped with protective control devices for pressure, flow and phase control
It can supply fresh air through the fresh air channel
Equipped with a rotary compressor (main brand) with very low power consumption
It has small dimensions and lightweight (minimum space needed to install the indoor unit)
The low sound level of the device is due to the use of propellers with special designs and angles
Using inner-grooved copper pipes to increase the efficiency of the device
Complete test of cooling and heating coil with 300 psi pressure for leak test and pressure test
Suitable for use in very hot and tropical areas (Tropical) up to 52 degrees Celsius
It has a smart touchscreen digital thermostat (automatic cooling and heating control)
Equipped with an anti-fungal and washable filter with synthetic fibres for absorbing very fine particles with easy replacement

Technical Specifications of DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

Compressor:

  • Its compressor is a rotary manufactured by GMCC company with an IP54 international degree of protection and utilization of R410a refrigerant gas.
  • It should be noted that each compressor machine is equipped with a tracking code to detect the original compressor from counterfeit ones. All purchase documentation of the compressor from the mentioned company can be provided at the customer’s request.

Electromotor Fan:

  • It has a centrifugal fan made of metal (galvanized) with minimum decibels of sound, dynamic and static balance, metal volute and a three-speed single-phase electromotor.

Cooling Coil:

  • The type of this coil is Direct Expansion (DX) with 3 and 4 rows copper tubes of 5.8inch diameter, 0.5mm thickness as well as 10 fins per inch aluminium blades.
  • This machine is equipped with a distillation pan made of steel sheets with proper thickness and grading to transfer the distilled water on the DX coil the out of the machine.

Heating Coil:

  • It has a 2-rows heating coil with 3.8-inch copper tubes with appropriate thickness and 10 fins per inch aluminium blades.

How the coil of DamaTajhiz ceiling ducted split 24000 is made?

  • The coils of this company are made using the most advanced fully automatic machines. In comparison to other similar coils, they benefit from a high thermal exchange level due to the use of advanced fin plate technology.
  • Copper tubes are mechanically integrated by the expander machine with staggering sinus fins made of plate aluminium sheets so that any air gap between the fins and copper tubes will be eliminated.

Testing:

  • After production, all coils of DamaTajhiz ceiling ducted split 24000 is rinsed and degreased with special detergent and tested at 200psi pressure.

Distillation Pan:

  • A galvanized distillation pan with proper gradient is used in the DamaTajhiz ceiling ducted split to transfer distilled water on the surface of the cooling coil to the out of the device.

Body:

  • The body of the DamaTajhiz device is entirely made of a hot-dip galvanizing sheet with suitable thickness, which is completely screwed with the ability to assemble and re-assemble and polyester electrostatic powder colour coat.

Insulation:

  • Compressed Air flex (compressed polyethene with 3mm thickness) is used for the insulation of the device to prevent heat loss, cooling, and reducing the decibel of the device sound.

Filter:

  • Flat and washable filter that can remove particulates concerning its filtration type. In the structure of these filters, metal lace sheets are placed on each other.

Electric:

  • Internal cabling is accomplished by the company and the installed terminals on the outside of the device are ready for the installation of input power from the electrical enclosure.

Determining the Capacity and Installing DamaTajhiz Ceiling Ducted Split 24000 Model DT.DS.24

  • To determine the capacity and number of DamaTajhiz ducted splits required by the project, first, send your last version of the architectural plan of building units and floor through fax or email to our experts.
  • Usually, in the initial estimation of the required cooling capacity of the ducted split for each apartment in weather conditions like Tehran and the middle floors of the building (which is not exposed to radiation of sunlight to the ceiling in summer and cold roof surface in the winter), approximately one ton of refrigeration (the capacity of the ducted split) is considered for every 30 or 40 square meters of the total and impure area of the apartment (each square meter of useful space is about 400 BTU/hr).
  • Single-phase ducted splits with 32ampere electric power (some brands) can be used in apartments up to 150 square meters and it does not need to apply for three-phase electricity (from the electric company).
  • If the areas of your apartment units are up to 200 square meters, you can use a single-phase ducted split with 50ampere single-phase electric power.
  • According to what our experts have heard, manufacturers of buildings are obliged to receive three-phase electric power for units with more than 200 square meters area concerning the circular of Tavanir company.
  • Aeration volume is considered one of the important tips in selecting ducted splits. Usually, the appropriate aeration volume for each ton of capacity of the ducted split is equivalent to 400 CFM. The aeration volume and sound of the ducted split have a direct relationship. In other words, more aeration volume leads to a higher sound of the ducted split.
  • More easily, you can refer to the following approximate calculation table to determine the capacity of the required ducted split according to the conditions and foundation of calculations mentioned:

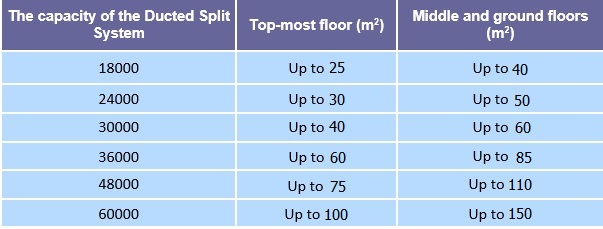

Ducted split capacity determination table

Note: These calculations are provided approximately and merely for residential apartments with weather conditions like Tehran, 2.8m distance from the ceiling to floor, without accumulation of people and increase in latent heat, without using high-consumption of electrical equipment and also without glass view or glass side, especially on the west of the space or building.

  • After specifying the capacity and required number of ceiling ducted splits, their location is determined based on various parameters such as the presence of a false ceiling, the possibility of channelling, the feasibility of implementing pipes of the device up to the outer panel, the possibility to run hot water piping to the heating coil, the most proper installation location in terms of the sound dummy (layout plan), etc.
  • The map of channelling from LG ducted split to any of the spaces (hall or rooms) is provided and sent based on the most appropriate dimensions and crossing the top of the false ceiling.
  • Given the frequent questions of residential buildings manufacturer regarding the cost of implementing the air distribution and returning channels inside the units as well as the implementation of copper tubes between the inner duct and outer panel, about 20% to 30% of the initial purchase price of ducted splits can be considered as a general estimation of their execution costs (This is an approximate estimation and it depends on various factors such as the length of the path, the distance between the external and internal panels, etc.).
  • Because ducted splits usually do not have a heating coil, it will be ordered to construct a hot water coil suitable for the capacity and dimension of the outlet mouth of the ducted split to provide the hot air required in the winter (by getting its cost).
  • Before choosing and ordering the purchase of a ceiling ducted split, you should consider its power requirements (single-phase or three-phase (Ø)) and the ampere (A) of its power consumption concerning the power and specifications of the power meter of your unit.

Warranty and After-sales Services of DamaTajhiz Ceiling Ducted Split DT.DS.24

DamaTajhiz Ceiling Ducted Split 24000 has a 24-month golden warranty of DamaTajhiz and 20 years of after-sales service.

Take a little time to scroll among the models and buy ducted split systems online with the best warranty and after-sale services at guaranteed prices.
