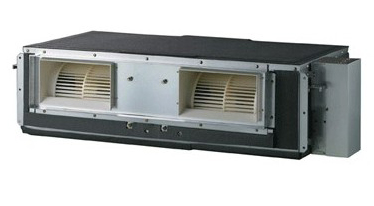

LG Inverter Ceiling Ducted Split 30000BTU AB-W30GM1T1

Purchasing Guide for LG Inverter Ceiling Ducted Split AB-W30GM1T1

1. LG Inverter Ceiling Ducted Split AB-W30GM1T1 is concealed on the top of the false ceiling of buildings and properly distributes cold or warm air in various places of apartments via canals connected therein.
2. Furthermore, LG Inverter Ducted Split equipped with Energy A Lable has the capability of saving more energy due to the use of refrigerant gas R410A
3. The main advantages of LG Inverter Ceiling Concealed Duct Split include the capability of ventilation of several spaces, the capability of piping with a high area between the internal and external unit (30 M. in height and 75 M. totally), usability at 48ºC in the summer and -15ºC in the winter, the capability of installation of hot water coil for heating and supply of fresh air, use of multi-speed crystals and drain pump by head cm70.
4. To determine the capacity and number of ceiling duct split required for the project, at first, send the final architectural plan of apartments and floors to the experts by Fax or Email.
5. After determination of capacity and number of required Ceiling Concealed Duct Split, their location shall be determined based on various parameters such as the existence of false ceiling, ductwork, execution of systems pipes up to the external panel, execution of hot water piping up to the heating coil and the most suitable installation location in terms of sound damping (location plan)
6. Plan of ductwork from Ceiling Concealed Duct Splits up to any space (hall or rooms) are prepared and sent based on the most suitable dimensions and displacement from top of false ceiling.
7. To supply hot air required in the winter, since duct splits usually are not equipped with a heating coil, production of hot water coil compatible with capacity and dimensions of duct split outlet shall be ordered (by a collection of a related sum)
8. Duct Splits are usually produced and assembled in Korea.
9. Before selecting and ordering for the purchase of any of the above splits, be careful about mono-phase and triple-phase electricity and ampere of its consumable electricity regarding power and properties of the electricity meter of your apartment.
10. To analyze the capacity of the required split, under climatic conditions such as Tehran, consider 400 to 600 BTU per an Sqm. For the middle floors of the building and (consider) 600 to 800 (BTU) per an Sqm. for the last floors due to the sunlight exposure.
11. LG Ceiling Concealed Duct Splits are provided with a 5-year warranty on the replacement of the compressor and a 2-year warranty for technical parts.


The points should be taken into consideration after purchasing LG Inverter Ceiling Concealed Duct Splits

1. After purchasing, for use of free of charge installation services, and warranty of split, contact permissible call Nos. inserted on the carton of the package (Please do not open carton before attendance of the authorized after-sale-services agent)
2. Max. length of interconnecting tubes(copper tube) between the indoor panel of Split up to outdoor condenser based on BTU is from 10 m. to 30 m.
3. During ductwork, emplacement of the air return chamber of duct splits should be as much as possible far from the sweeping chamber
4. Do not install the duct splits over the false ceiling of the bathroom or toilets.
5. To execute copper tubes in the height, use an oil trap for each 6 m.
6. Regarding the significance of determining the indoor air temperature and off and on panels of thermostat for duct split performance, determining thermostat emplacement is particularly signified, as a result, do not install the thermostat in a place exposed to direct sunlight or airflow, at the time of determining thermostat emplacement while observing 130-m. height from the floor
7. Remember that in case of nonuse of automatic air vent on the hot water coil of the split, deaerate duct splits every year at the beginning of the cold season
8. To buy ducted split products click on the link. By installing anti-reflux & anti-UV invisible covers on apartment glasses, avoid consuming energy irregularly due to overload of thermal radiation in the summer and cooling radiation in the winter.
