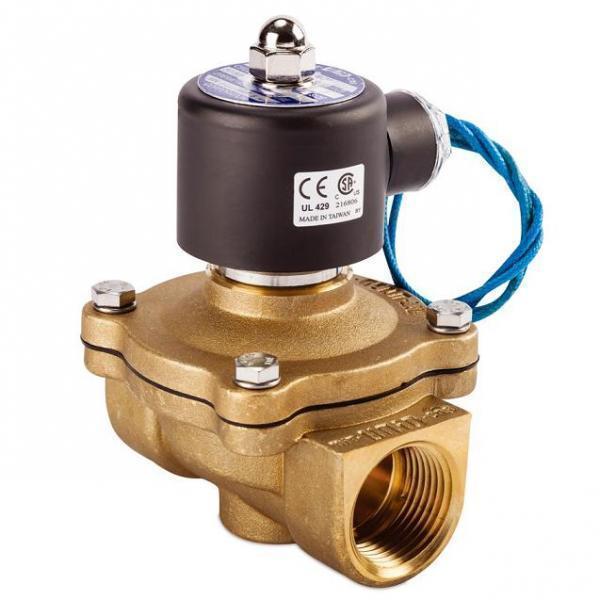

Unid water solenoid valve UW series size 1/2"
- Fluid type: water, air, and light oil
- Connection type: gear
- Working pressure range for air fluid: 0.5 to 7 bar
- Working pressure range for water fluid: 0.5 to 5 bar
- Working pressure range for light oil fluid: 0.5 to 5 bar
Guide for buying a Unid water solenoid valve (unid) UW series size"1/2
The UW size 1/2 solenoid water valve is installed directly and horizontally in the water supply network. This water solenoid valve has a connected diaphragm and, as its name suggests, is produced and marketed in 1/2-inch size. UW series UNID water solenoid valves are classified as Normally Closed valves, ie they are normally in the "closed" state and do not conduct fluid.
You can also use the UW Series 1/2 Unid Series Solenoid Valve at very low pressures, as they are designed to pass fluid at very low pressures without being damaged.
Features of UW series solenoid valve (size 1/2)
- Temperature range: 5- to +80 degrees Celsius
- Can be used for a variety of fluids such as water, air and light oil
- It has a 220V-AC coil
- Can be used in air conditioning and heating pipelines
- Made in China
- These products can also be supplied with 110V-AC, 24V-AC, 24V-DC and 12V-DC coils. Obviously, offering each of these coils will make a difference in the final price of these valves.
- The minimum working pressure is 0.5 times and the maximum working pressure in these products is 7 times.
- Fluids such as silicon (up to 130 ° C), Viton (up to 130 ° C) and EPDM (up to 130 ° C) can also be passed if the required standards are met and a more efficient product is ordered.
- Be careful, if the pipeline and water supply network are clean and free of any contamination, the durability and function of these solenoid valves will increase significantly.
- To prolong the life of this product, it is better to install the Y-Line in the front part of the electromagnetic valve.
- The power tolerance of these solenoid valves in direct current (DC) is equal to -1 and +1 percent and in alternating current (AC) is equal to -10 and +10 percent.
- UW size 2 solenoid water valve should be installed horizontally and its installation vertically is not recommended at all.
- In case of liquid fluid, the minimum temperature of the fluid is 5- and the maximum temperature should be 80 degrees Celsius.
- Note that these solenoid valves are not suitable for the passage of liquid fluid at very high temperatures and the passage of solids (liquids that contain solid particles).
- Failure to comply with piping standards will result in corrosion of liquids and improper passage in these valves.
- The UW series valves are not recommended if the viscosity of the fluid is more than 20 CST.

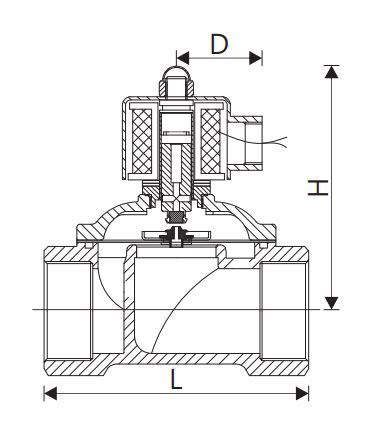

Technical schematic of UW water heater solenoid valve (size 1/2)
The dimensions of this product, according to the information given in the figure below:
D: Depth: 48 cm
H: Height: 100 cm
L: Length: 70 cm

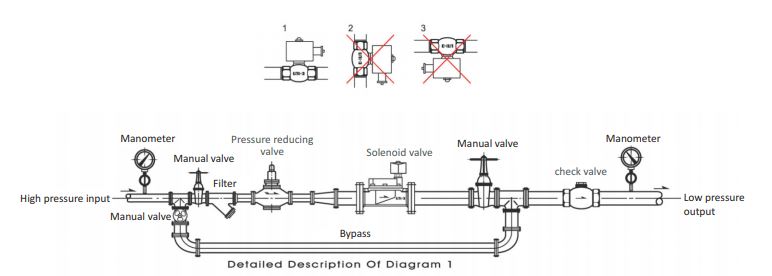

Location of this product in the pipeline

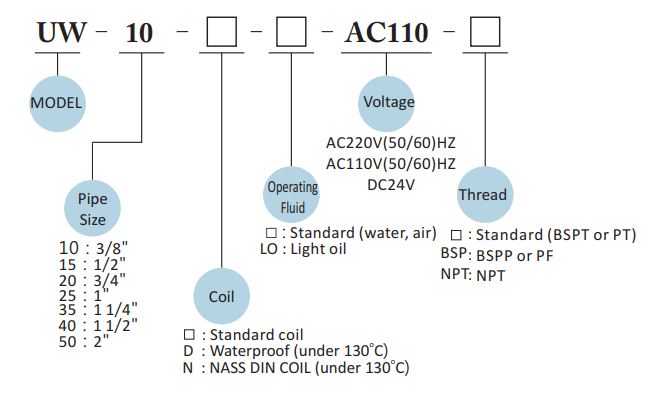

General information of UNID water solenoid valve UW series
Warranty and originality of UW series solenoid water valve (size 1/2)
The company confirms the physical health and authenticity of the UW size 1/2 series unid water solenoid valve.
