Fantini magnetic level gauge for pressurized systems A41

Guide to buying a Fantini magnetic level gauge for pressurized systems

Fantini Company is a manufacturer of magnetic level gauges and pressurized systems. Fantini is one of the successful manufacturers of precision instruments, relying on the latest technical knowledge of Europe, experienced specialists, as well as advanced machines and equipment, and high-quality products in line with the highest standards. It produces quality assurance in Europe.

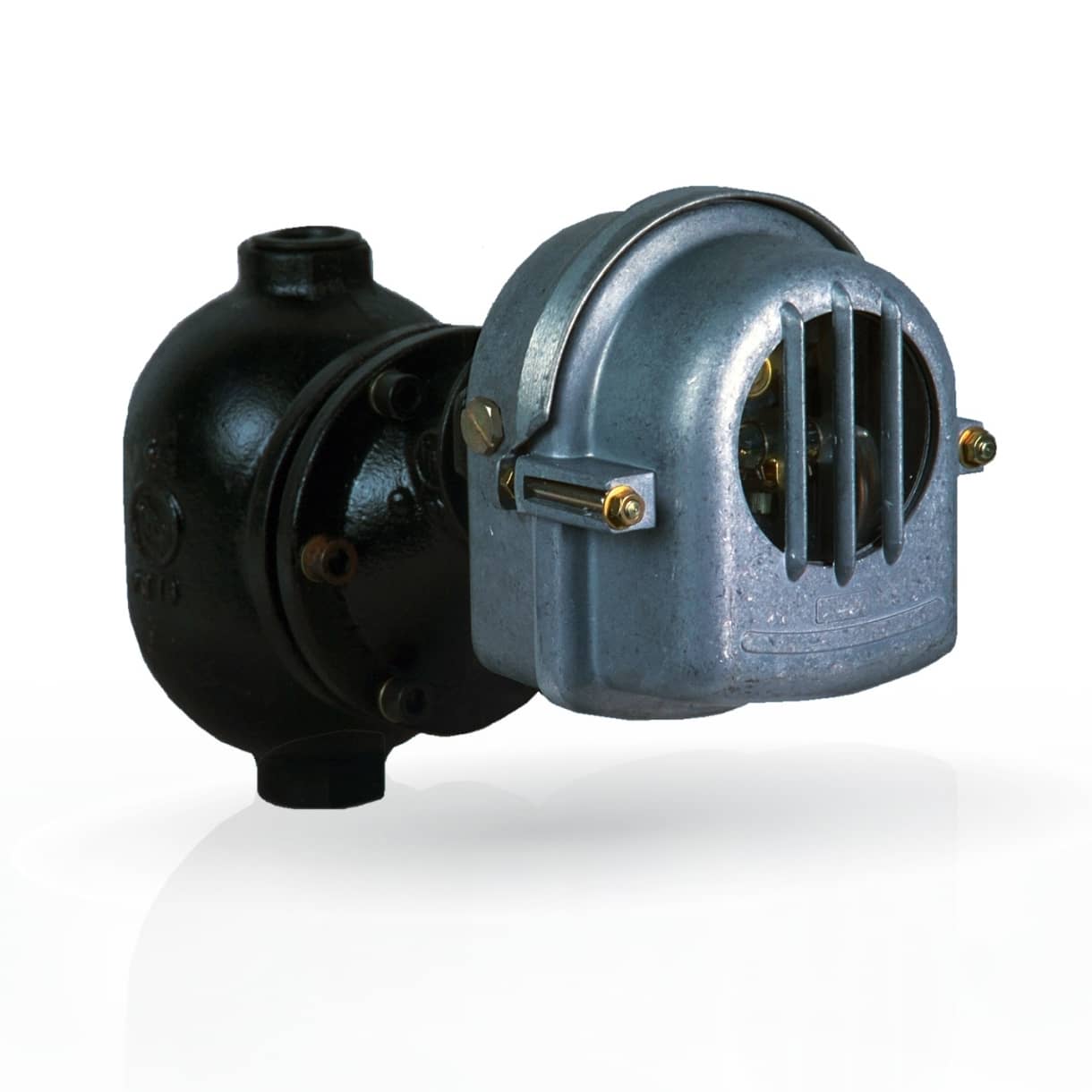

Fantini magnetic level gauge A41 for pressurized systems

Fantini magnetic control level of pressurized systems up to 16 bar is suitable for use in pressurized sources, autoclaves, and steam generators with control contact for supply pumps and with a minimum amount of level control. This type is also called "cow's head" in the market. Is known.

Fantini's magnetic level control for pressurized systems up to 16 bar has three models A42A, A41A, and A41B.

Among the features of magnetic level gauge A41, the following can be mentioned

• Model A42A
• Differential surface 15-50 mm
• Threaded connection type G1
• Cast iron body for float protection, 1-inch threaded connections
• Model A41A:
• Differential surfaces 25-50 and 25-75 mm
• Flange connection type
• Ball float and a flange with a pressure tolerance of up to 25 bar, made of stainless steel.
• Ball-shaped body made of cast iron with high density and anti-shock
• Model A41B:
• Differential surface 55-210, 65-305, 95-370 and 140-570 mm
• Flange connection type
• Ball float and a flange with a pressure tolerance of up to 25 bar, made of stainless steel.
• Maximum liquid temperature 200 degrees Celsius
• Maximum working pressure 16 bar
• Degree of protection IP54
• made in Italy

The originality of Fantini's magnetic level gauge

Damatajhiz company confirms the originality and physical soundness of Fantini pressure systems magnetic control level.

On the reference site and store of Damatajhiz, all kinds of magnetic level gauges of Fantini pressure systems have been presented to you, dear customers, to create a good feeling of optimal and intelligent shopping.
