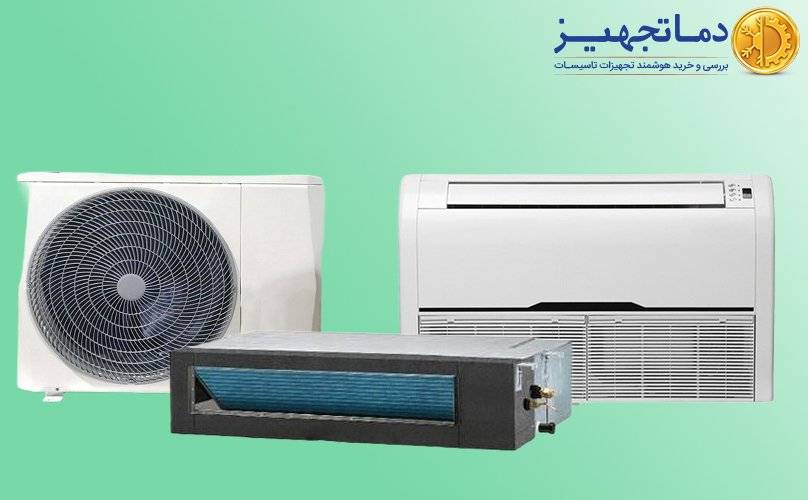

Fan Coil Unit vs. Ducted Split Comparison

Some people do not know exactly the difference between a fan coil and a split duct and they face problems and confusion when buying. If you are one of these people, read this article to understand the difference between a fan coil and a split duct. First, we will explain the split duct, then we will also explain how the fan coil works and its types, in this way, the differences and similarities between them will be determined.
Click to view brands, models, and different types, find out the price, and Buy A DUCTED SPLIT.

Ducted Split

Another name for split duct is split channel, which is one of the most common cooling and heating systems in apartments. The split duct generally consists of 2 parts, an internal unit (air conditioner) and an external unit (condenser), 2 copper pipes connect these 2 parts, and the required cold or hot air is supplied through the channels in each room or hall. Each apartment unit (inside the false ceiling) is distributed. Duct splits are generally used instead of multiple splits in a unit, that is, a condenser is installed outside the apartment and ventilates through ducts to different parts of the unit. By using split ducts, systems such as chiller, cooling tower, central engine room, radiators, and related piping can be removed. You can also benefit from the cooling and heating of this system at the same time. Duct split or channel split is usually produced in two models, ordinary split duct grade B and split duct inverter (low consumption) grade A.

Fan Coil

The fan coil is the smallest part of air conditioning systems, it is a temperature transfer device that performs cooling and heating using water, and its main components include a coil, motor, and air blower. There are different types of fan coils in terms of installation location, appearance, and type of use, which can be referred to as ceiling, wall, floor, ceiling, and channel models. Simple fan coils are generally produced as a single coil or two pipes and cannot simultaneously change from cooling to heating unless four-way solenoid valves are installed on them.

How the fan coil works

The way the fan coil works is by passing the air through the copper coil, which contains hot water in winter and cold water in summer, it provides hot air and cool air in different seasons of the year.

Types of fan coils

As mentioned, fan coils are produced in different types as follows.

Ground fan coil

The ground fan coil is produced and supplied with a ventilation capacity of 200 to 1200 cubic feet per minute (CFM) and releases cool or warm air in the form of an updraft or updraft.

Ceiling fan coil

Ceiling fan coils are usually installed on top of the false ceiling (at the entrance of each room). This type of fan coil is also offered in models without a cabin and with a cabin and has a ventilation capacity of 200 to 1200 cubic feet per minute (CFM).

Fan coil shortcoming

Another type of this air conditioning system is the fan coil, which is a type of ceiling fan coil, the coil part of this system is installed in the false ceiling and only its network is visible on the ceiling, the temperature and speed of its rotation can be controlled by remote control in addition to the room thermostat. Control can also be done. The ceiling fan coil ventilates in a one-way or four-way manner, and in terms of connected pipes, it has two-pipe and four-pipe types.

Wall-mounted fan coil

The wall fan coil also looks similar to air conditioner splits and is installed on the wall.

Ducted fan coil

The last type of fan coil is the channel fan coil which is produced in two vertical and horizontal models for large spaces and has a capacity of 600 to 2000 cubic feet per minute (CFM). So far, the article is about how it works and its types. We talked about fan coils, now we will introduce split ducts and their types, stay with us.
You can also read the article LOW CONSUMPTION AIR CONDITIONER AND DUCTED SPLIT for more information.

Final speech
