Iran Radiator Low Consumption Gas Burner GMG-110

Guide to Choose and Buy Iran Radiator Low Consumption Gas Burner GMG-110

Iran Radiator is one of the most highly-recognized active brands in producing heating equipment. This company has begun to produce burner since mid-1991. Desirable technical quality and significantly convenient after-sales service are some of the features of Iran Radiator products.

Iran Radiator Gas-fuel Burner works with urban natural gas and requires appropriate gas pressure based on its capacity and thermal power. The proper and required gas pressure for Iran Radiator Gas-fuel Burner (even up to 800,000 Kcal capacity) is equal to 1.4 pounds or 17.5 millibars (urban gas pressure) while this amount is considered to be equal to 2 pounds or 140 millibars (industrial gas pressure) for higher capacities.

Iran Radiator gas burner has introduced three types of home gas burner with different capacities which have low gas consumption, significantly low sound, easy maintenance, and high thermal efficiency (14% savings compared to the models with the same capacity). This model of gas burners is produced under the license of Drazer German Company in Iran.

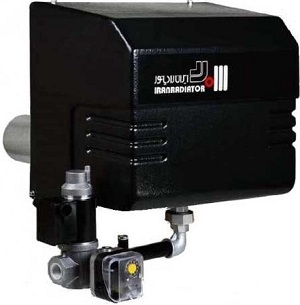

Iran Radiator Low Consumption Gas Burner GMG-110 is produced as the largest model with a thermal capacity of 190,000. Iran Radiator Low Consumption Gas Burner GMG-110 has a distinguished appearance and dimensions from other gas burners.

According to the investigations of the Iran Scientific and Industrial Research Organization, this burner has a lower fuel consumption of 14% in comparison with existing burners in the Iran market.

Features of Iran Radiator Low-Consumption Gas Burner GMG-110

• Maximum efficiency in steel and cast-iron boilers (due to the existence of six-branch flame and use of blower with high static pressure)


• Full stability of flame in all operating modes of the burner (because of preservative flame)


• Relative pre-mixed technology and branch flame


• The ability to function with natural gas and LPG


• Significantly easy maintenance


• Desirable performance with low gas pressure


• Extremely low sound


• LOW EXCESS AIR technology

When you want to choose this burner, you should pay attention to the diameter pipe of the muzzle brake of the burner to allow the possibility of entering this pipe into the boiler and installing the burner. It is essential to install the gas filter on the inlet gas pipe to gas burners.

Performance of Iran Radiator Low Consumption Gas Burner GMG-110

• A gas burner is designed for the combustion of natural gas. The required gas for the combustion in these burners is controlled by a solenoid valve after passing through a gas filter and the required air for their combustion is supplied by a blower installed on the engine axis.


• The discharge of the incoming air is controlled manually or automatically based on its capacity by the air damper installed on the body of the burner.


• The gas flow passes through a filter, then it is mixed with the combustion air and becomes ready for combustion. If the combustion air pressure is reduced less than a threshold or gas pressure becomes greater or less than the desired value, this will be felt by the embedded pressure sensors and then the burner is switched off by the pressure of air and gas switches through the relay command.


• In terms of performance, gas burners are divided into blower or fan and without a fan (fanless) (soundless). The burner of the apartment packages is silent (soundless) and non-blower gas burner.

Adjusting the Fuel and Air of Iran Radiator Gas-Fuel Burner GMG-110

• The fuel and air ratio must be precisely tuned for the fuel to burn completely. The more accurately this ratio is adjusted, the higher the burner combustion efficiency, and therefore, less energy is required. In small burners, the air adjustment needed for combustion of the burner is made by a manual damper. Still, this adjustment is provided by an automatic damper for the required combustion air in large burners. However, because the air temperature of the engine room boiler and its humidity varies throughout the year, the air damper must be readjusted each season in large burners. Today, modern burners have an intelligent PLC control system that automatically adjusts the ratio between fuel and air throughout the day and all seasons.

Due to the incompleteness of fuel combustion efficiency in burners and considering some heat losses, when choosing a burner, we consider the capacity of the burner to be about 20% more than the capacity of the boiler.

• The thermal value of each cubic meter of natural gas is approximately equal to 9200 K.cal.
• For every 300 meters increase in height from the door's surface or due to a decrease in air concentration, the fuel combustion efficiency of various burners is reduced by about 4%.

Visit the Dematjahiz website to learn more and buy a burner.

Warranty of Iran Radiator Low Consumption Gas Burner GMG-110

Iran Radiator Low Consumption Gas Burner GMG-110 burner has a one-year warranty Iran Radiator Company.
