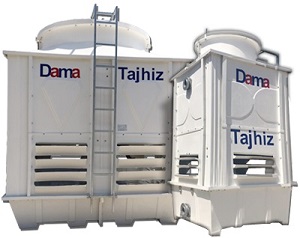

DamaTajhiz Fiberglass Cubic Cooling Tower DTC-CO 60

Guide to Purchasing a 60 Ton Fiberglass Cubic Cooling Tower

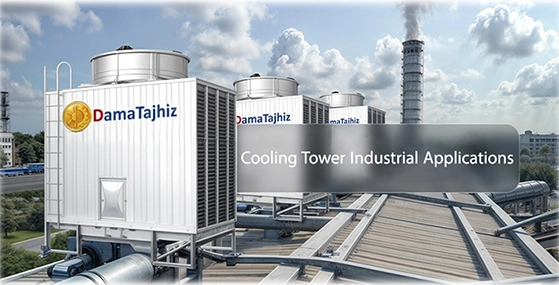

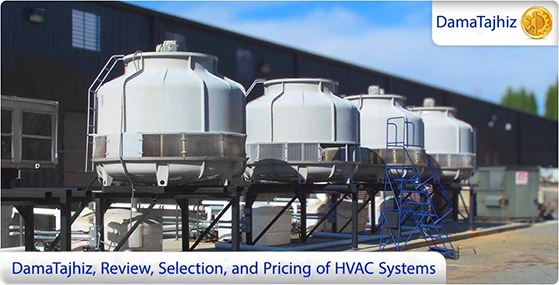

The design of the 60-ton fiberglass cubic cooling tower by DamaTajhiz is based on counterflow air circulation. In general, DamaTajhiz cooling towers are used to cool down water (reduce its temperature) in the condenser circulation of water-cooled HVAC systems, industrial processes, power plants, refineries, and more.
The DamaTajhiz fiberglass cubic cooling towers are manufactured in various capacities according to international standards and modern technologies. They feature suitable dimensions, sufficient fiberglass body thickness, and maximum packing volume. In addition, thanks to the latest technology in water spraying and distribution, these units provide superior performance, lower water consumption, and easier servicing compared to other models available in the market.

DamaTajhiz; Thousands of Products for Thousands of Projects (since 2004)

60 Ton Cooling Tower Performance

• As air flows through the cooling tower and cools the circulating water, a portion of the water inside the cooling tower evaporates. After cooling, the water collects in the basin at the bottom of the unit and is then directed by circulation pumps to the chiller or production process.
• Generally, the design and calculation of cubic cooling towers for HVAC applications are based on an inlet water temperature of 95 °F (ca. 35 °C), an outlet cooled water temperature of 85 °F (ca. 29 °C), and an ambient wet bulb temperature (W.B.T.) of 75 °F (ca. 24 °C).
• The minimum outlet water temperature of a cooling tower depends on the wet bulb temperature of the installation site during summer. Normally, the cooled water temperature is about 2.5 to 3 °C higher than the local wet bulb temperature (W.B.). For example, in Baku, where the summer wet bulb temperature is 23.8 °C, the normal cooled water temperature provided by the tower is around 26 °C.
• The 60-ton fiberglass cubic cooling tower by DamaTajhiz is a draft-induced type, where airflow circulation can be both natural and forced. Forced draft is achieved by an AXIAL fan located at the top of the tower.



Fiberglass Cooling Tower Casing and Basin

• The body parts of the DamaTajhiz cubic cooling tower, including the 60-ton fiberglass cubic cooling tower, are entirely made of reinforced fiberglass with high strength, coated with two outer UV-resistant layers.
• Fibers: The basic fibers used in DamaTajhiz cooling tower fiberglass parts are mesh type, reinforced with needle fibers to increase body strength.
• The body and basin parts are easily assembled for annual maintenance. The device’s auxiliary connections are made from non-metallic materials such as PRC-FRP-ABS or from stainless steel or aluminum.
• Resin: The resin used in DamaTajhiz fiberglass cooling towers is an unsaturated polyester resin (isophthalic type) branded BKC, certified by SGS with ISO9001 quality management. The specific resin code is 2200.
• The basin of the DamaTajhiz cooling tower is a one-piece FRP fiberglass structure with a thickness of 10 mm. To enhance its strength, it is manufactured with two extra reinforcing fiber layers compared to the panels, as well as two UV-protective vinyl ester gel coat layers on its inner surface.
• The fan used in DamaTajhiz cubic cooling towers is of Multi-Wing type.

Electric Motor of DamaTajhiz 60Ton Cooling Tower

The electric motors of DamaTajhiz fiberglass cubic cooling towers are mainly produced by Motogen factory, featuring IP54 protection and long lifespan.
The DamaTajhiz cubic cooling tower is designed and manufactured as a low-noise model, with standard sound levels. Ultra-low noise design and production are also available, making it different from other towers in terms of dimensions and cost.

Packings in Cubic Cooling Tower

• The 60-ton refrigeration capacity cubic fiberglass cooling tower by DamaTajhiz is equipped with two rows of net splash packings.
• To reduce drift or water droplet carry over from the top of the 60-ton cubic fiberglass cooling tower, PP eliminators are installed above the nozzles. These blade-type eliminators reduce water drift to less than 0.002% of the circulating water.

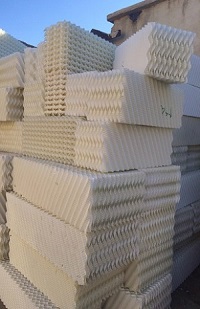

• The packing sheets in DamaTajhiz cubic fiberglass cooling towers are corrugated and stacked in a honeycomb pattern. The grooves are designed in a sinusoidal form, preventing clogging while creating an ideal surface for water film formation, fast evaporation, and increased contact area with air, thereby maximizing heat transfer. DamaTajhiz cooling tower packings are typically 19 mm film type made of P.V.C with a special antibacterial coating of pharmaceutical grade (FDA approved) with 400-micron thickness, or splash/random splash packings made of high-grade antibacterial pharmaceutical P.P with a thickness of 500 microns.

Water Distribution System in Cubic Cooling Tower

In the cubic fiberglass cooling towers of DamaTajhiz, the inlet water is directed through one or more central pipes made of polyethylene or P.V.C into water distribution nozzles, where it is evenly sprayed onto the packings. (Nozzle selection depends on the climatic conditions of the installation site and customer requirements.)

DamaTajhiz 60-Ton Cooling Tower's Supports

• DamaTajhiz cubic cooling towers comply with the mandatory O.S.H.R standards, and galvanized steel ladders are installed for safe access to the mechanical and electrical components of the tower.
• The support bases of the DamaTajhiz cooling towers are made of hot-dip galvanized steel.
• The fan stack support frame is made of 6 mm galvanized steel sheets, while the protective fan guard mesh is manufactured from hot-dip galvanized iron with a zinc coating thickness ranging from 83 to 110 microns. The motor support frames and bases are made from galvanized steel angles.
• The panel holders, tower base frames, and external supports are manufactured from hot-dip galvanized iron with a zinc coating thickness of 150 microns.

Eliminator or Drift Eliminator in DamaTajhiz Cooling Towers

To minimize water drift or droplet discharge from the top of the 60-ton cubic fiberglass cooling tower, PP blade-type drift eliminators are installed above the nozzles, reducing water loss to less than 0.002% of the circulating water.

Fiberglass Cooling Tower Fan Components

• Fan Arm: This component connects the fan hub to the blades and is made of galvanized carbon steel.
• Fan Blades: In DamaTajhiz counter-flow cooling towers, the fan blades are made of fiberglass reinforced plastic (FRP), offering superior chemical and physical durability compared to aluminum blades. Their smooth surface minimizes friction and air resistance. These blades are manufactured using isophthalic resin and premium-grade fibers.
• Fan Hub: Made of ductile cast iron in a coupling design, allowing easy assembly of the fan blades.
• Bolts and Nuts: High-strength dry bolts and nuts are used in fan assembly. For corrosive or acidic environments, stainless steel fasteners are employed.

DamaTajhiz; The Best Prices and Brands of Ventilation, Heating, and Building Facilities Equipment (Since 2004)

Cooling Tower Inverter or Variable Speed System

If you order the cubic cooling tower with an inverter system installed in the control panel, it will be possible to adjust the fan and motor speed to precisely control the outlet water temperature of the cooling tower. (When ordering the inverter system, a separate control panel must be provided for the tower.)
The inverter frequency adjustment is controlled by a sensor operating within a defined temperature range. Inverter operation is based on frequency variation, meaning the motor power remains constant. In cases where the outlet water temperature is not highly sensitive, a thermostat can be used to switch the motor on and off instead of an inverter.

How much Space Does a 60 ton Cooling Tower Take?

All cooling towers must be installed outdoors and exposed to direct airflow. There should always be enough clear space around the cooling tower to ensure easy access to fresh air. The hot air discharged from the tower should be vented in such a way that it cannot return or recirculate into the cooling tower. Recirculated hot air increases the wet bulb temperature, preventing the outlet water from cooling effectively.
In general, for towers up to 2.5 meters in height, approximately 0.1 m² of surface area is required per ton of refrigeration (in building applications) for every 50 m² of the building’s usable floor area. For towers taller than 2.5 meters, the required surface area is about 0.12 m² per ton of refrigeration for every 50 m² of usable building floor area. For the DamaTajhiz 60-ton cooling tower, you'll need 7 m² for every 50 m².

Carrying and Installation of Cooling Tower

• If the diameter of your purchased cubic fiberglass cooling tower exceeds 250 cm, it is recommended to transport the tower in separate parts to the project site to avoid damage during shipping. Final assembly of cooling towers larger than 250 cm in diameter will be carried out on-site with an additional assembly fee.
• If it is not possible to transport the cooling tower as a single unit to the project site or rooftop installation area, please request the cooling tower in disassembled (demontage) form at the time of purchase.
• All transportation costs and, if required, reassembly costs at the installation site are the responsibility of the buyer.

Order DamaTajhiz 60 Ton Fiberglass Cubic Cooling Tower with Warranty

The DamaTajhiz 60-ton cubic fiberglass cooling tower comes with a 15-month golden warranty and 10 years of after-sales service. At DamaTajhiz, the trusted reference for HVAC equipment, guaranteed technical specifications and prices of DamaTajhiz cooling towers with golden warranty are provided to ensure you a smart and satisfying purchase experience.
To view and check the warranty and technical specifications of different types of industrial and residential cubic fiberglass cooling towers, click on the “Technical Specifications” tab on each product page.

You can order any HVAC and MEP products, including different types of air washers, cooling towers, air handling units, chillers, industrial evaporative coolers, air curtains, burners, cast-iron or steel boilers, heat exchangers, gas heaters, unit heaters, circulation pumps, sand filters, water and fuel storage tanks, and more, from countries such as the UAE, Armenia, Tajikistan, Georgia, Azerbaijan, Turkey, Oman, Pakistan, Turkmenistan, Afghanistan, Kuwait, Bahrain, Qatar, Iraq, and others across Asia, the Middle East, and Europe, and have them delivered to your city (Manama, Baghdad, Karachi, Dubai, Sharjah, Muscat, Riyadh, Abu Dhabi, Kuwait City, Jeddah, Sana'a, and Doha Amman, Sulaimaniyah, Sofia, Kirkuk, Islamabad, Mosul, Erbil, Dushanbe, Aleppo, Damascus, Baku, Beirut, and Kabul) in the shortest possible time. So, don't hesitate to contact us by phone call or WhatsApp message through the number: +98-930-288-0251.
