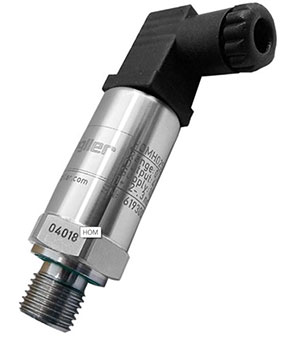

Hogller transmitter industrial pressure HOM series 5 pressure ranges
- Pressure range 0~600 bar (5 selection ranges for purchase)
- The output signal range is 4~20 mA
- made in Germany
Guide to choosing and buying Hogller transmitter industrial pressure HOM series 5 pressure ranges
Hogller transmitter industrial pressure HOM series 5 pressure ranges is one of the quality pressure transmitters made in Germany, which is suitable for measuring the pressure of all types of liquids and gases compatible with 304 stainless steel.
The HOT series piezoresistive sensor element is produced with the latest ASIC technology, which provides excellent performance, long-term stability, and various types of output signals for this series of pressure transmitters. In the main structure of this pressure transmitter, no silicone oil and internal sealing gaskets are used, and the pressure measurement reference is a gauge (atmospheric pressure).
Applications of Hogller transmitter industrial pressure HOM series 5 pressure ranges
- Monitoring of air pressure and types of gases
- Testing and laboratory processes
- water refinery
- Hydraulic and Pneumatic
- Air conditioning and refrigeration systems (HVAC&R)
- Leakage test
- Measuring the level of tanks
- Processing technology
Features of Hogller transmitter industrial pressure HOM series 5 pressure ranges
- Low-pressure transmitter
- Fluid temperature range: up to -40~85 degrees Celsius
- Pressure measurement range: 0~500 mbar
- Connection size: G 1/4
- Connection type: threaded
- The output signal range is 4~20 mA
- High electromagnetic compatibility
- Strong and robust design made of stainless steel
- Pressure measurement reference: gauge (relative)
- Silicon-based sensor cell
- High resistance to shock and vibration
- Error percentage: less than 0.5% FS
- Electrical connection: DIN EN 175301-803 C
- Protection standard: IP 65

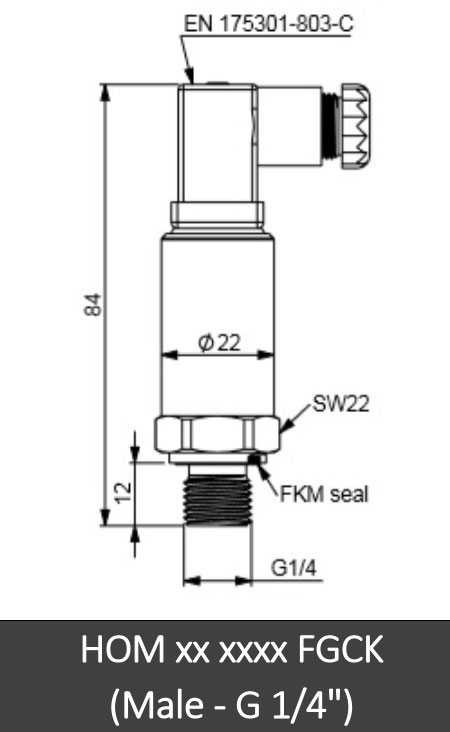

Dimensions of Hogller transmitter industrial pressure HOM series 5 pressure ranges
Warranty and after-sales services of Hogller transmitter industrial pressure HOM series 5 pressure ranges
DamaTajhiz company confirms the authenticity and physical health of the Hogller HOM series industrial pressure transmitter.
