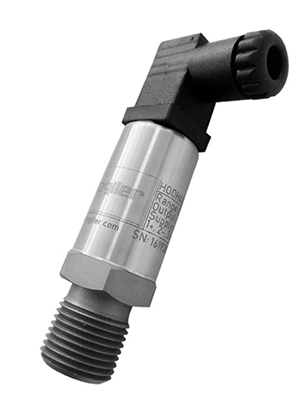

Hogller transmitter High pressure HOD series 3 pressure ranges
- Pressure range 0~4000 bar (3 selection ranges for purchase)
- The output signal range is 4~20 mA
- made in Germany
Guide to buying transmitter High pressure HOD series 3 pressure ranges
Hagler HOD series high pressure transmitter with 3 pressure ranges is one of the quality pressure transmitters made in Germany, which is suitable for measuring the pressure of all kinds of liquids and gases compatible with 304 stainless steel.
The HOT series piezoresistive sensor element is produced with the latest ASIC technology, which provides excellent performance, long-term stability, and various types of output signals for this series of pressure transmitters. In the main structure of this pressure transmitter, no silicone oil and internal sealing gaskets are used, and the pressure measurement reference is a gauge (atmospheric pressure).
Applications of Hogller transmitter High pressure HOD series 3 pressure ranges
- Cutting using a waterjet
- automobile industry
- High-pressure pasteurization
- High-pressure washing
- Industrial hydraulics
- Hydroforming
- Cold forming of metals
- Testing and laboratory processes
Features of Hogller transmitter High pressure HOD series 3 pressure ranges
- Pressure transmitter
- Fluid temperature range: up to -40-125 degrees Celsius
- Pressure measurement range: 0~4000 bar
- Connection size: "G 3/8".
- Connection type: threaded
- The output signal range is 4~20 mA
- High electromagnetic compatibility
- Strong and robust design made of stainless steel
- Pressure measurement reference: gauge
- Piezoresistive sensor element
- High resistance to shock and vibration
- Error percentage: less than 1.0% FS
- Electrical connection: DIN EN 175301-803 C
- Protection standard: IP 65

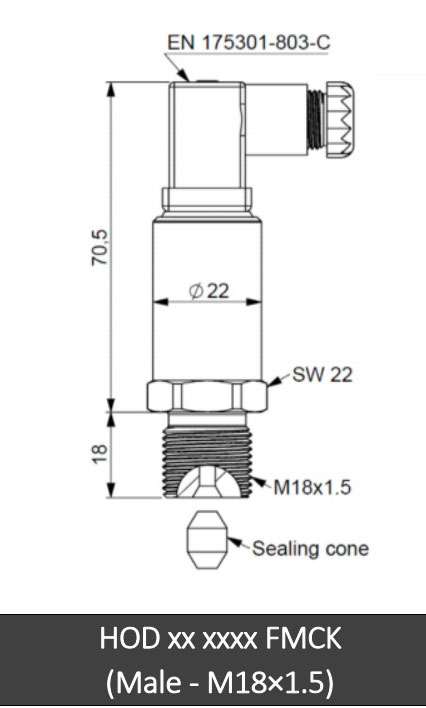

Dimensions of Hogller transmitter High pressure HOD series 3 pressure ranges
Warranty and after-sales services of Hogller transmitter High pressure HOD series 3 pressure ranges
DamaTajhiz company confirms the authenticity and physical health of the Hogller HOD series industrial pressure transmitter.
On the reference website and store of DamaTajhiz, the possibility of buying pressure transmitters has been provided for you, dear customers, in order to create a good feeling of optimal and smart shopping of Transmitter.
