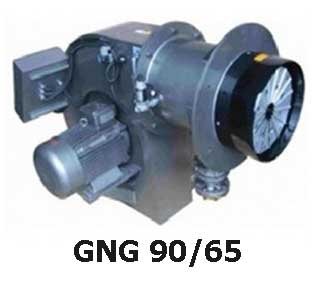

GarmIran gas burner model GNG-90/65

Guide to choosing and buying GarmIran gas burner model GNG-90/65

Garm Iran Company, one of the heating equipment manufacturers, can be considered one of the first burner manufacturers in the country, and the beginning of this company's production of torches dates back to the early 1360s.
Any possible change in the price of GarmIran gas burners will be announced at the time of purchase inquiry. In general, when choosing a burner, in addition to the need to pay attention to the type of burner fuel, it is necessary for various reasons that the capacity of the burner is about 20% more than the capacity of the boiler or combustion chamber. be considered a heater.
When choosing GarmIran gas burner model GNG-90/65, pay attention to the diameter of the flame tube of the burner for the possibility of entering the above tube in the boiler and the possibility of installing the burner in the body of the boiler.

Features of GarmIran gas burner model GNG-90/65

• GarmIran gas burners from the 800,000 kcal model and above have electrical panels.
• By dividing the maximum heating power of gas burners by the number 9,200, the maximum gas consumption of the burner is obtained in terms of cubic meters per hour.
• Installing a gas filter with the right size and working pressure after the quarter-round gas valve and before the gas regulator and the electric shock or gradual burner gas valves is one of the first pieces of equipment required for the gas line in gas burners.
• If the pressure of the gas supply line for the burner is 2 pounds, it is necessary to use a balancer to adjust and balance the small changes in the gas pressure of the gas burner with the required size and flow rate of the burner gas at the beginning of the gas line. Also, if the burner gas pressure is higher than 2 pounds (15 or 30 to a maximum of 60 pounds), it is necessary to install a gas regulator with the appropriate size, working pressure, and gas flow at the beginning of the burner gas line.
• In all gas burners manufactured by GarmIran, it is possible to install a butterfly valve and also connect to the BMS system.
• To view the latest prices and technical specifications of GarmIran gas burners, click on the price and technical specifications section on this page.

 On the Damatajhiz website, you can find and buy the burner that is suitable for your environment.

Gas burner performance

• The gas burner is designed for the combustion of natural gas, and the volume or flow rate of gas required in these burners, after passing through the gas filter is controlled by an electric valve, and the air required for their combustion is provided by a blower installed on the engine shaft. becomes
• The flow rate of the incoming air is controlled by the air damper installed in the burner body, based on its capacity manually or by the motor.
• The gas stream passes through a filter, mixes with combustion air, and is ready for combustion. If the combustion air pressure is lower than a certain limit or the gas pressure is higher or lower than the desired value, this issue is sensed by the built-in pressure sensors and the burner is turned off by pressing the air and gas switches through the relay command.
• In terms of performance, gas burners are divided into types with a blower or fan, as well as types without a fan (no sound). The burners used in apartment packages are gas burners without blower and silent.

Burner fuel and air adjustment

• The complete combustion of fuel is the result of adjusting the precise mixing ratio of fuel and air. The more accurately this ratio is set, the higher the combustion efficiency of the burner, and as a result, less fuel is needed. In small burners, the air required for combustion is adjusted by a manual damper, but in large burners, this adjustment is provided with the help of an automatic damper. Of course, due to the fact that the air temperature of the engine room boiler and its humidity varies throughout the year, in large burners, the air damper must be reset every season. Today, modern burners are equipped with an intelligent PLC control system that automatically adjusts the ratio between fuel and air throughout the day and night and all seasons of the year.
• Due to the incompleteness of fuel combustion efficiency in burners and taking into account some heat losses, when choosing a burner, we consider the capacity of the burner to be about 20% more than the capacity of the boiler.
• For every 300 meters increase in height from the surface or due to the decrease in air concentration, the fuel combustion efficiency of all types of burners decreases by about 4%.
• The calorific value of each cubic meter of natural gas is approximately equivalent to 9200 K.cal.
• In GarmIran gas burners, it is possible to change the main parts based on the customer's taste and needs within the required standards.

GarmIran gas burner model GNG-90/65 warranty

GarmIran gas burner, model GNG-90/65, has a 1-year warranty from GarmIran Company. Technical specifications and guaranteed prices are available on the reference website and store of Damatajhiz. All kinds of burners, with original warranty, have been presented to you, dear customers, in order to create a good feeling of optimal and smart shopping.
