Honeywell three-way brass motor valve 1/2"

Guide for selecting and buying Honeywell brass three-way motor valve 1/2"

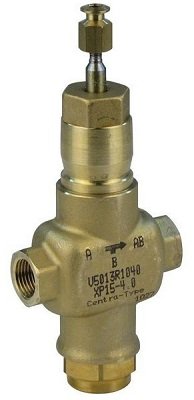

Honeywell three-way brass motor valve 1/2" is a model motor valve with brass mixer function with 1/2 inch gear connections and 16 bar working pressure (PN16), which is accompanied by a suitable electric actuator to control hot water flow. And cold is used in air conditioning systems such as chillers and heating systems. Honeywell three-way brass motor valve 1/2" has a mixing function (mixing) so that the valve output is a combination of two different inputs (A and B).

Characteristics of Honeywell brass three-way motor valve 1/2"

• Valve type: three-way mix
• Valve type: brass
• Connection type: gear
• Movement rate: 20mm
• Leakage rate less than 0.05%
• Current coefficient: 4Kv
• Closing pressure with a 600 Nm engine is 1600 kPa
• This model does not operate with an 1800 Nm engine
• The maximum temperature difference between use with hot and cold water is 60 K
• Application of Honeywell "1/2" brass three-way motor valve in heating, air conditioning, and hot and cold water systems

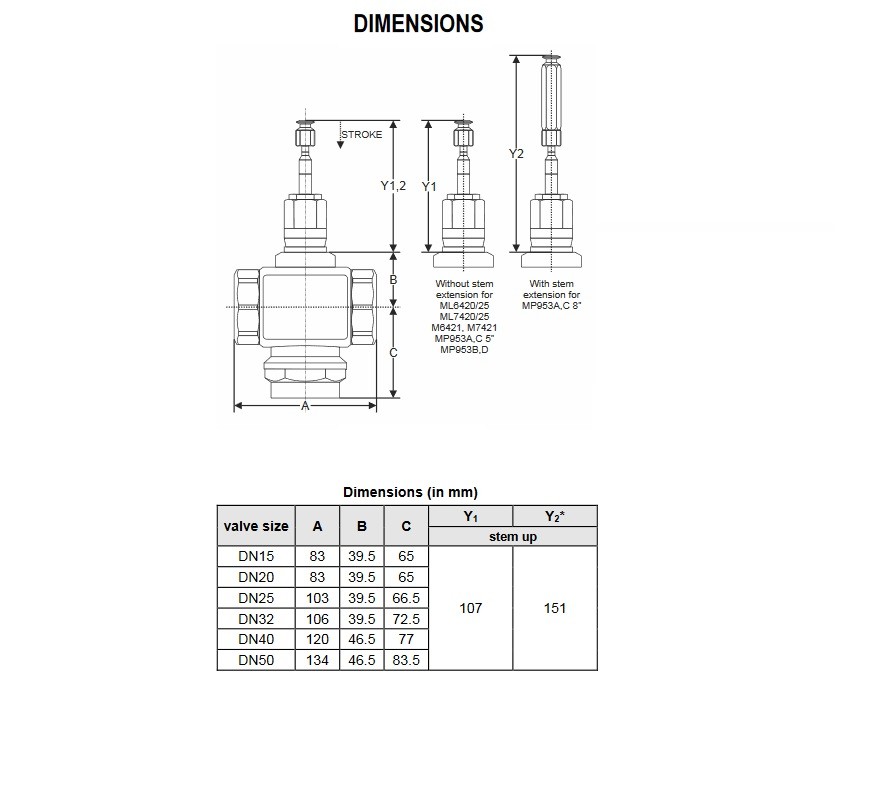

• Dimensions 83 * 211.5 mm (the bar is in the bottom position)
• Dimensions 83 * 255.5 mm (bar is in top position)
• Honeywell motors used with 1/2 "Honeywell brass three-way motor valve: ML6420 - ML6425 - ML7420 -ML7425 - ML6421 - M7421 - ML6984 - ML7984
• Can be used in heating, air conditioning, and hot and cold water systems
• Requires electrical actuators, controllers, transformers, and sensors

The originality of Honeywell brass three-way motor valve 1/2"

The company certifies the authenticity and physical health of the German Honeywell three-way motor valves.
In the reference site and Domatjahiz store, all kinds of Honeywell original valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
