Honeywell three-way brass motor valve 1 1/2"

Guide for buying Honeywell brass three-way motor valve 1 1/2"

Honeywell three-way brass motor valve 1 1/2" is a model motor valve with brass mixer function with 1 1/2 inch size gear connections and 16 bar working pressure (PN16), which is accompanied by a suitable electric actuator to control water flow. Hot and cold are used in air conditioning systems such as chillers and heating systems. Honeywell brass three-way motor valve "1 1/2", has a mixing function (mixing) so that the valve output is a combination of two different inputs (A and B).

Characteristics of Honeywell brass three-way motor valve 1 1/2"

• Valve type: three-way mix
• Valve type: brass
• Connection type: gear
• Movement rate: 20mm
• Leakage rate less than 0.05%
• Current coefficient: 10Kv
• Closing pressure with 600 Nm motor 1000 kPa
• Closing pressure with 1800 Nm engine 1600 kPa
• The maximum temperature difference between use with hot and cold water is 60 K
• Application of Honeywell gear motor three-way valve in heating, air conditioning, and hot and cold water systems

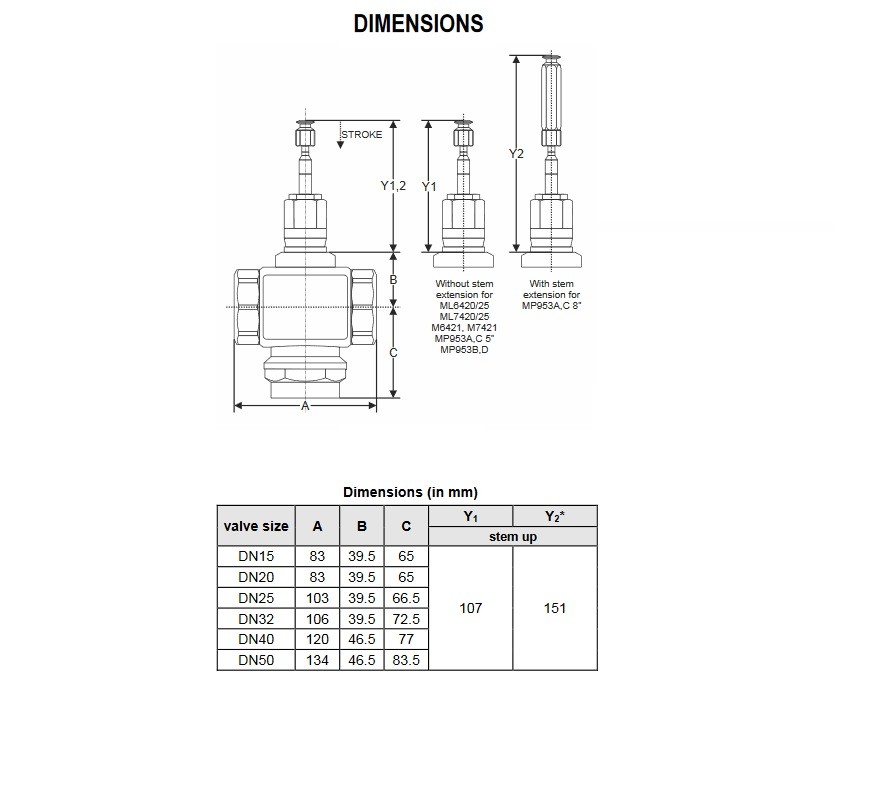

• Dimensions 103 * 213 mm (the bar is at the bottom)
• Dimensions 103 * 257 mm (the bar is in the top position)
• Honeywell motors used with Honeywell "1 brass three-way motorized valve: ML6420 - ML6425 - ML7420 --ML7425 - ML6421 - M7421 - ML6984 - ML7984
• Can be used in heating, air conditioning, and hot and cold water systems
• Requires electrical actuators, controllers, transformers, and sensors

The originality of Honeywell brass three-way motor valve 1 1/2"

The company confirms the authenticity and physical health of the German Honeywell three-way motor valves.
In the reference site and Damatajhiz store, all kinds of Honeywell original motor valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
