  • Media Built-in Ceiling Fan Coil Unit MKT3-200
  • Media Built-in Ceiling Fan Coil Unit MKT3-200

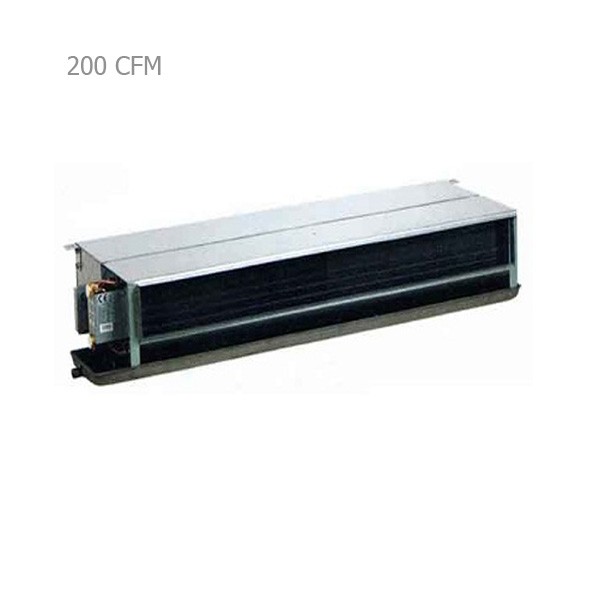

Midea Built-in Ceiling Fan Coil Unit MKT3-200

کویل 3 ردیفه با لوله های مسی 10 میلی متر دارای فن سانتریفیوژ چهار سرعته و از جنس گالوانیزه عملکرد کم صدا و آرام دارای فیلتر قابل شستشو و قابل تعویض برای مساحت حداکثر 12 متر مربع (براساس شرایط)
  1. 3-row coil with 10 mm copper pipes
  2. Has a four-speed centrifugal fan made of galvanized material
  3. Low performance and quiet
  4. Has a washable and replaceable filter
  5. For a maximum area of 12 square meters (subject to conditions)
Warranty :

12 months original warranty

Warranty terms :

12 months warranty since installation

after-sale Services :

10 years after-sale Services

inquiry

پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
0
New
View all products of میدیا (Midea)

Purchasing Guide for Midea Built-in Ceiling Fan Coil Unit MKT3-200

All Midea Built-in Ceiling Concealed Fan Coil units are equipped with a fourth-speed centrifugal fan and copper coil with a diameter of 10 mm.
The drain discharge shell and tray of Midea Built-in Ceiling Concealed Fan Coil Units are made of hard galvanized sheets.
This Fan Coil Unit is equipped with a washable and exchangeable filter.
All Midea Built-in Ceiling Concealed Fan Coil Units are provided with a one-year warranty.
Before buying a fan coil unit, the left or right side of pipes emplacement of pipes to the Fan Coil Units required for the project should be determined.

Midea Built-in Ceiling Fan Coil Unit MKT3H-200

Features of Midea Built-in Ceiling Fan Coil Unit MKT3-200

  • The possibility of installing and implementing piping on the right and left sides of the fan coil unit
  • The working pressure of 16 atmospheres (equivalent to 230 PSI) of the Midea Built-in Ceiling Fan Coil Unit enables the use of these fan coils in high-rise buildings (around 45 floors).
  • The body and centrifugal fan of the Midea fan coil unit is made of thick and strong galvanized sheet and their coil is made of copper and has a diameter of 10mm.
  • These fan coils operate quietly and are more resistant to possible shocks and temperature fluctuations thanks to the use of centrifugal fans made of galvanized sheets.
  • 45-degree air outlet angle to improve fresh air circulation
  • With a sensitive thermostat and special controllers that adjust the fan speed and have a temperature sensor that can be installed on Midea's Built-in Ceiling Fan Coil Unit.
  • Having an aluminum filter to absorb dust particles, these filters can be easily cleaned and serviced.

Determine the capacity of the Built-in Ceiling Fan Coil Unit

One of the critical points in choosing fan coils is to determine their capacity. For this you can refer to the following table:

Fan coil capacity Maximum infrastructure used
200CFM to 12 mm
300CFM to 20 mm
400CFM to 28 mm
600CFM to 40 mm
800CFM to 56 mm
1000CFM to 70 mm
1200CFM to 80 mm

Technical points of Ceiling Fan Coil Unit MKT3-200implementation

To calculate the cold water flow required for cooling the fan coil units, the total cooling load based on (BTU/h) of each building space should be divided by 5000. (or dividing kilocalories per hour by 1250) in this way, the diameter of the hot and cold water return pipes to the 200 cfm fan coils is ½ inch for 300 and 400 cfm fan coils ¾ inch for 600 and 600 fan coils 800 and 1000 cfm sizes 1 inch, and for fan coils, 1200 and channels up to 1800, ¼ 1 inch is considered.

Considering the importance of ventilation fan balance in the performance of fan coils, and its direct relationship with the lifespan of motor bearings, in order to maintain the dynamic balance of the ventilation fan of your device, always secure the perfectly horizontal and aligned installation of all types of fan coils at the installation site.

Considering the significant issue of service and maintenance in air conditioning equipment, it is necessary to install the shut-off valve for the inlet and outlet water flow from the fan coils along with the relevant tube nut (the same size as the diameter of the branch pipe).

In order to collect the water obtained from air moisture distillation on the coil of fan coil units in the summer season, it is necessary to install a ½ inch drain pipe from the tray under the coil to the place where these waters are drained for each fan coil.

Warranty of Midea Built-in Ceiling Fan Coil Unit MKT3-200

Midea Fan Coil Unit has a one-year warranty (from the time of installation and operation). On the reference site and shop of DamaTajhiz, the technical specifications and guaranteed prices of all types of Midea Built-in Ceiling Fan Coil Units, with the original warranty, have been presented to you dear ones, in order to create a positive feeling of optimal and smart shopping.
