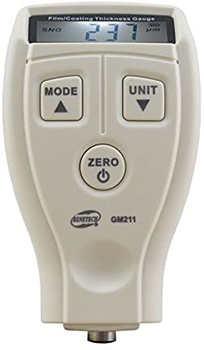

Benetech digital ultrasonic thickness gauge GM211

Guide to choosing and buying Benetech digital ultrasonic thickness gauge GM211

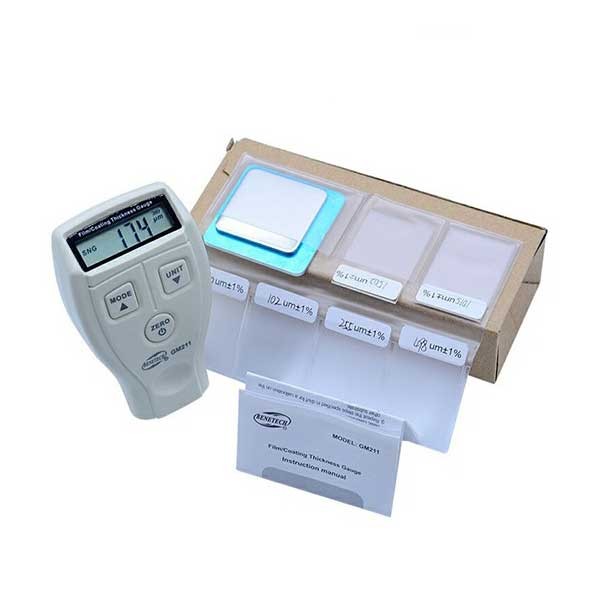

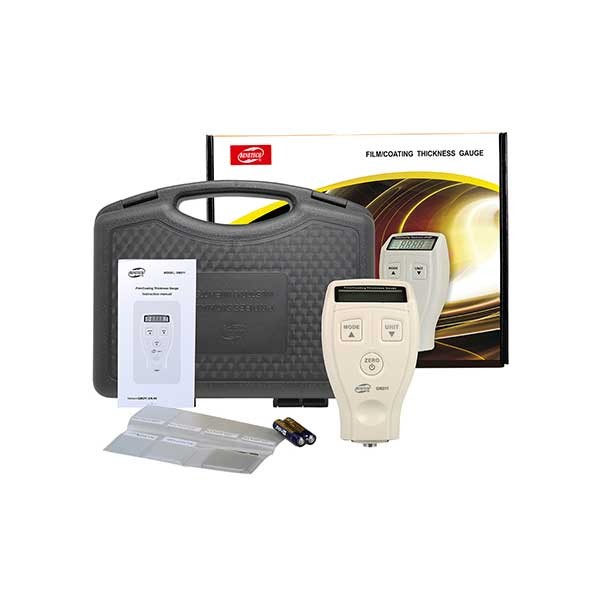

Benetech is one of the successful manufacturers of analyzers, including F-N paint and glazes thickness gauge Benetech model GM211, which relies on modern technical knowledge, experienced specialists, as well as advanced machines and equipment to produce quality products in line with the highest global quality assurance standards. do Benetech GM211 paint and glaze thickness gauge is a paint and glaze thickness gauge on magnetic F-N metals with the ability to measure 0 to 1500 micrometers, with a complete calibration foil set.
In general, a thickness gauge is a tool for measuring the thickness of paint, plating, galvanizing, anodizing, and coating thickness on wood, asphalt, concrete, etc. and in industries such as paint and resin, plating industry, aluminum anodizing industry, automobile industry, pipe coating industries. , home appliance industries, etc. are used for quality control.

Types of thickness gauges

• Thickness gauge F or FN: This type of thickness gauge is used to measure the thickness of metallic objects (Ferrous).
• N or NF thickness gauge: This type of thickness gauge is used to measure the thickness of non-ferrous objects.
• F-N thickness gauge: This type of thickness gauge is used to measure the thickness of metallic and non-metallic objects.

Features of Benetech digital ultrasonic thickness gauge GM211

• Color and glaze thickness gauge on magnetic metals F-N
• Measuring range: (0~1500) μm
• Error: ±5μm ≤150μm
• Error: (150μm ±(3%H+1μm).
• Resolution: 0.1μm(<100μm), 1μm(≥100μm)/0.1mil/0.001mm
• Power supply: 2 1.5V batteries
• Minimum diameter of magnetic metal substrate: 12 mm
• Minimum thickness of magnetic metal substrate: 0.5 mm
• The minimum radius of curvature for a magnetic convex bed: is 2 mm
• The minimum radius of curvature for a magnetic concave bed: is 11 mm
• Minimum thickness of non-magnetic metal substrate: 0.5 mm
• Minimum diameter of non-magnetic metal substrate: 50 mm

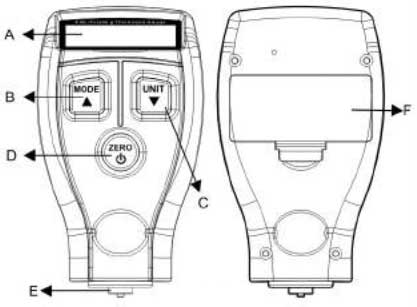

A: Display
B: Selection between measurement modes
C: Selection between measurement units
D: Power off/Calibration/Backlight settings

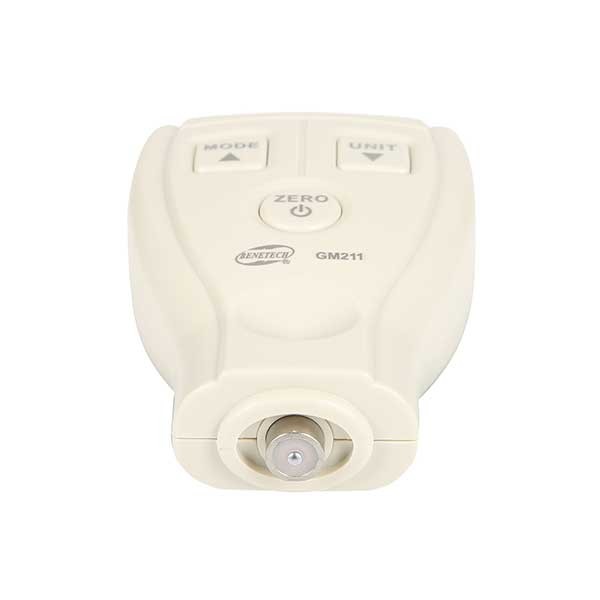

E: Prob

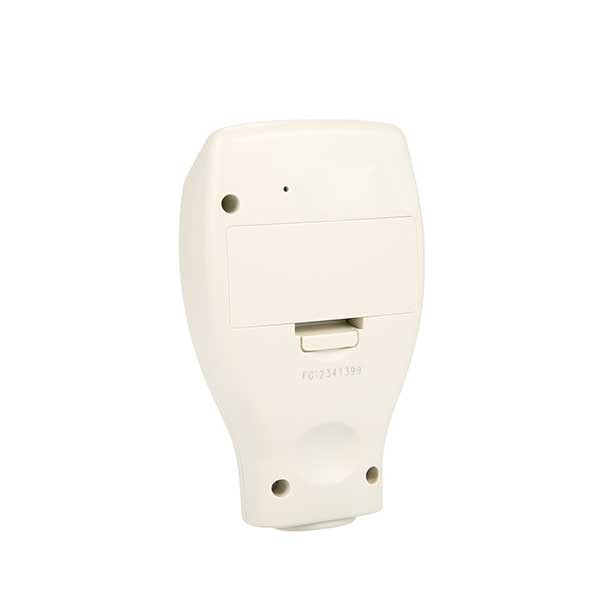

F: In the battery

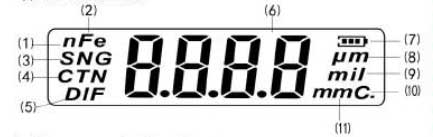

1. Non-magnetic metals
2. Magnetic metals
3. Single measurement
4. Continuous measured values
5. Differential measurement
6. Measured value
7. Battery level
8. Equivalent METRIC unit (1mm=1000μm)
9. Equivalent IMPERIC unit (1mil=0.0254mm=25.4μm)
10. In calibration mode
11. In unused condition

The originality of the Benetech digital ultrasonic thickness gauge GM211

Damatajhiz confirms the authenticity and physical health of the Benetech digital ultrasonic thickness gauge GM211.
In the reference site and store of Damatajhiz, it is possible to buy different types of differential pressure gauges, in order to create a good feeling of optimal and smart shopping Of thickness gauge, for you, dear customers.
