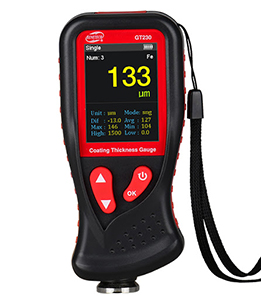

BeneTech FN professional paint thickness gauge GT230

Guide to choosing and buying BeneTech FN professional paint thickness gauge GT230

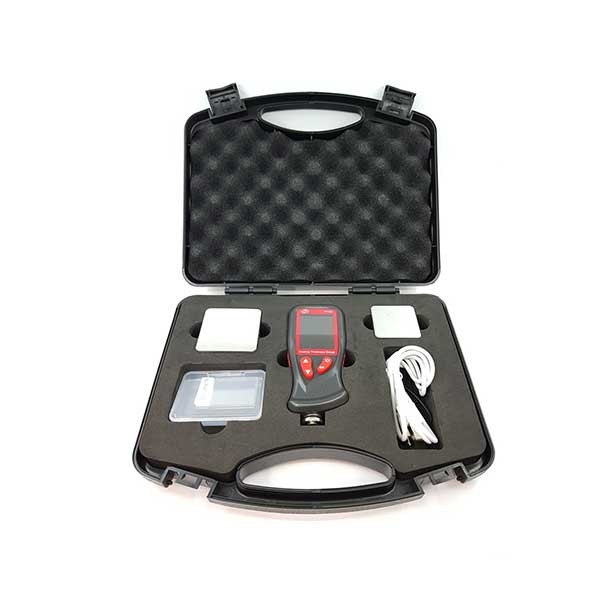

Benetech is one of the successful manufacturers of analyzers, including the FN Bentec GT230 professional paint thickness gauge, which relies on modern technical knowledge, experienced professionals, as well as advanced machines and equipment to produce quality products in line with the highest global quality assurance standards. to do FN Bentec GT230 professional paint thickness gauge is an FN professional paint thickness gauge with the ability to measure 0 to 1300 micrometers and has a rechargeable bottle, charger, and complete bag and is used to detect the thickness of car paint and... take
In general, a thickness gauge is a tool for measuring the thickness of paint, plating, galvanizing, anodizing, and coating thickness on wood, asphalt, concrete, etc. and in industries such as paint and resin, plating industry, aluminum anodizing industry, automobile industry, pipe coating industries. , home appliance industries, etc. are used for quality control.

Features of Benetech GM510 digital differential pressure gauge

• FN professional paint thickness gauge
• Measuring range: (0~1300)um/51mil
• Error: ±5μm ≤150μm
• Error: (150μm ±(3%H+1μm).
• Resolution: 0.1μm(<100μm), 1μm(≥100μm)/0.1mil
• Record 1500 data
• Display the last 10 data to facilitate the user's work
• Color and rotatable screen
• Has a rechargeable battery
• Minimum diameter of magnetic metal substrate: 12 mm
• Minimum thickness of magnetic metal substrate: 0.5 mm
• The minimum radius of curvature for a magnetic convex bed: is 2 mm
• The minimum radius of curvature for a magnetic concave bed: is 11 mm
• Minimum thickness of non-magnetic metal substrate: 0.5 mm
• Minimum diameter of non-magnetic metal substrate: 50 mm

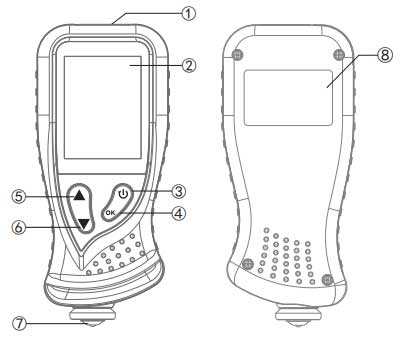

1. USB charger connector
2. Display
3. Back/off and on button
4. Confirm button
5. Up arrow button
6. Down arrow button
7. Test probe
8. Product Specifications

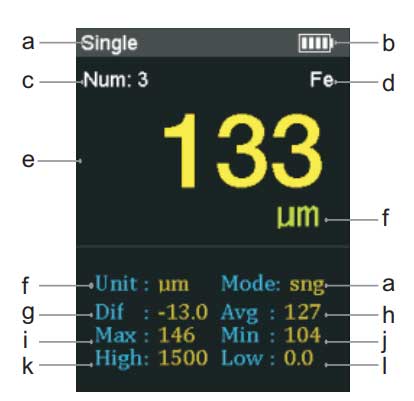

a: sng/ctn mode
b: battery level indicator
c: number of measurement values
d: state (Fe (Ferrous) / nFe (Non Ferrous
e: measured values
f: um/mil unit selection
g: difference of measurement values
h: average value
i: maximum value
j: Minimum value
k: Upper limit
l: lower limit

The originality of the Benetech GM510 digital differential pressure gauge

Damatajhiz confirms the authenticity and physical health of the BeneTech FN professional paint thickness gauge GT230.
In the reference site and store of Damatajhiz, it is possible to buy different types of differential pressure gauges to create a good feeling of optimal and smart shopping Of thickness gauge, for you, dear customers.
