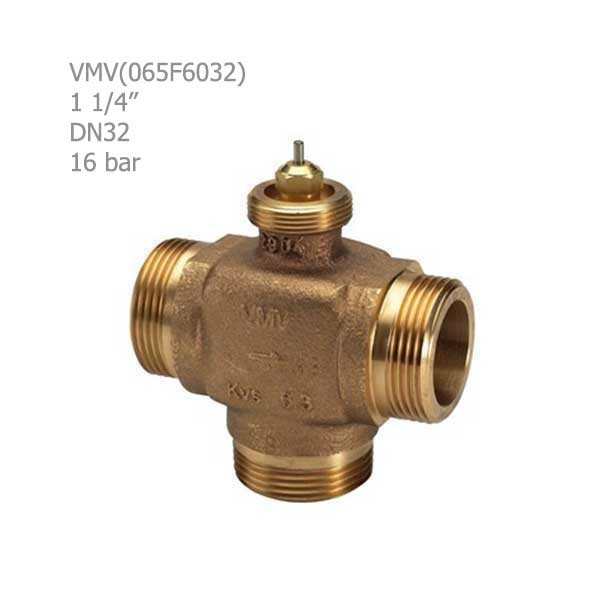

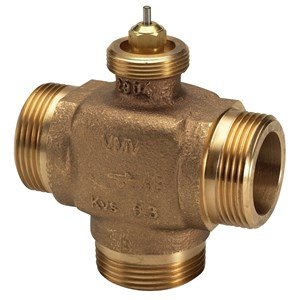

Danfoss brass three-way Motorized Valve "1/4 1
- Fluid type: water
- Flow coefficient: 10Kvs m3 / h
- Movement course: 3.1 mm
- Nominal pressure: 16 times (PN16)
- Temperature range: 2 to 120 degrees Celsius
Guidance for choosing and buying Danfoss brass three-way Motorized Valve "1/4 1
Danfoss Company is one of the successful manufacturers of safety control equipment, including Danfoss brass three-way motor valve "1/4 1", which relies on modern European technical knowledge, experienced specialists, as well as advanced machinery and equipment, quality products and in line with the highest standards. Produces quality assurance in Europe. Danfoss brass three-way motor valve "1/4 1 model" (VMV (065F6032) is a motor valve with threaded connection and is used in heating and cooling systems and fan coils. This motor valve is capable of It works in two forms: mixer (MIXING) and separator (DIVERTING).
Features of Danfoss brass three-way Motorized Valve "1/4 1
- Threaded connection
- Nominal pressure: 16 times
- Temperature range of the piece: 120 ~ 2 degrees Celsius
- Body Material: Red Bronze, No. 2.1096.1 (RG5)
- Milk cone material: EPDM
- Safe choice - high performance
- Has a variety of international approvals
Performance of Danfoss brass three-way Motorized Valve "1/4 1

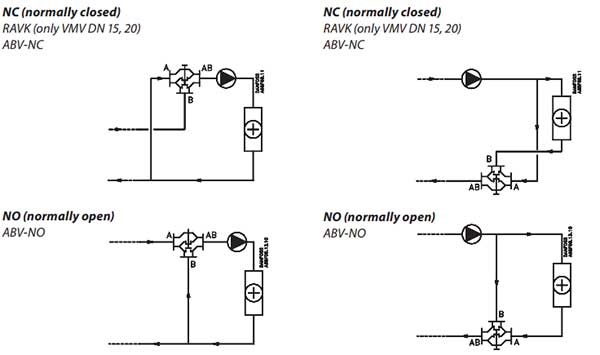

As you can see in the figure below, the VMV series of Danfoss motor valves will have a diuretic or separator function if installed in the return path and a mixer or mixer function if installed in the return path.
Warranty and authenticity of Danfoss brass three-way Motorized Valve "1/4 1
The company approves the originality and physical health of the Danfoss brass three-way Motorized Valve "1/4 1.
In the reference site and Domatjahiz store, various types of motorized valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
