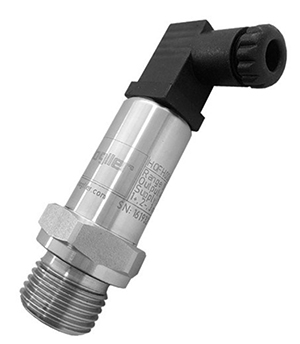

Hogller transmitter diaphragm pressure 1" HOF series 10 pressure ranges

Guide to buying Hogller transmitter diaphragm pressure 1" HOF series

The HOF series Hagler pressure transmitter is one of the diaphragm pressure transmitters with a robust and compact design that ranges
It covers a wide range of applications with high accuracy. The diaphragm of this series is made of stainless steel and is compatible with many standard fluids used in hydraulic, pneumatic, environmental engineering, process technology, semiconductor technology and
Used in automotive engineering, it is compatible. All HOF series pressure transmitters are separately tested for temperature and pressure (according to DIN EN ISO 9001:2008) during the production process. Due to electronic compensation and adjustment, these pressure transmitters are characterized by a very low total error and excellent long-term stability, and the measured data is accurately recorded and processed. By using a permanent magnet, the zero point can be set easily and reliably at any time.

Applications of Hogller transmitter diaphragm pressure 1" HOF series 10 pressure ranges

• Fluids containing suspended solid particles
• Pasty, sticky, and high viscosity fluids
• Corroding fluids
• Food and beverage industry
• Pump control
• Hydraulic applications
• Environmental processes
• water refinery
• Measuring the level of tanks

Features of Hogller transmitter diaphragm pressure 1" HOF series 10 pressure ranges

• Pressure transmitter
• Fluid temperature range: up to -20-100 degrees Celsius
• Pressure measurement range: 0~100 bar
• Connection size: "G 1
• Connection type: threaded
• The output signal range is 4~20 mA
• High electromagnetic compatibility
• It has a flash diaphragm made of stainless steel
• Pressure measurement reference: gauge
• High resistance to shock and vibration
• Ability to adjust zero point (offset
• Error percentage: less than 0.35% BFSL
• Electrical connection: DIN EN 175301-803 C
• Protection standard: IP 65

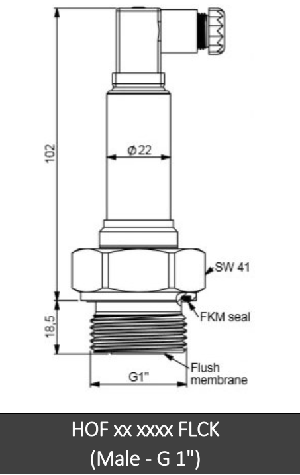

Dimensions of Hogller transmitter diaphragm pressure 1" HOF series 10 pressure ranges

Warranty and after-sales services of Hogller transmitter diaphragm pressure 1" HOF series 10 pressure ranges

DamaTajhiz company confirms the authenticity and physical health of the Hogller HOF series industrial pressure transmitter.
On the reference website and store of DamaTajhiz, the possibility of buying pressure transmitters has been provided for you, dear customers, in order to create a good feeling of optimal and smart shopping of Transmitter.
