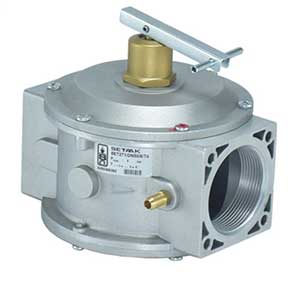

SETAAK Gas gear lever manual valve "1/2 1 Model SET271
- Working pressure: up to 6 bar
- Operating temperature range: 15- to 60 degrees Celsius
- Uses: Gas line burner
- Country of manufacture: Iran
Guidance for choosing and buying SETAAK Gas gear lever manual valve "1/2 1 Model SET271
Stock Company is an Iranian company and knowledge-based company and one of the successful manufacturers of safety control valve equipment, including the gas lever hand valve "1/2 1", model SET271, which relies on up-to-date technical knowledge, experienced specialists, as well as advanced machinery and equipment. Produces quality products in line with the highest global quality assurance standards.SET271 gas lever hand valve allows the flow of fluid inside the pipe to be connected and connected manually. According to the mechanism used in this valve, the ratio Spherical ball valves do this faster and easier.
If the valve outlet has not yet been blocked by other gas line controls or has been dismantled due to maintenance, the internal structure of the valve is such that it is proportional to the inlet pressure to resist opening, which can be considered a safety feature. named.
Features of SETAAK Gas gear lever manual valve "1/2 1 Model SET271
- General requirements in accordance with the national standard of Iran INSO 22107
- Classification of gas supply force: B, according to paragraph 3-8 of the national standard ISIRI 6800
- Strength group: 2
- Temperature range - 15 to 60 degrees Celsius
- Type of gas: natural gas, liquefied gas, city gas, air
- Connection thread: " DN40 (1 1/2 - in accordance with 10226 EN and 1-7 ISO
- Maximum inlet pressure P1: up to 6 bar

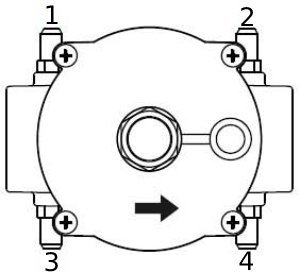

Schematic view (from above) of SETAAK Gas gear lever manual valve "1/2 1 Model SET271
As you can see in the figure below, the VMV series of Danfoss motor valves will have a diuretic or separator function if installed in the return path and a mixer or mixer function if installed in the return path.
Warranty and authenticity of SETAAK Gas gear lever manual valve "1/2 1 Model SET271
The company approves the originality and physical health of the SETAAK Gas gear lever manual valve "1/2 1 Model SET271.
In the reference site and DamaTajhiz store, various types of motorized valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase.
