Madas gear gas balancer 1 1/2" model RG/2MC

Guide to choosing and buying Madas gear gas balancer 1 1/2" model RG/2MC

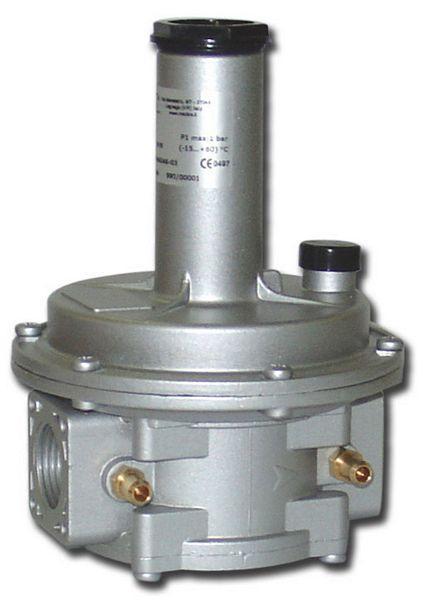

Madas gas gear balancer size 1 1/2" RG/2MC model is a device that provides the required pressure at the bottom of the piping circuit (it means a set of equipment installed before the main regulator).

The balancer is responsible for providing the input pressure value of the main regulator whose task is to adjust the pressure of the piping circuit.

Features of Madas gear gas balancer size 1 1/2" RG/2MC model

• The operating temperature of these gas balancers is from -15 to 60 degrees Celsius.
• The working pressure of these devices is 1~2 bar and their output pressure is 40~60 mbar.
• The above balancers must be installed in-line (straight), and it is not recommended to install them upside down and with a 90 degree rotation.

How to place Madas gear gas balancer size 1 1/2" RG/2MC model in piping circuit

Madas RG/2MC model balancers should be placed in the piping circuit as follows:

The various components of the system are as follows

1 - Manual valve reset regulator

2 - On/Off valve to turn SM off and on

3 - FM gas filter

4 - Shut-off valve MVB/1 Max

5 - RG/2MC balancer regulator

6 - Safety valve MVS/1

7 - Button and pressure gauge

8 - outlet valve

9 - Ball valve

10 - Gas detector

11 - SM remote valve on and off

12 - Seismic base and extension connection

The components of Madas gear gas balancer 1 1/2" model RG/2MC

1 - Close the lid

2 - Inlet pressure adjustment screw

3 - Calibration spring (adjustment)

4 - Upper cover

5 - Ribbed washer

6 - Dust cap

7 - Immunity membrane (membranes).

8 - Flange

9 - Working membrane or shell (membranes).

10 - central pin

11 - Body

12 - Sensor tube

13 - Pressure test button

14 - Teflon ring

15 - Sealing washer

16 - lower cover

17 - lower cover screw

18 - Sealing o-ring of the lower cover

19 - Carrier

20 - Replaceable membrane (membranes).

21 - Filter element

22 - disk above the membrane

23 - Upper cover screws

24 - lower disk of the membrane

25 - Membrane holder nut

26 - spring washer

Dimensions of Madas gear gas balancer 1 1/2" model RG/2MC

A: Equivalent to 160 mm

B: Equivalent to 242 mm

C: Equivalent to 225 mm

D: Equivalent to 48.5 mm

E: 193.5 mm . equivalent

Guarantee and originality of Madas gear gas balancer 1 1/2" model RG/2MC

Damatajhiz company confirms the physical health and authenticity of the above gas balancer.
In the reference site and shop of Damatajhiz, it is possible to buy Madas gas balancer (MADAS), with guaranteed price and original warranty, for you, dear customers, in order to create a good feeling of optimal and smart shopping.
