Thermometer Manometer TG Plate 8 CM Horizontally

نوع: آنالوگ خشک (اتصال از پشت) محدوده اندازه گیری دما (سانتیگراد): 120+~0 محدوده اندازه گیری فشار (بار): 4~0 / 6~0 / 10~0 / 16~0 نوع سنسور دما: بی متال (Bi-metal Coil) مناسب جهت سنجش دما و فشار دیگ‌های آب گرم
  • Type: dry analog (connection from the back)
  • Temperature measurement range (Celsius): 0~120+
  • Pressure measurement range (bar): 0~4 / 0~6 / 10~0 / 16~0
  • Type of temperature sensor: Bi-metal Coil
  • Suitable for measuring the temperature and pressure of hot water boilers
inquiry
Tax excluded
Select the temperature measurement range (C°)
Select pressure measurement range
Quantity
Product available with different options

پرداخت اقساطی پرداخت اقساطی

مجموعه دمـاتجهیــز امکان خرید اقساطی کالاهای سایت را فراهم نموده است. فرایند خرید اقساطی از این روش طی مدت ۱۰ الی ۱۵ روز انجام می شود و...
اطلاعات بیشتر و ثبت سفارش >
0
New
View all products of تی جی (TG)

Purchasing Guide for Thermometer Manometer TG Plate 8 CM Horizontally

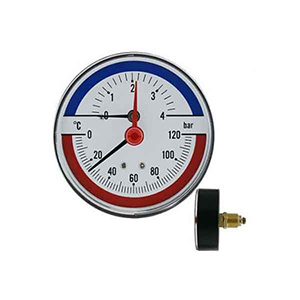

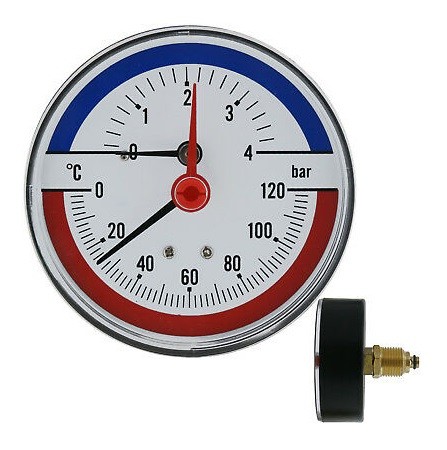

Thermometer Manometer TG Plate 8 CM Horizontally is a vertical 8cm TG manometer thermometer model, which is designed and produced to measure the temperature and pressure of hot water boilers.
In general, thermometers and manometers are a type of combined gauges (Combined Gauges) for simultaneous measurement of temperature and pressure in various industries and central heating systems and engine rooms, which have two different ratings, one for measuring temperature and the other for measuring pressure. TG manometer thermometer TG 8 cm vertical plate has a bar rating for pressure measurement and a Celsius rating for system temperature measurement.

Thermometer Manometer TG Plate 8 CM Horizontally

Features of Thermometer Manometer TG Plate 8 CM Horizontally

  • Type: dry vertical analog
  • It has a plate with a diameter of 8 cm
  • Connection type: from the back
  • Connection size: 1/2 inch
  • Connection material: brass
  • Temperature measurement range in Celsius: 0~120+
  • Pressure measurement range according to load: 0~4 / 0~6 / 10~0 / 16~0
  • Tail length: 6 cm
  • Body material: steel
  • Type of temperature sensor: Bi-Metal Coil

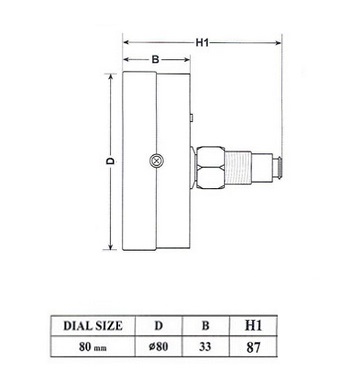

Dimensions of Thermometer Manometer TG Plate 8 CM Horizontally

Thermometer Manometer TG Plate 8 CM Horizontally - dimensions

Warranty of Thermometer Manometer TG Plate 8 CM Horizontally

The company confirms the authenticity and physical health of the Thermometer Manometer TG Plate 8 CM Horizontally.
In the reference site and store of DamaTajhiz, all kinds of Manometers, with guaranteed prices, are provided for your dear ones, in order to create a good feeling of optimal and intelligent purchase of the Manometer.
