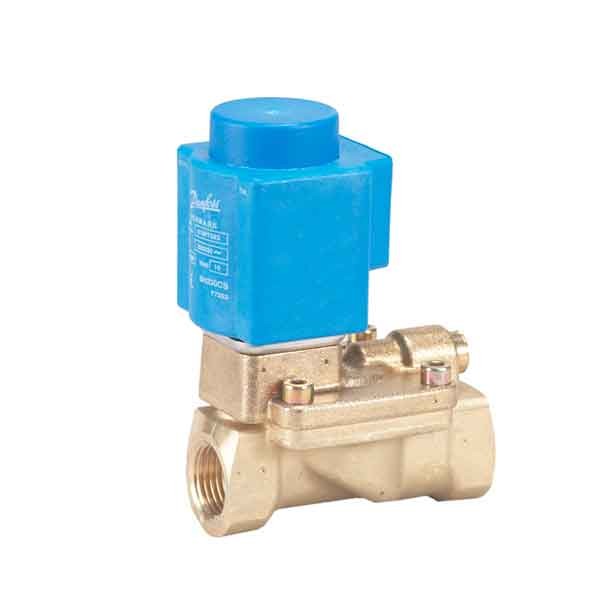

Danfoss electrical two way valve 1 1/4" 032U7134

Guidance for choosing and buying Danfoss electrical two way valve 1 1/4"

Danfoss Company, the manufacturer of Danfoss electrical two way valve 1 1/4" is one of the successful manufacturers of safety control equipment, including solenoid valves, which relies on modern European technical knowledge, experienced specialists, as well as advanced machinery and equipment for quality products. And produces in line with the highest quality assurance standards in Europe.
In general, the solenoid valve is responsible for cutting off the fluid path in case of an emergency. To do this, a signal is sent as a current to the solenoid coil and when the coil is activated, the fluid path is cut off or connected. Solenoid valves are produced in two types: Normally open (NO), Normally Open, and Normally closed (NC), which indicates the normal state of the valve.
Danfoss solenoid valves have different types of valves, including piston, diaphragm, needle, motorized, etc.
Solenoid valves are divided into two-way, three-way, and four-way according to the number of outlet and fluid inlet ducts and are displayed as 2/2, 2/3, and 2/4, the first number from the left indicates the number of valve states and The second number indicates the number of valves.
In Danfoss solenoid valves, the coil and the body are usually separated from each other and placed on top of each other with small pressure.

Features and dimensions of Danfoss electrical two way valve 1 1/2" 032U7142

• Connection size: "1/8 and" 1/4 inch
• Pressure range: 0 to 20 bar
• Application: diesel, liquid fuel
• Orifis size: 1.5 to 2.5 mm
• Body material: brass metal
• Cover material: Vuitton
• Maximum fluid temperature: 100 ° C
• Maximum ambient temperature: 55 degrees Celsius
• Instantaneous pressure (impact): 90 bar
• Coil cover: polyamide
• Working time: 100% (permanent)
• Lacquered wire insulation class: E (120 ° C)
• Insulation standard: IP65

Warranty and authenticity of Danfoss electrical two way valve 1 1/2" 032U7142

The company approves the originality and physical health of the Danfoss electrical two way valve 1 1/2" 032U7142.
In the reference site and DamaTajhiz store, various types of motorized valves have been provided for you, dear customers, in order to create a good feeling of optimal and smart purchase of electrical two way valve.
