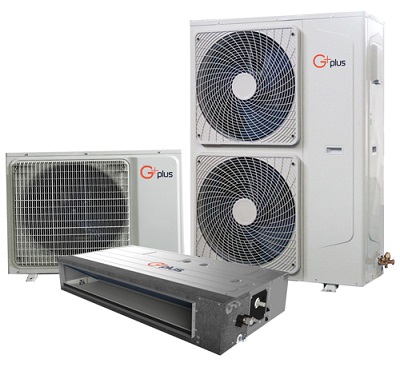

Gplus Inverter Ducted Split 48000BTU GCD-48JN8HR1

GCD-48JN8HR1 Duct Split Inverter Duct Selection and Purchase Guide

Inverter Ducted Split G Plus-GCD-48JN8HR1 is one of the newest models of Inverter Ducted Split in Iran, which is produced by a company named Goldiran under the GPlus brand and offered to domestic markets and Middle Eastern countries.

Goldiran Company produces G-Plus ducted split built-in roof products based on modern world standards and using advanced machines and quality primary parts in capacities of 2 to 5 tons of refrigeration. G-Plus built-in roof ducted splits with compact design can be installed in low-rise false ceilings.
 Inverter Ducted SplitG Plus-GCD-48JN8HR1 is one of the models of Ducted Split G Plus that with a capacity of 4 tons of refrigeration is suitable for units up to 110 square meters.

In the reference and shopping website, Damatajhiz, the technical specifications and guaranteed prices of all types of G-Plus built-in ceiling ducted splits, with the main guarantee, have been provided for dear customers to create a good feeling of optimal and smart purchase.

Features of G-Plus Ducted Split Inverter GCD-48JN8HR1

• G-Plus built-in ceiling ducted splits have the ability to control external static pressure. This feature easily adjusts the air volume via the remote control. The BLDC motor can control fan speed and air volume regardless of external static pressure. This way, no additional equipment is needed to control the airflow.
• GPlus ducted splits have an inverter compressor that maximizes energy savings by adjusting power consumption according to the device's needs.
• These devices use a corrosion-resistant heat exchanger of the Blue Fin type. The bluefins are made of aluminum and are equipped with a blue coating, which makes the aluminum coil metal resistant to corrosion. This feature makes GPlus ducted splits suitable for areas with acidic and alkaline air.
• Inverter ducted split GPlus GCD-48JN8HR1 has the ability to connect to a hot water coil to supply hot air in the cold season.
• Has a wide temperature operating range from 5- to + 49 degrees Celsius
• Equipped with digital remote control

Determining the capacity and installing the GPlus ducted split

• In order to determine the capacity and number of GPlus ducts required by the project, first, send the latest architectural plan of your building units and floors to our experts via fax or email.
• Usually when initially estimating the cooling capacity of ducted split required for each apartment in climatic conditions such as Tehran and in the middle floors of the building (which are not exposed to sunlight on the roof in summer and the cold of the roof in winter), for every 30 or 40 The total gross square meter of the apartment is considered to be about one ton of refrigeration (ducted split capacity) (per square meter of usable space is about 400 BTU / hr). Therefore, if the area of ​​each of your apartment units is more than 120 square meters, it is better to use two ducted split units for each unit. Also, keep in mind that each 12000 BTU is equivalent to one ton of refrigeration.
• For apartments up to 150 square meters, single-phase ducted splits can be used, but with 32 amp power (some brands), and there is no need to request three-phase electricity (from the electricity company).
• If your apartment units are even up to 200 square meters, you can use single-phase ducted splits using single-phase but 50 amp electricity.
• According to what our experts have heard, the builders are obliged to obtain three-phase electricity for units higher than 200 square meters according to Tavanir Company's directive.
• One of the important points in choosing duct splits is to consider their aeration volume, which is usually suitable for each ton of ducted split capacity equal to CFM 400 aeration volume. Obviously, if the volume of aeration is less, the volume of duct split will be less and if there is more aeration, the volume of duct split will be more.
• For more convenience, you can also refer to the following approximate calculation table to determine the required duct split capacity, according to the conditions and basics of the above calculations:

Note: This calculation is approximate and only for residential apartments with weather conditions such as Tehran and with a ceiling-to-floor distance of 2.8 meters, without accumulation of people and latent heat increase and without the use of high-consumption electrical equipment and also without glass facade or The glass side, especially on the west side of the space or building, is presented.

Warranty and after-sales service of inverter ducted split GPlus GCD-48KN6HR3

G-Plus inverter ducted splits have a 5-year warranty on the compressor and an 18-, month warranty on other technical parts by Goldiran Company. To see other models, compare them, and buying a ducted split that suits your demand click on the link.
