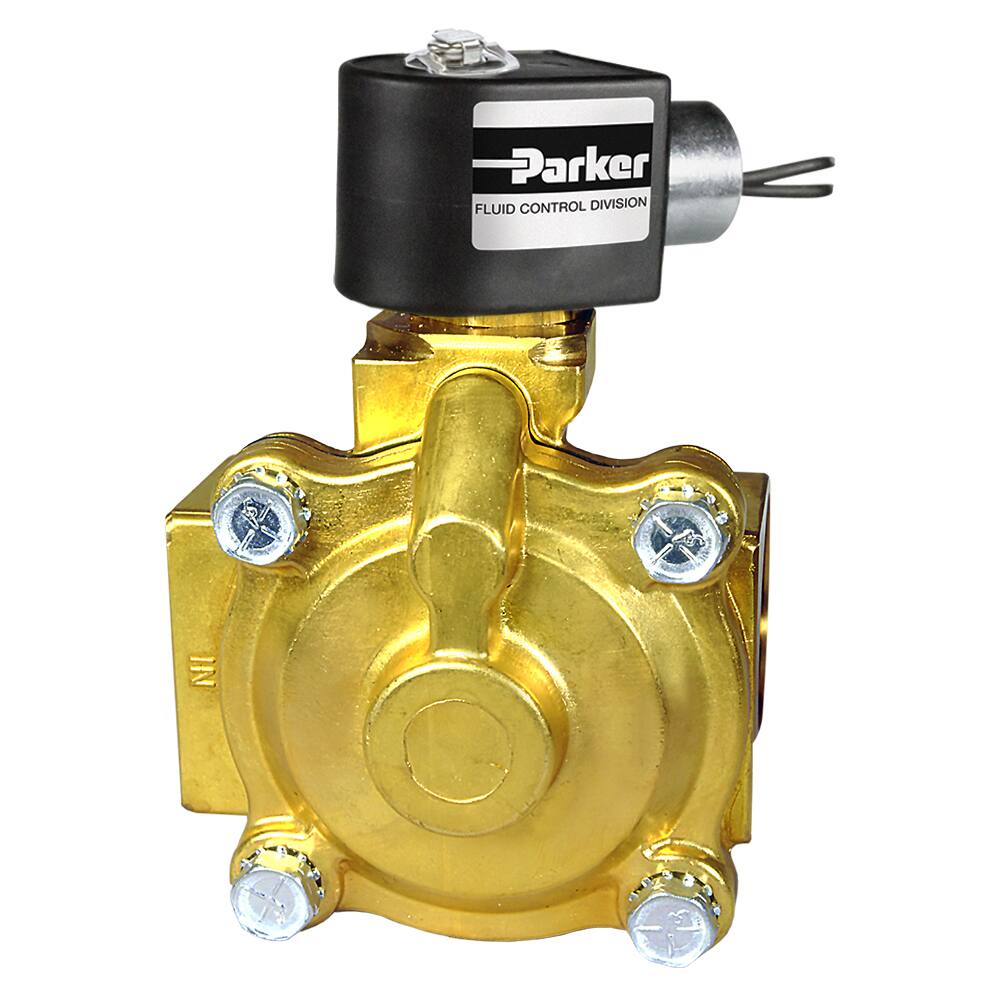

Parker water solenoid valve 7321 size "3/8

Guide to choosing and buying Parker water solenoid valve 7321 size "3/8

Parker 7321 Series's size "3/8" water solenoid valve is a type of Normally Closed and On / Off Valve and, as its name suggests, is used to pass water fluid. This product is also known as 7321BMN02 in the market and is in the category of valves. Double-sided and diaphragm, this water solenoid valve is used to pass water fluid and is not used in any way to pass fluids such as water and gas.

In general, these valves are diaphragm pilot valves and require a minimum pressure difference to operate. These products are used to control water vapor in heating piping systems.

Due to the fact that the Parker 7321 Series "3/8" water solenoid valves are of the solenoid type, they increase the reliability and functionality of the piping system and have a considerable speed of operation.

Due to the possibility of ram shock (Water Hammer) in the system, it is possible to manually change the open and closed structure of solenoid valves, regardless of the automaticity of these valves, and use the option to control the speed of the valve discharge function.

Features of Parker water solenoid valve 7321 size "3/8

• It has a body made of brass
• Ability to operate at a maximum temperature of 140 degrees Celsius
• Has a working pressure of 4 times
• Fluid permeability: 37.2m3 / Hr
• Best performance at the highest and lowest pressure differences within the system
• Unique diaphragm design for better fluid flow performance
• One of the fastest products in electrical and hydraulic applications of intelligent piping systems
• Ability to adapt to a variety of electrical devices in the piping system
• Ability to manually adjust the solenoid valve when the power supply is off
• Has a stainless steel pilot to increase the efficiency and durability of the valve
• Ease of installation, maintenance
• Can be used in air conditioning and heating pipelines
• Made in Italy

Material of components of Parker water solenoid valve 7321 size "3/8

• Body: Brass
• Spring: Steel 302
• Enclosed pipe: 304 steel
• Rivets: NBR - EPDM
• Piston: 430F steel
• Ring: Copper

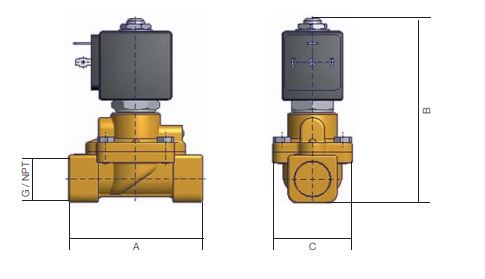

Dimensions of Parker water solenoid valve 7321 size "3/8

A: Equivalent to 173 mm

B: Equivalent to 148 mm

C: equivalent to 118 mm

Installation of Parker water solenoid valve 7321 size "3/8

Due to the two-way nature of these products, they can be installed in any direction in the piping system, however, for ease of service and opening and closing the valve, it is recommended to install this product vertically and while

Warranty and authenticity of Parker water solenoid valve 7321 size "3/8
