Unid steam solenoid valve (UNID) US series size 3/4"

Guide for purchasing UNID steam solenoid valve US series size 3/4"

Unid steam control valve (UNID) US size 3/4" is a type of Normally Closed and double valves. As the name of this product, it is used to transfer steam fluid, but it can be used to transfer light oil fluid Note that the above types of steam solenoid valves should be installed in the piping system when the piping route is clean and free of any contamination.

Features of UNID Steam Solenoid Valve US series size 3/4"

• Can be used in air conditioning and heating pipelines
• These products can be operated in the temperature range of 5- to 180 ° C; Although these valves are said to be used to pass steam and sometimes light oil, be aware that they are by no means suitable for passing liquids, especially water;
• At high temperatures, the fluid condenses on its own and turns into a liquid, and at very low temperatures the fluid state becomes solid. In this case, the possibility of liquid corrosion and damage to the piping system increases, so steam solenoid valves are not suitable for the passage of liquid fluid.
• Fluid permeability in size 3/4 of these valves is equivalent to 48 GPM.
• The working pressure of the size 3/4 unid steam solenoid valve is equal to 16 bar.
• The above valves are compatible with both alternating current (AC) and direct current (DC); If you use alternating current in your system, the power tolerance of this product is 10% and if the direct current is used, its power tolerance is 1%.
• US series solenoid valves should be installed horizontally and vertical installation is not recommended at all.

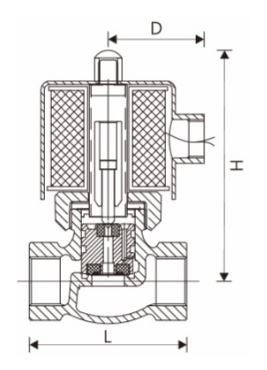

Dimensions of UNID steam solenoid valve US series size 3/4"

D: Equivalent to 58 mm

H: Equivalent to 125 mm

L: Equivalent to 82 mm

The originality of UNID steam solenoid valve (UNID) US series size 3/4"

The company approves and guarantees the protection and physical health of Unid steam solenoid valve (UNID) of US series size 3/4".

In the reference site and Damatajhiz store, all kinds of Unidi solenoid valves with guaranteed prices and the original warranty have been provided for you dear ones to create a good feeling of optimal and smart purchase.
