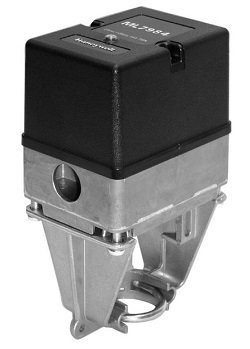

Honeywell electrical actuator gradual ML7984A4009

Guide for choosing and buying a Honeywell electrical actuator gradual ML7984A4009

Honeywell electrical actuator gradual ML7984A4009 with gradual operation is suitable for installation and operation of Honeywell two-way solenoid valves such as V5011S series and Honeywell three-way valves such as V5013R series.
The ML7984A4009 gradual Honeywell electric actuator is capable of receiving an input signal of 2 to 10 volts, 4 to 20 mm, and 135 ohms. The maximum driving speed of the Honeywell ML7984A4009 electric actuator is 19 mm and its torque (or closing force) is 710 Newtons. The power supply of this model is 24-volt AC Honeywell electric actuator with a frequency of 60-50 Hz.

Characteristics of Honeywell Electrical actuator ON/OFF ML6420A3072

• Performance status: gradual
• Torque (or closing force): 710 N
• Maximum movement course: 19 mm
• Input signal: (10-2) volts, (4-20) mA, and 135 ohms
• Power supply: 24V AC
• Frequency: (60-50) Hz
• Temperature performance range: 0 to +55 degrees Celsius
• Moisture performance range: 15 to 95%
• Valve sizing range for installation: 1/2 to 2 inches
• Approximate weight: 1.0 kg
• Security standard: IP54
• Country of manufacture: Hungary
• Can be installed on Honeywell three-way and two-way valve

The originality of the Honeywell Electrical actuator ON/OFF ML6420A3072
