Aquamarine Shell and Tube Heat Exchanger Model PHE120

Guide for selecting and purchasing Aquamarine shell and tube heat exchangers Model PHE120

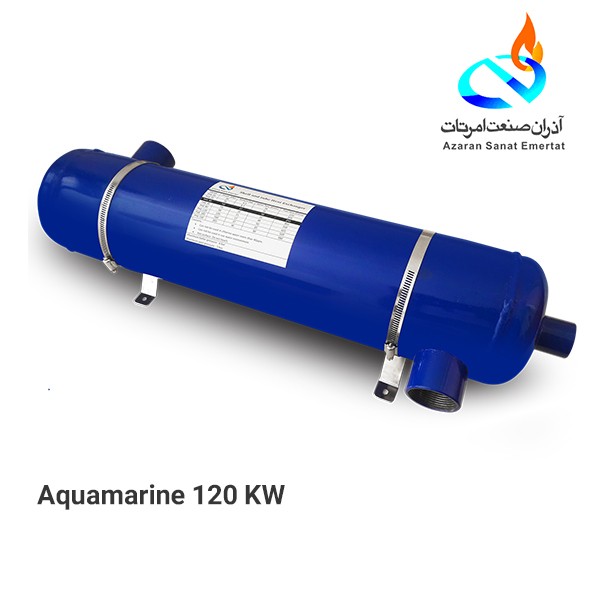

Aquamarine shell and tube heat exchanger model PHE120 is made of 304 stainless steel and has high quality and durability. These converters are mainly used in swimming pools and Jacuzzis.
Of course, according to the customer's order, Azaran Sanat Emertat Company (manufacturer of Aquamarine heat exchangers) can produce these products from titanium.

The layout of the Aquamarine shell and tube heat exchangers model PHE120 is efficient and accurate and its design is such that it can maximize the overall efficiency and effectiveness of these products.
In general, it can be said that an Aquamarine heat exchanger is a suitable and unique option for heating pool water and Jacuzzi.

Explanation of baffles used in the internal structure of Aquamarine shell and tube heat exchanger Model PHE120

Basically, stainless steel heat exchangers do not have good heat exchange efficiency compared to copper heat exchangers. For this reason, baffles (flow confounders) are placed in shell and tube heat exchangers, thus performing two main functions. The most important task is to keep the pipes in a proper place in the whole set and to prevent the vibrations caused by the vortices created by the current on the pipes.

The second task is to direct the return flow to the shell side and propel it along the tubes while increasing the Reynolds speed and number and the heat transfer coefficient.

The baffles increase the number of crosscurrents in the shell, resulting in increased heat transfer time and overall heat transfer efficiency. The baffle section should cover at least half and at most 80% of the shell, diameter to ensure that two adjacent baffles overlap by at least one row of pipes.

Aquamarine stainless steel shell and tube heat exchangers have a sufficient number of baffles in their internal structure and definitely have the best heat transfer efficiency among all stainless steel pool heat exchangers in Iran or imported in the country.

Features of Aquamarine shell and tube heat exchanger Model PHE120

• In order to ensure the accuracy and quality of these heat exchangers, all multi-stage hydrostatic tests at the time of production have been performed on these products.
• You can buy a heat exchanger that is geometrically and structurally unique in design so that maximum heat is exchanged between the boiler line and the pool line.
• Also about the compact and compact design of these heat exchangers can be said to occupy the least possible space.
• Heat exchange efficiency in the above converters is very high, thus saving fuel consumption.

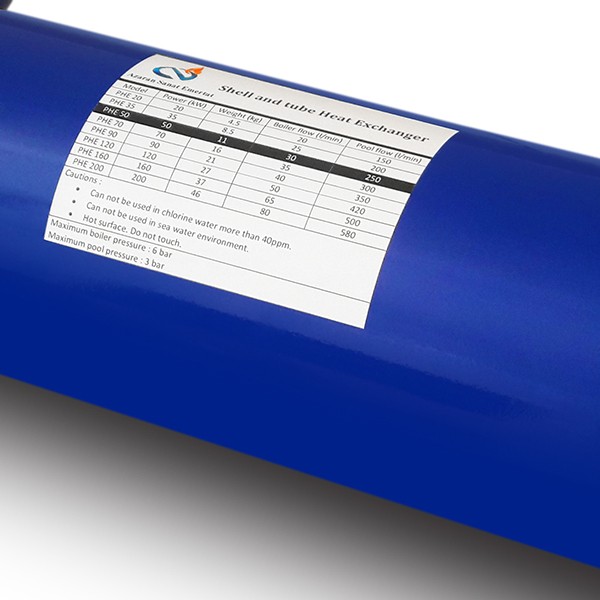

• One of the strengths of these products is the variety in their capacity; The above converters are produced in capacities of 20 to 200 kW.

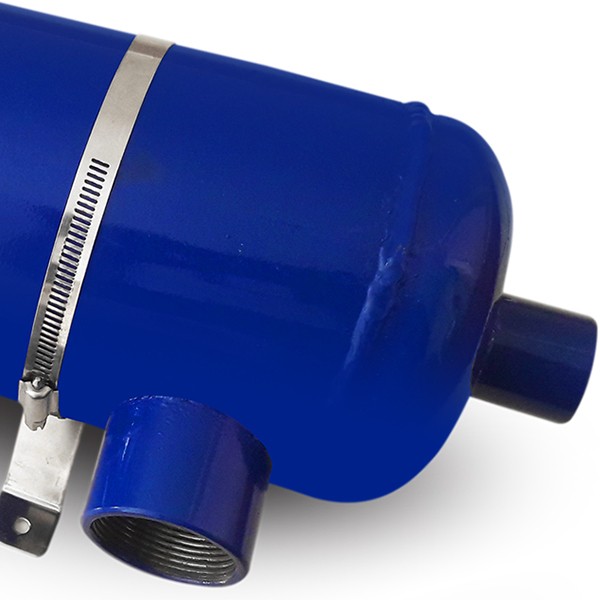

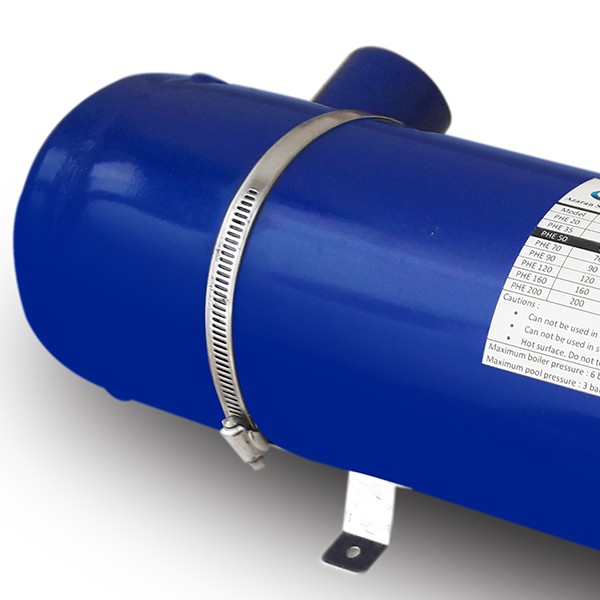

• The above products have two clamps and a support base to control the weight of the converter full of water.
• Aquamarine shell and tube heat exchanger model PHE120 is coated with electrostatic powder paint, this coating makes the appearance and of course the durability of the converters high.
• Dimensions (outer diameter, final length): 14.4 * 36 cm
• The maximum operating pressure of the boiler line converter is 5
• The maximum operating pressure of the pool line converter is 5
• To see the price of the pool converter and more information to buy an Aquamarine heat exchanger, click on the price and technical specifications on this page.

Warranty of Aquamarine shell and tube heat exchanger Model PHE120

Aquamarine converters have a 1-year warranty (from the time of installation).

Also, the after-sales service period of these products is 10 years.

An Aquamarine shell and tube heat exchanger is produced by Azaran Sanat Emertat Company. The company is also a manufacturer of Emerald pool heating packages.
